Rear Brake Pad, Brake Caliper & Brake Rotor: Components

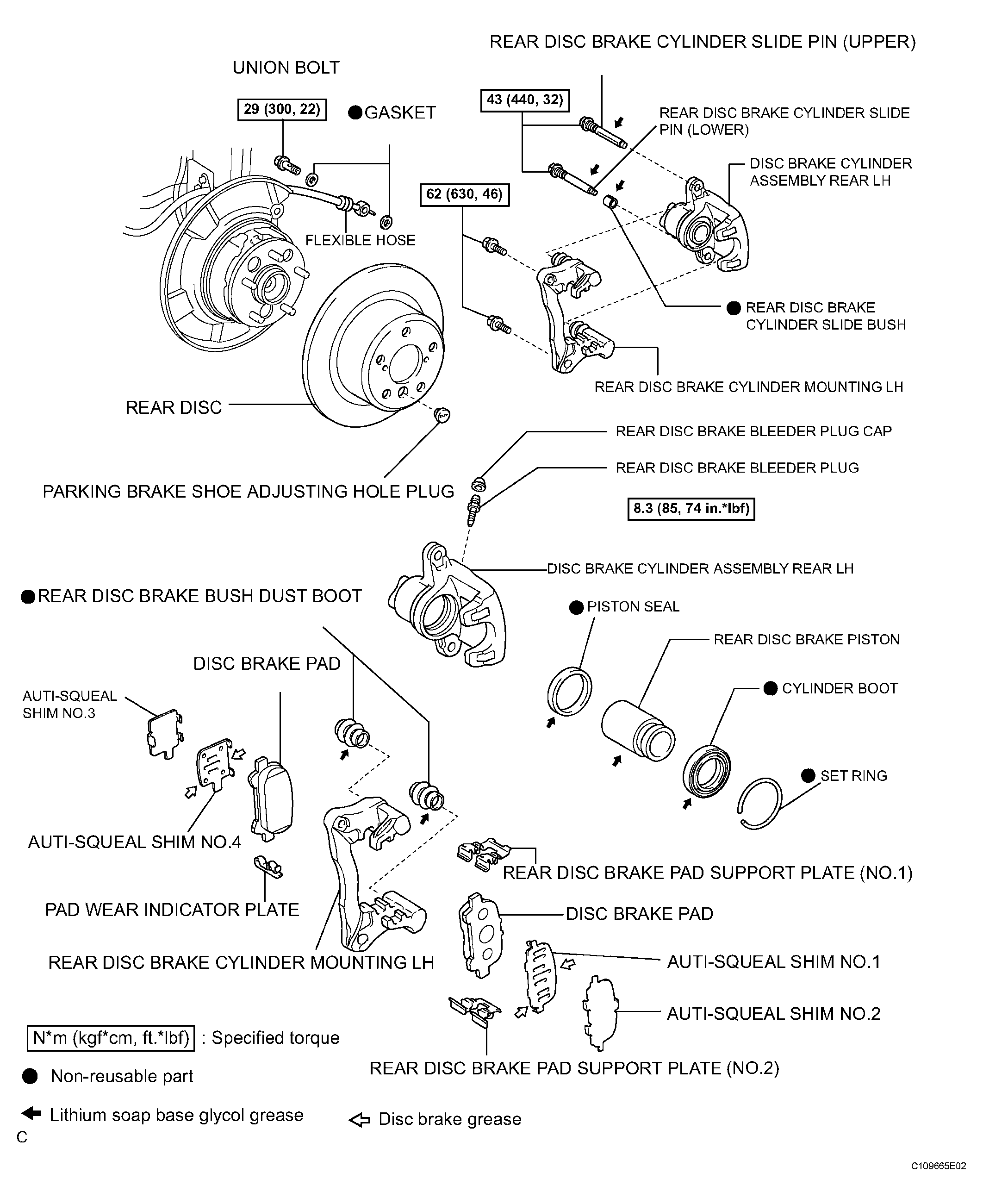

Fig 1: Rear Brake Replacement Components With Torque Specifications

G04375579

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
