Brake Master Cylinder: Installation

  1. INSTALL BRAKE MASTER WITH PLATE CYLINDER SUB-ASSEMBLY
    1. Install the master cylinder sub-assembly and 2-way with the 2 nuts.

      Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

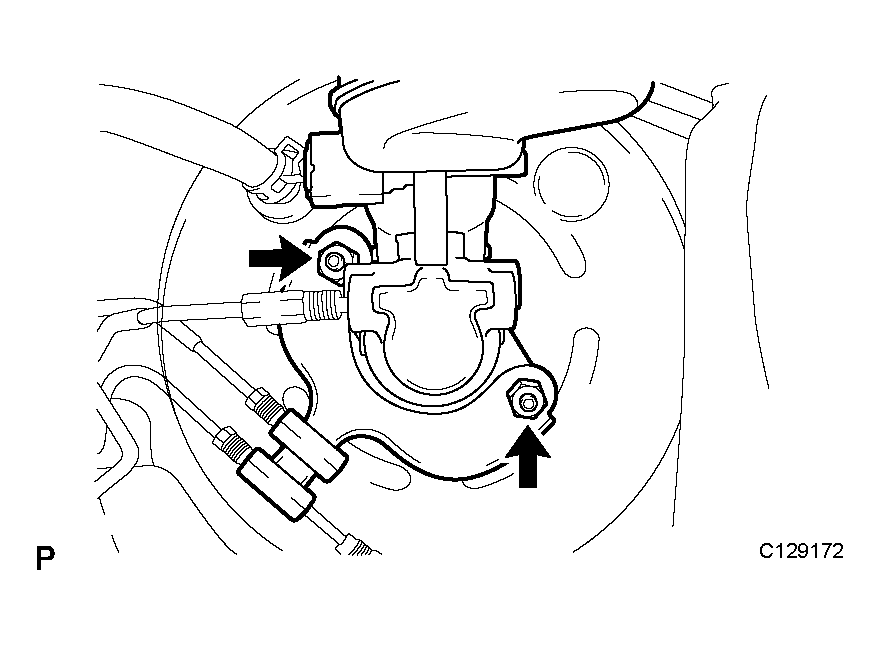

      Fig 1: Installing Master Cylinder Sub-Assembly And Way With Nuts
      G04375538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, connect the 6 brake tubes to the master cylinder sub-assembly.

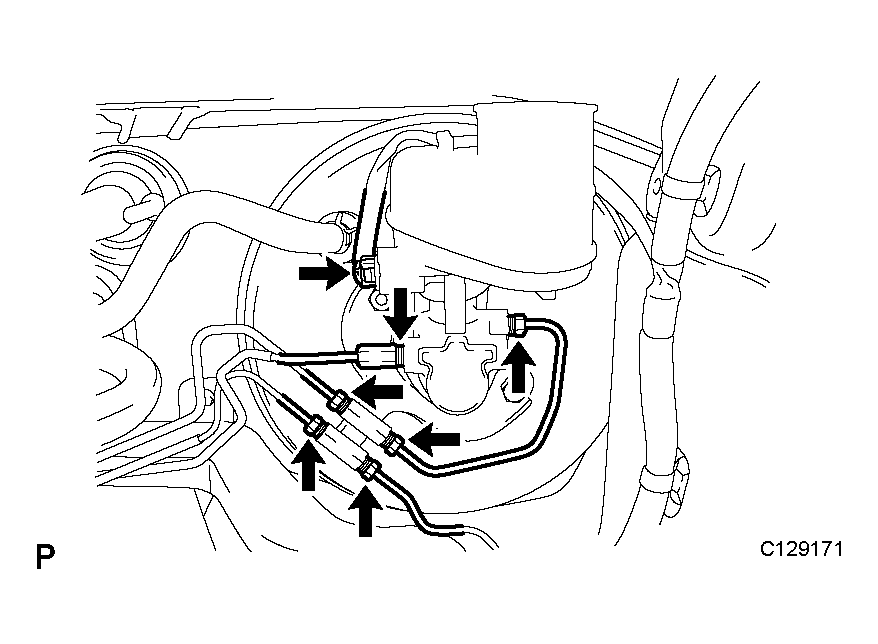

      Fig 2: Connecting Brake Tubes To Master Cylinder Sub-Assembly
      G04375539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf) SST 09023-00101

    3. Connect the level warning switch connector.
  2. FILL RESERVOIR WITH BRAKE FLUID (See step 1 under  BRAKE FLUID  )
  3. BLEED MASTER CYLINDER (See step 2 under  BRAKE FLUID  )
  4. BLEED BRAKE LINE (See step 3 under  BRAKE FLUID  )
  5. INSTALL AIR CLEANER ASSEMBLY
  6. CHECK FLUID LEVEL IN RESERVOIR (See step 5 under  BRAKE FLUID  )
  7. CHECK BRAKE FLUID LEAKAGE
