Brake Booster: Installation

  1. INSTALL BRAKE BOOSTER GASKET
    1. Install a new brake booster gasket to the brake booster.
  2. INSTALL BRAKE BOOSTER ASSEMBLY
    1. Install the brake booster with the 4 nuts.

      Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

      NOTE: Do not damage the brake tubes and the wire harness.

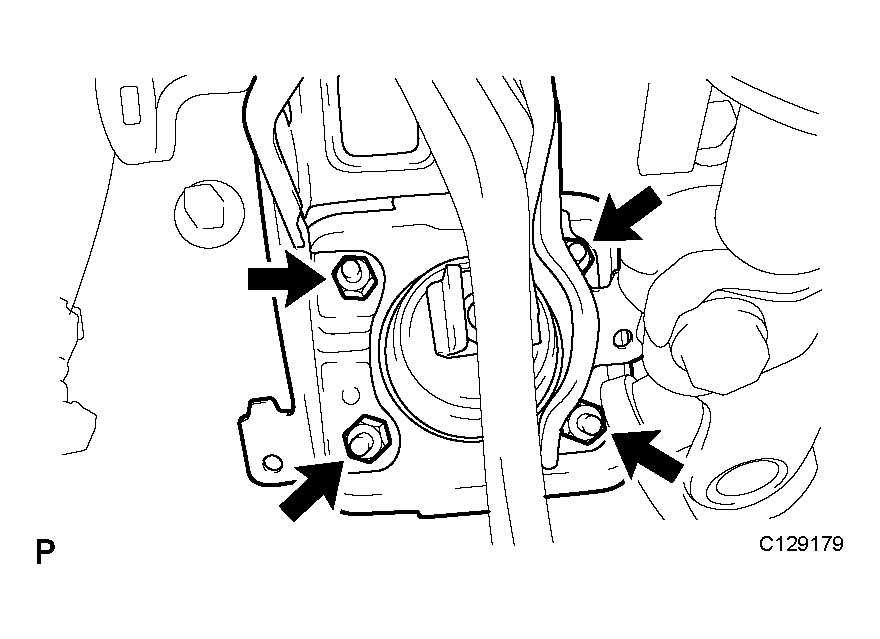

      Fig 1: Installing Brake Booster With Nuts
      G04375549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL MASTER CYLINDER PUSH ROD CLEVIS
    1. Install the push rod clevis and the push rod lock nut.

      HINT:

      After adjusting the brake pedal height, tighten the lock nut.

  4. INSTALL PUSH ROD PIN
    1. Apply lithium soap base glycol grease to the parts indicated by arrows (See Figure).
    2. Install the push rod pin and clip.
  5. INSTALL BRAKE PEDAL RETURN SPRING
  6. INSTALL INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER NO.1
  7. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL
  8. INSTALL INSTRUMENT SIDE PANEL
  9. INSTALL COWL SIDE TRIM SUB-ASSEMBLY
  10. INSTALL FRONT DOOR SCUFF PLATE
  11. INSTALL FRONT BRAKE TUBE NO.5
    1. Using SST, install front brake tube No.5.

      SST 09023-00101

      Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

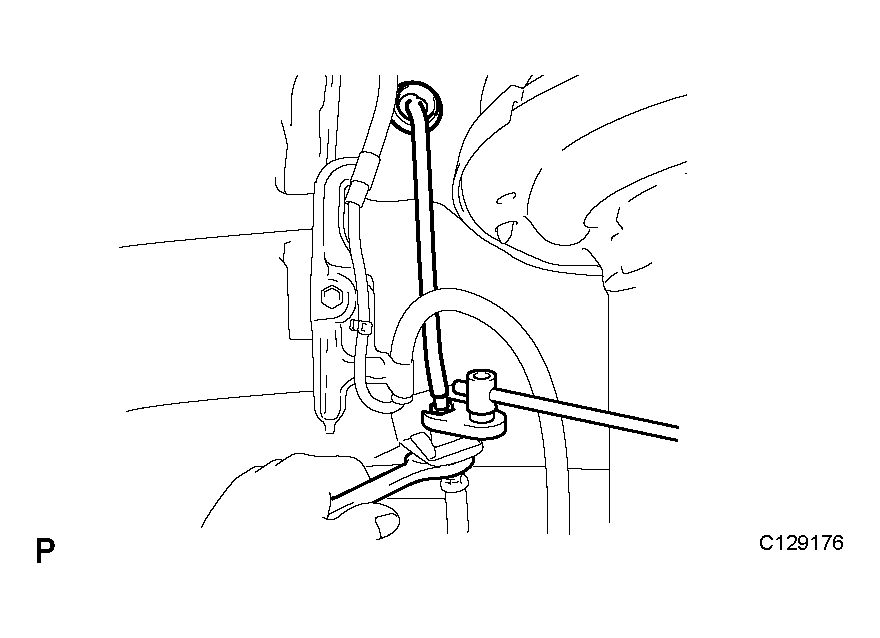

      Fig 2: Installing Front Brake Tube No.5
      G04375550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. CONNECT VACUUM HOSE ASSEMBLY
    1. Connect the vacuum hose to the brake booster assembly and install the clip.

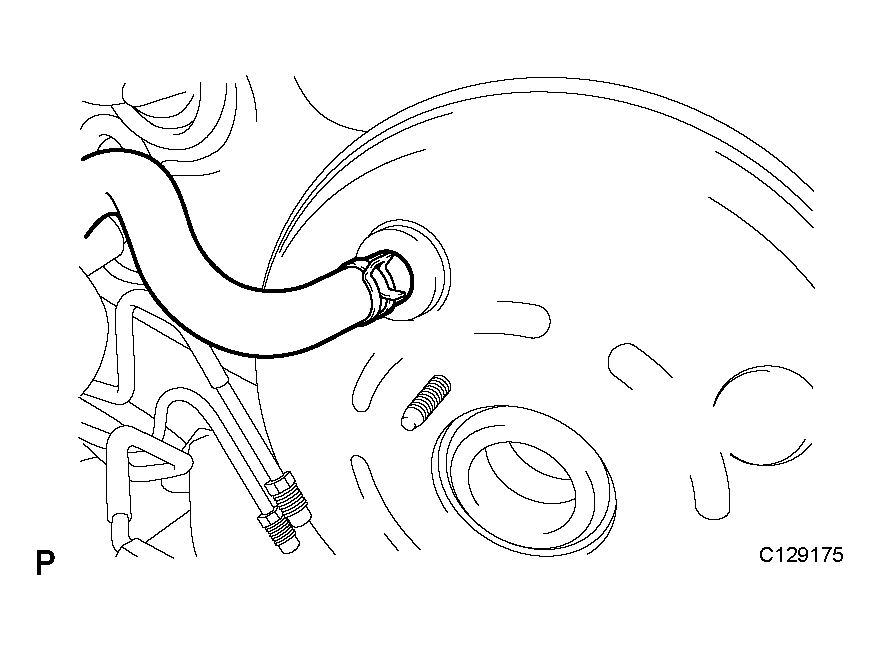

      Fig 3: Connecting Vacuum Hose To Brake Booster Assembly And Install Clip
      G04375551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSPECT AND ADJUST BRAKE BOOSTER PUSH ROD

    SST 09737-00020

  14. INSTALL BRAKE MASTER WITH PLATE CYLINDER SUB-ASSEMBLY

    SST 09023-00101

  15. FILL RESERVOIR WITH BRAKE FLUID (See step 1 under  BRAKE FLUID  )
  16. BLEED MASTER CYLINDER (See step 2 under  BRAKE FLUID  )
  17. BLEED BRAKE LINE (See step 3 under  BRAKE FLUID  )
  18. INSTALL AIR CLEANER ASSEMBLY
  19. CHECK FLUID LEVEL IN RESERVOIR (See step 5 under  BRAKE FLUID  )
  20. CHECK BRAKE FLUID LEAKAGE
  21. INSTALL COWL TOP PANEL OUTER
    1. Install the cowl top panel outer with the 4 bolts and nut.

      Torque: Nut

      80 N*m (816 kgf*cm, 59 ft.*lbf)

  22. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY (See step 1 under  INSTALLATION  )
  23. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (See step 3 under  INSTALLATION  )
  24. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (See step 4 under  INSTALLATION  )
  25. CHECK AND ADJUST BRAKE PEDAL HEIGHT (See step 1 under  ADJUSTMENT  )
