Rear Speaker: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH (See  DISASSEMBLY  )
2. REMOVE REAR DOOR ARMREST BASE PANEL UPPER LH (See  DISASSEMBLY  )
3. REMOVE REAR DOOR TRIM BOARD SUBASSEMBLY LH (See  DISASSEMBLY  )
4. REMOVE REAR SPEAKER ASSEMBLY
   1. Disconnect the connector.
   2. Remove the 3 screws and rear speaker assembly.

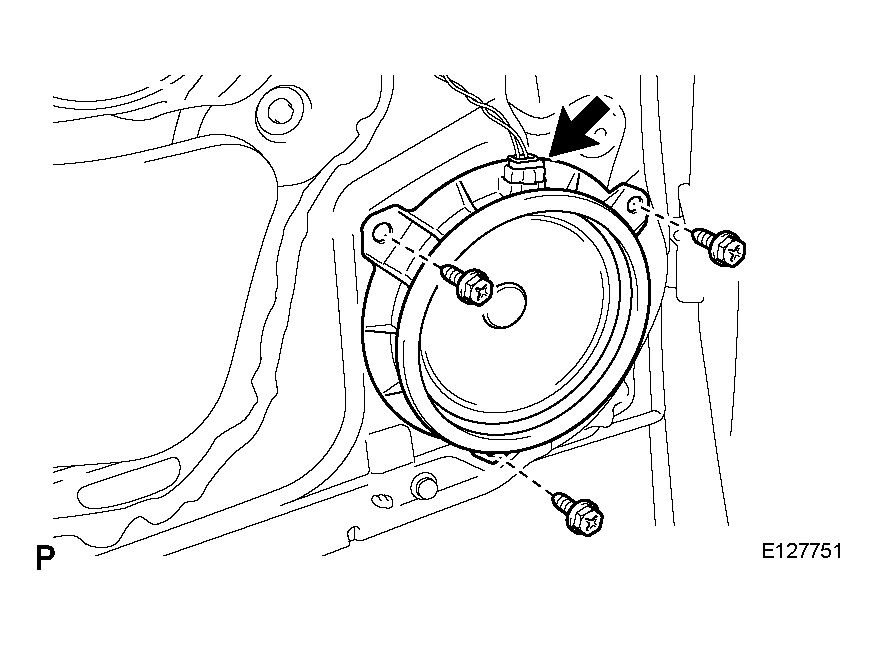

      Fig 1: Removing Rear Speaker Assembly Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
