Microphone Amplifier: Removal

REMOVE ROOF CONSOLE BOX ASSEMBLY (See REMOVAL )
REMOVE TELEPHONE MICROPHONE ASSEMBLY
1. Disengage the claw and remove the clamp.
2. Remove the 2 screws and remove the telephone microphone assembly.
REMOVE AMPLIFIER MICROPHONE ASSEMBLY

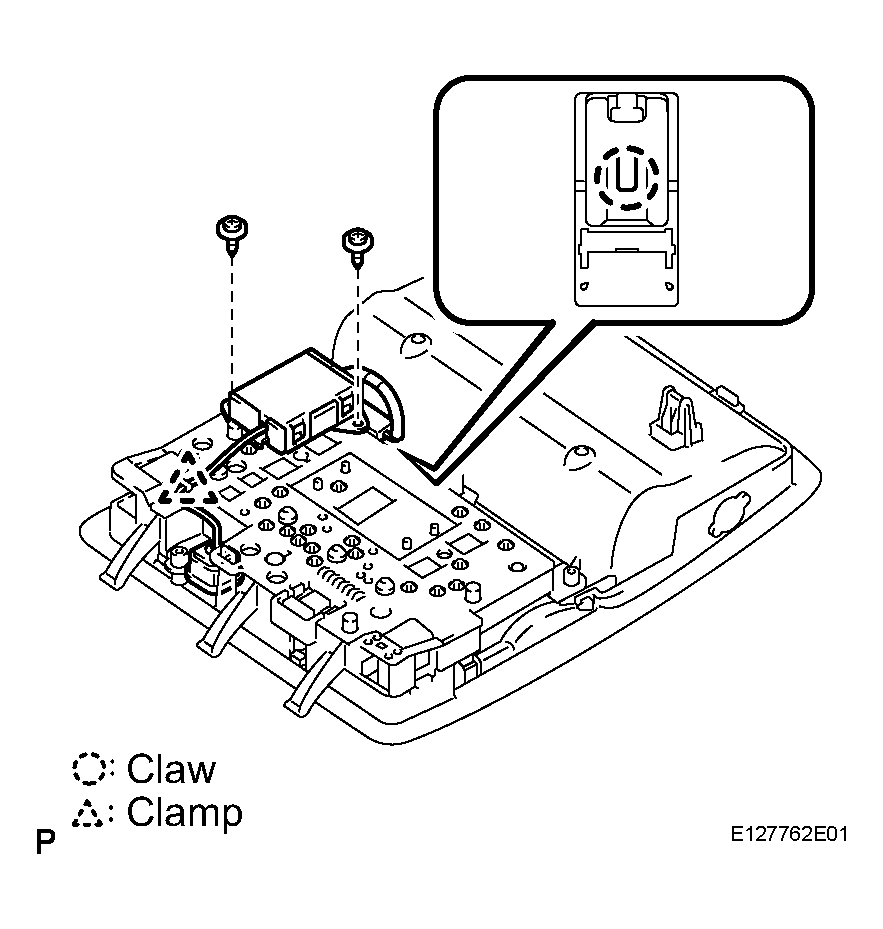

Fig 1: Removing Telephone Microphone Assembly Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TELEPHONE WIRE
1. Disconnect the connector and remove the telephone wire.
REMOVE MICROPHONE AMPLIFIER ASSEMBLY

Fig 2: Disconnecting Telephone Wire Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
