Tachometer Malfunction: Wiring Diagram

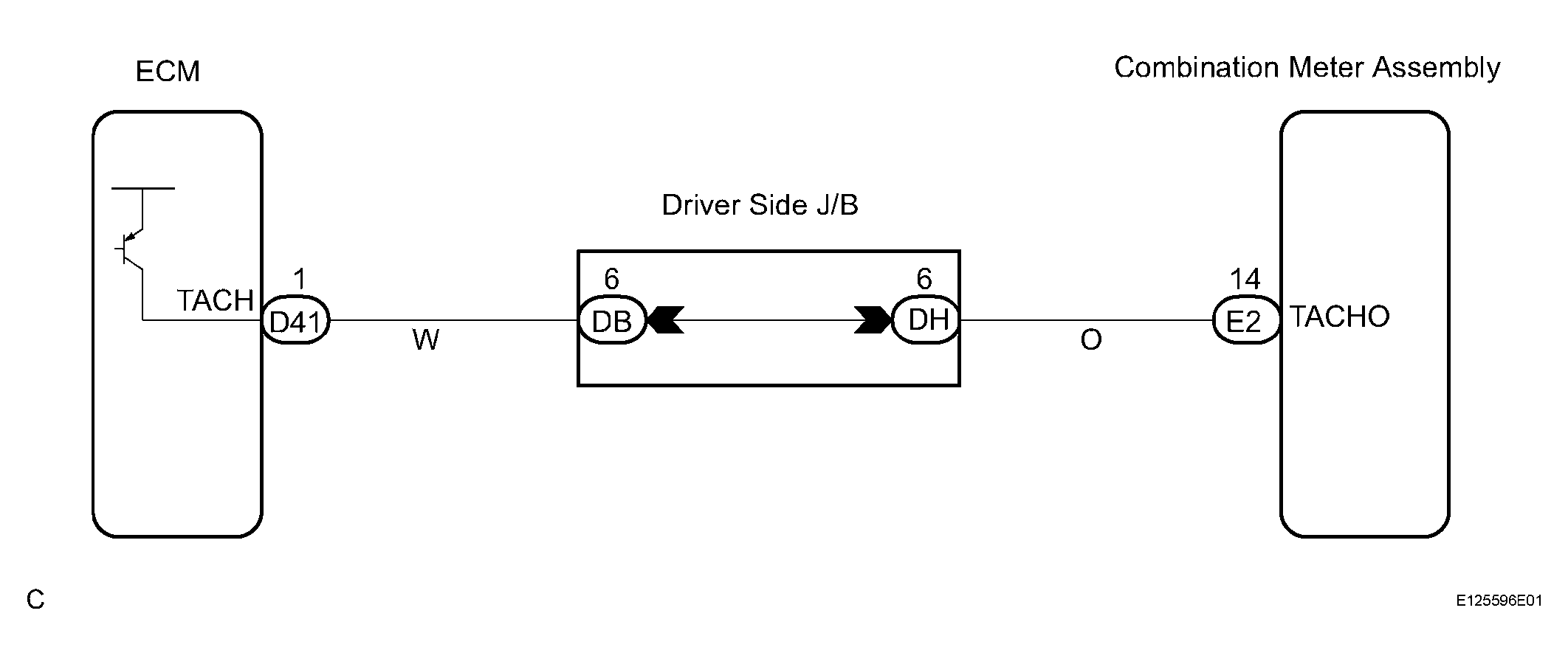

Fig 1: Tachometer - Wiring Diagram

G04379959

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
