Meter / Gauge System
>>
Parts Location
Parts Location

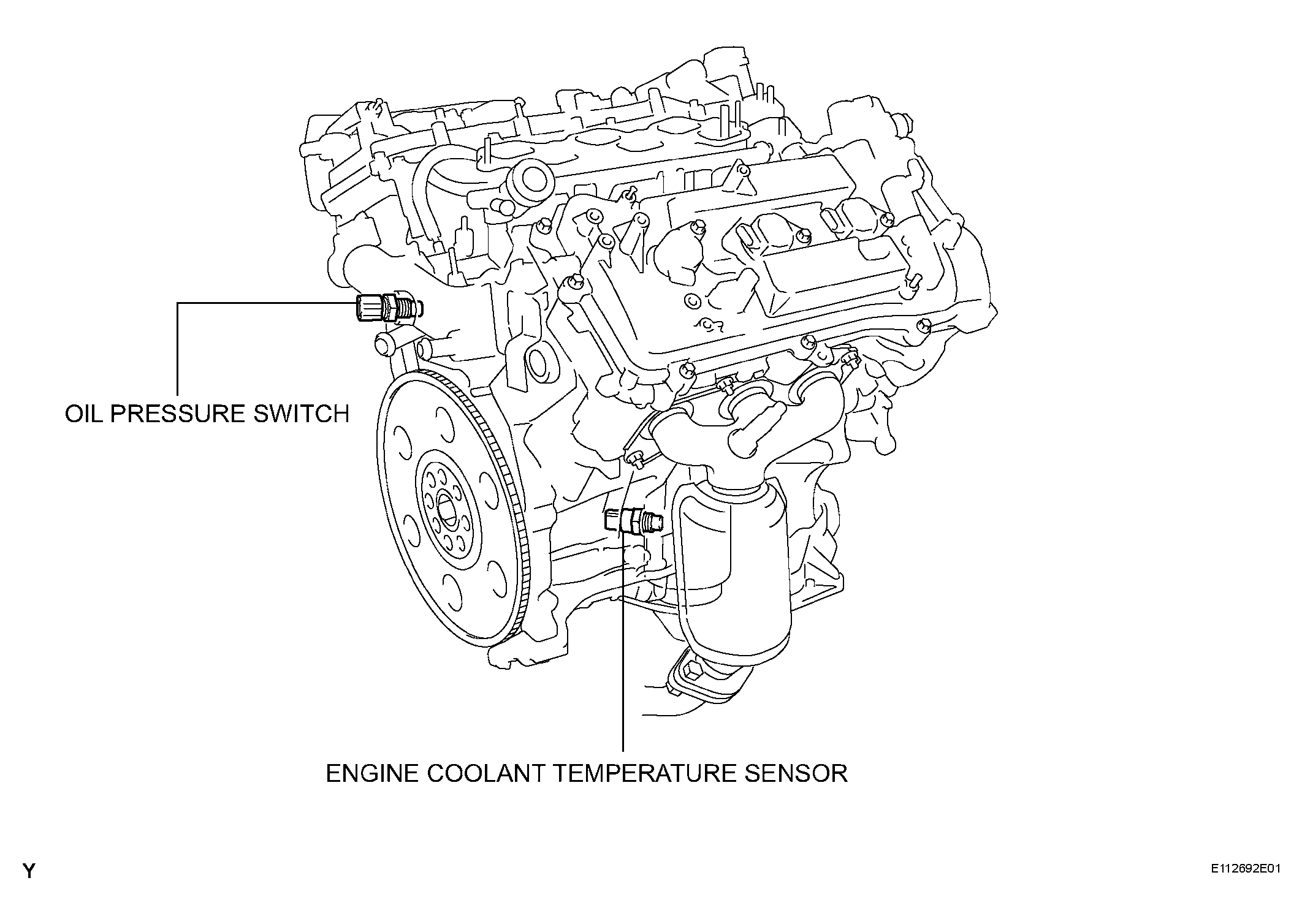

Fig 1: Identifying Meter / Gauge System Parts Location (1 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

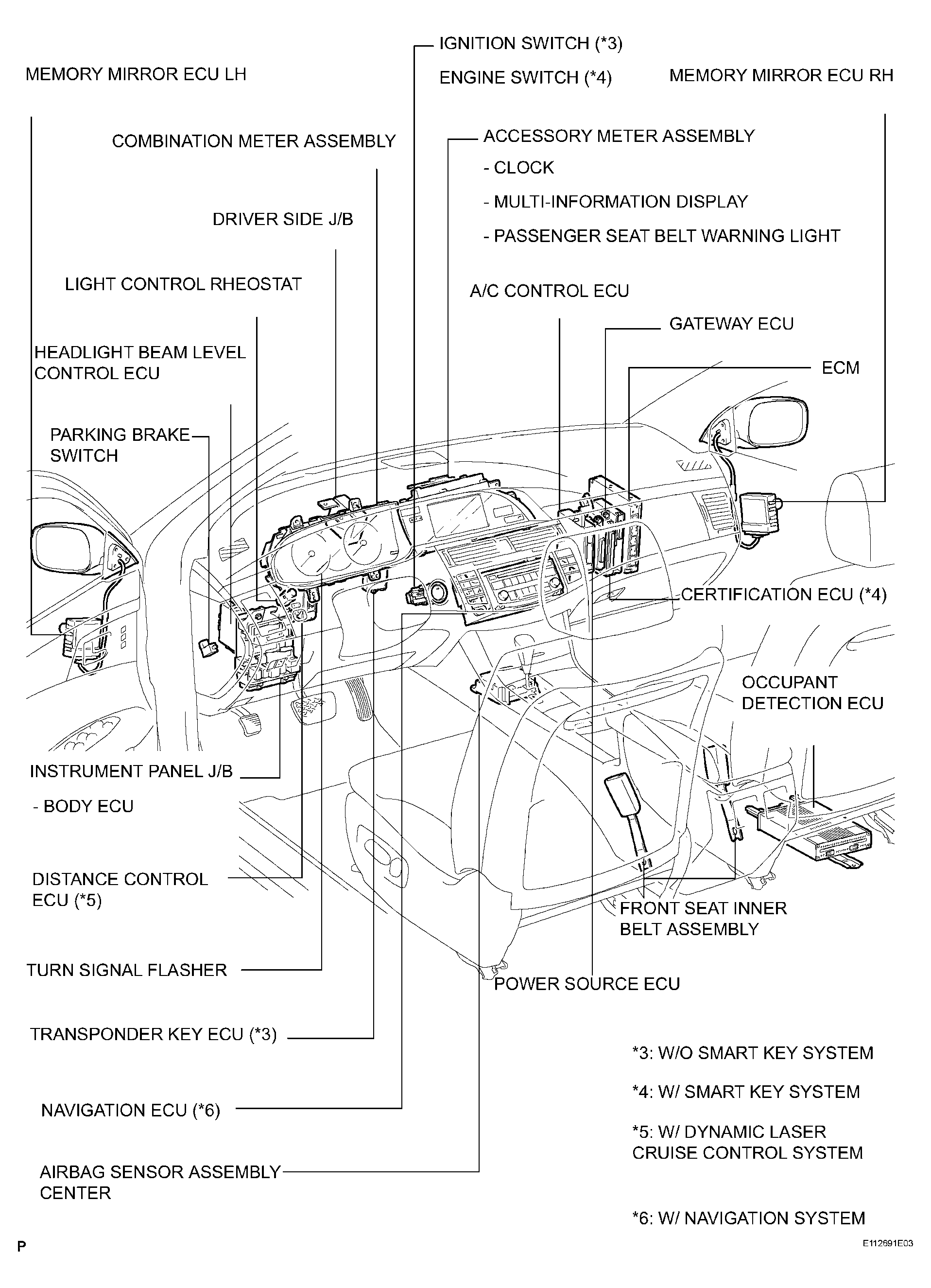

Fig 2: Identifying Meter / Gauge System Parts Location (2 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig 3: Identifying Meter / Gauge System Parts Location (3 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
