Operating Light Control Rheostat does not Change Light Brightness: Wiring Diagram

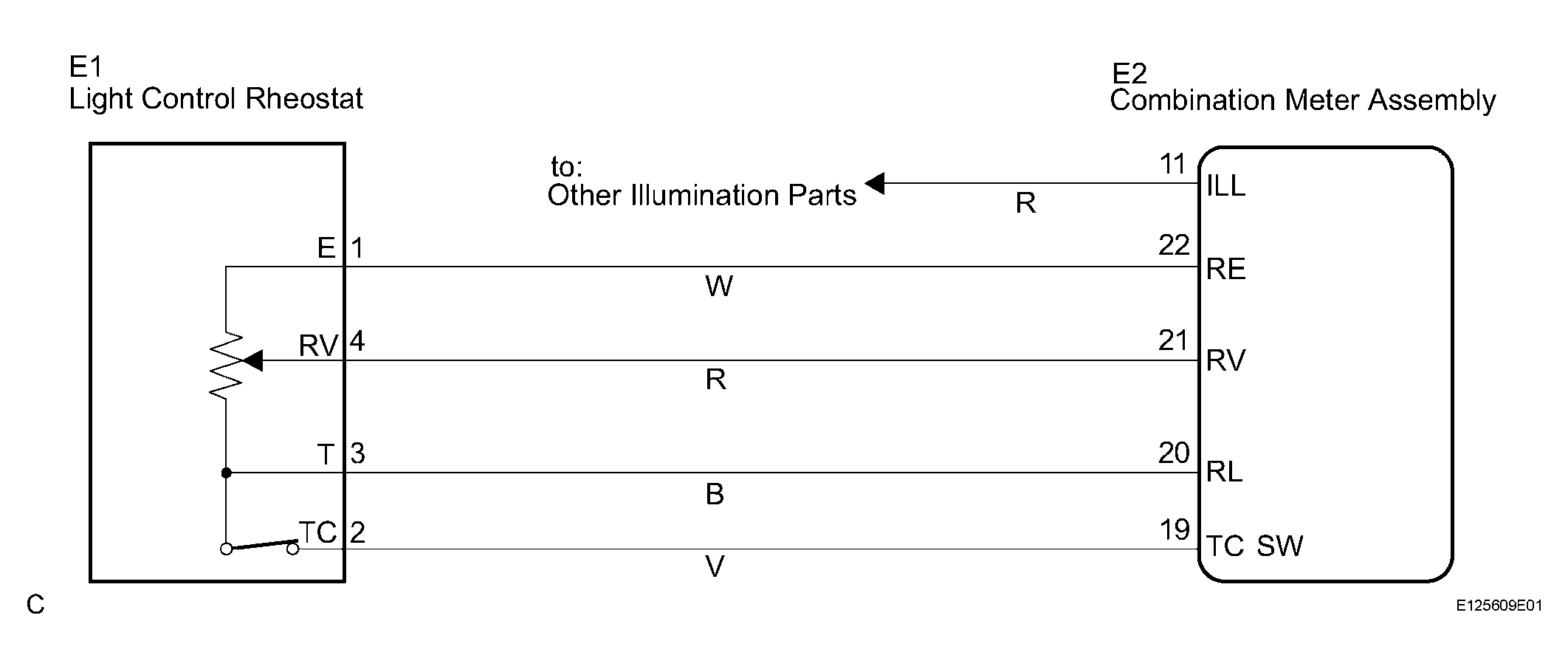

Fig 1: Operating Light Control Rheostat Does Not Change Light Brightness - Wiring Diagram
G04379976Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
