Inspection Procedure

  1. PERFORM ACTIVE TEST BY INTELLIGENT TESTER
    1. Operate the intelligent tester according to the stepson the display and select the "ACTIVE TEST".

    METER:

    METER REFERENCE

    Item Test Details Diagnostic Note
    FUEL GAUGE OFF, EMPTY, 1/2, FULL -

    OK:

    Needle indication is normal.

    NG: REPLACE COMBINATION METER ASSEMBLY

    OK: GO TO NEXT STEP

  2. READ VALUE OF INTELLIGENT TESTER
    1. Operate the intelligent tester according to the steps on the display and select the "DATA LIST".

    METER:

    METER REFERENCE

    Item Measurement Item / Display (Range) Normal Condition Diagnostic Note
    FUEL GAUGE Fuel input signal Min.: 0, max.: 255 Fuel gauge indicates (F): 35
    Fuel gauge indicates (3/4): 85
    Fuel gauge indicates (1/2): 145
    Fuel gauge indicates (1/4): 186
    Fuel gauge indicates (E): 205    		 -

    OK:

    Fuel value signal displayed on the tester is almost the same as needle indication.

    NG: REPLACE COMBINATION METER ASSEMBLY

    OK: GO TO NEXT STEP

  3. INSPECT FUEL SENDER GAUGE ASSEMBLY
    1. Disconnect the L8 connector.
    2. Disconnect the fuel sender gauge connector.
    3. Remove the fuel sender gauge assembly.
    4. Measure the resistance between the terminal 2 (EF) and 3 (FS) of connector according to the value(s) in the table below

      Resistance

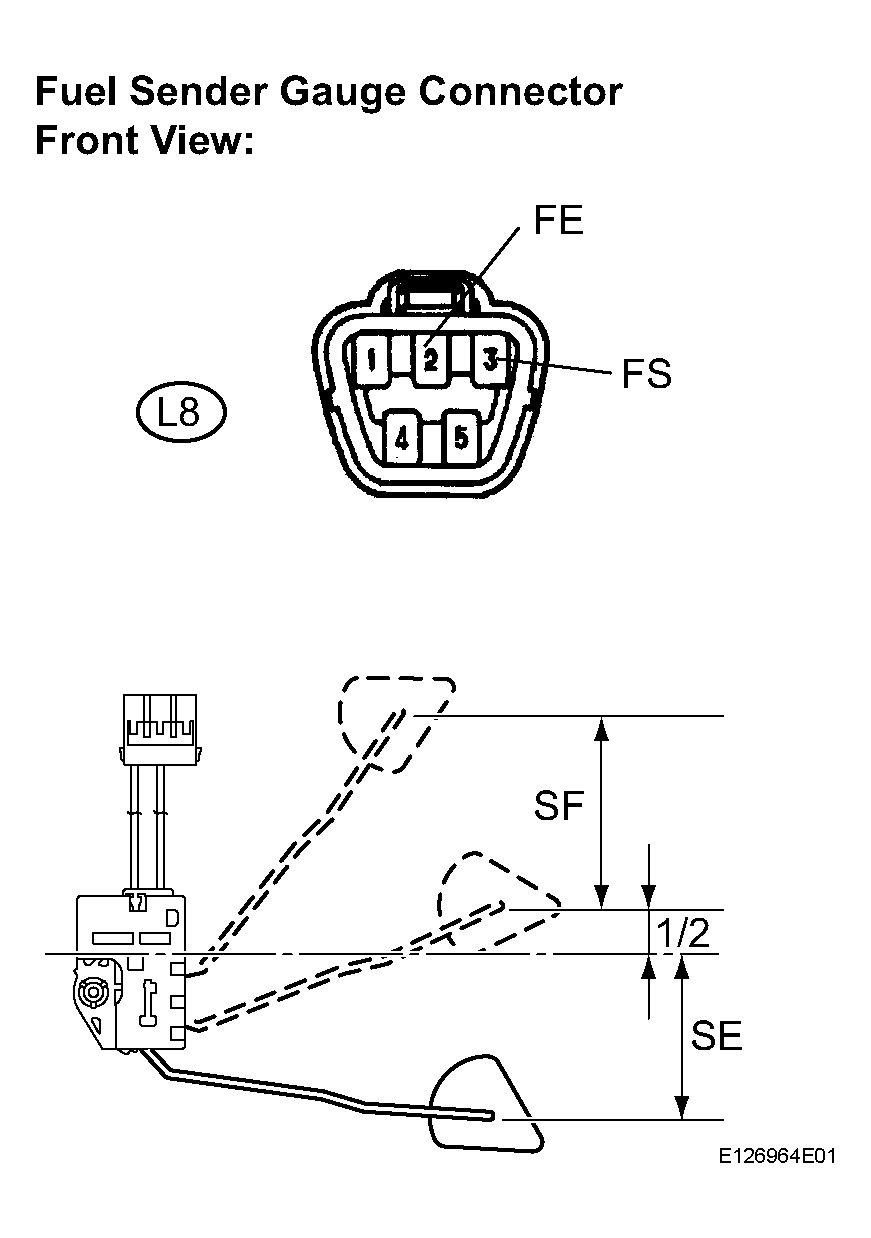

      Fig 1: Identifying Fuel Sender Gauge Connector
      G04379964Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      RESISTANCE REFERENCE

      Float level Float position mm (in.) Resistance (Ω)
      SF 73.1 (2.88) +- 3 (0.12) 13.5 to 16.5
      1/2 13.8 (0.54) +- 3 (0.12) 199.5 to 225.5
      SE 51.5 (2.03) +- 3 (0.12) 405.5 to 414.5

    NG: REPLACE FUEL SENDER GAUGE ASSEMBLY

    OK: GO TO NEXT STEP

  4. CHECK HARNESS AND CONNECTOR (COMBINATION METER - FUEL SENDER GAUGE ASSEMBLY)
    1. Disconnect the E3 and L8 connectors

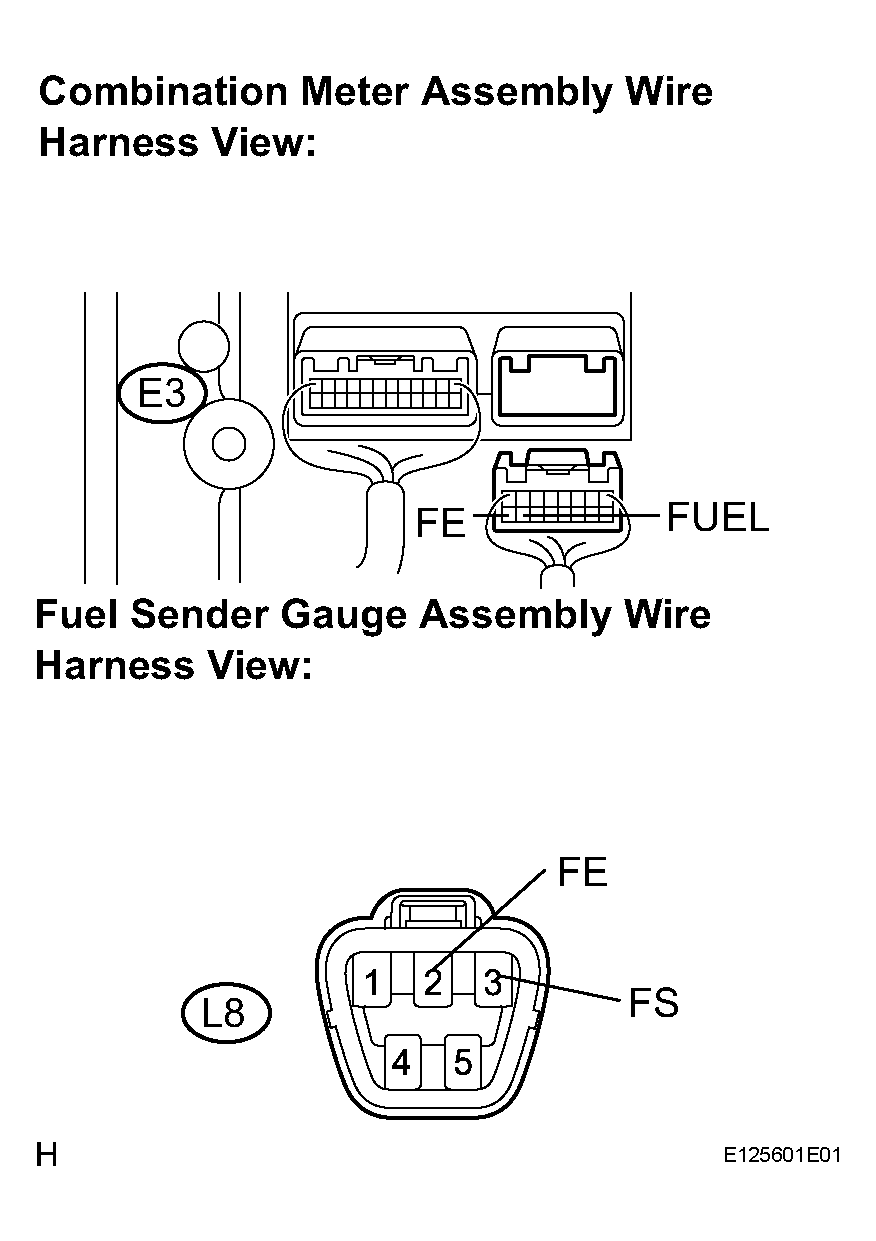

      Fig 2: Disconnecting E3 And L8 Connector
      G04379965Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Measure the resistance according to the value(s) in the table below.

      Resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      E3-15 (FUEL) - L8-3 (FS) Always Below 1 Ω
      E3-15 (FUEL) - Body ground Always 10 kΩ or higher
      E3-16 (FE) - L8-2 (FE) Always Below 1 Ω
      E3-16 (FE) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE COMBINATION METER ASSEMBLY
