Entire Combination Meter does not Operate: Wiring Diagram

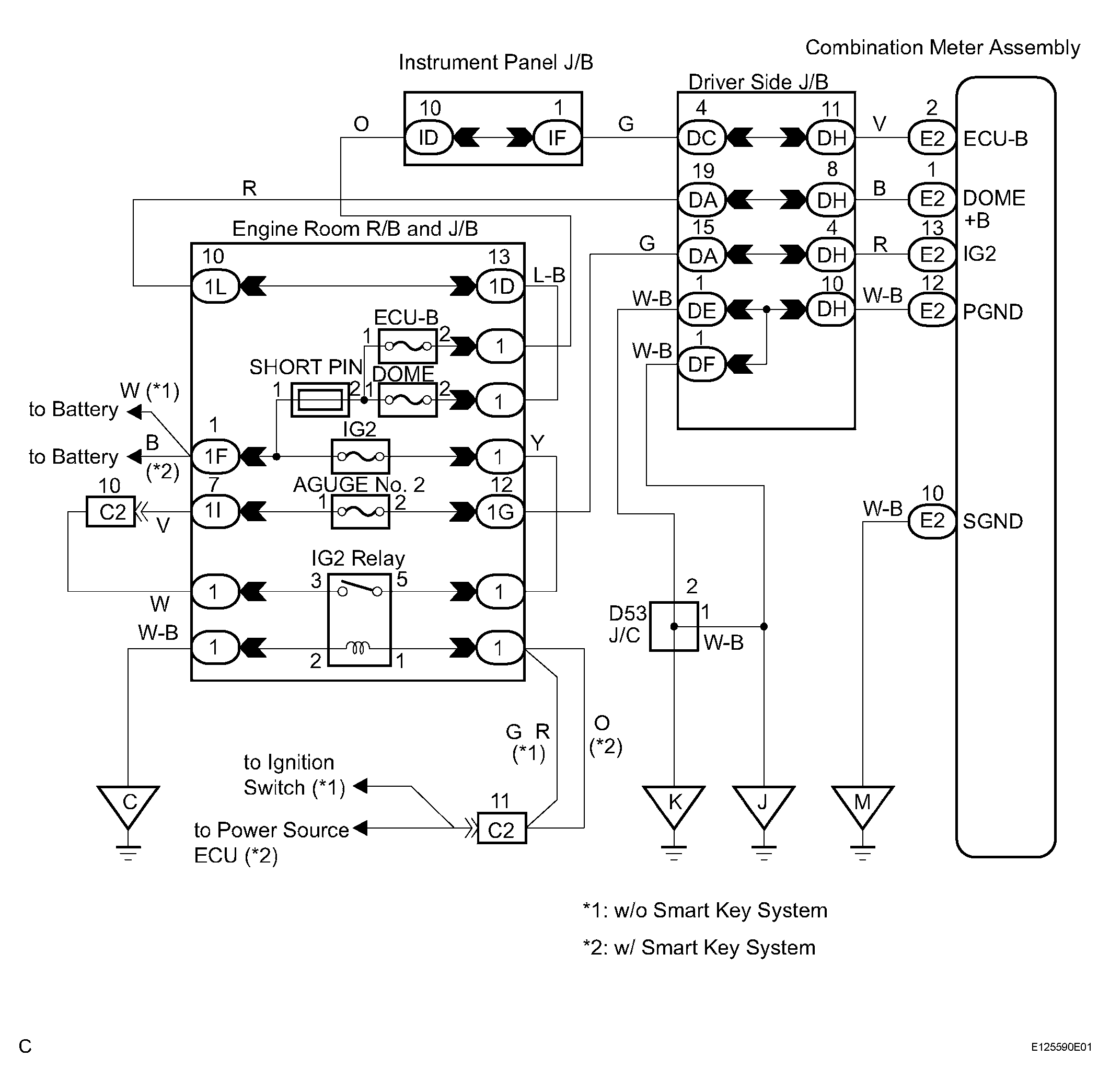

Fig 1: Entire Combination Meter Does Not Operate - Wiring Diagram

G04379952

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
