Engine Coolant Temperature Receiver Gauge Malfunction: Wiring Diagram

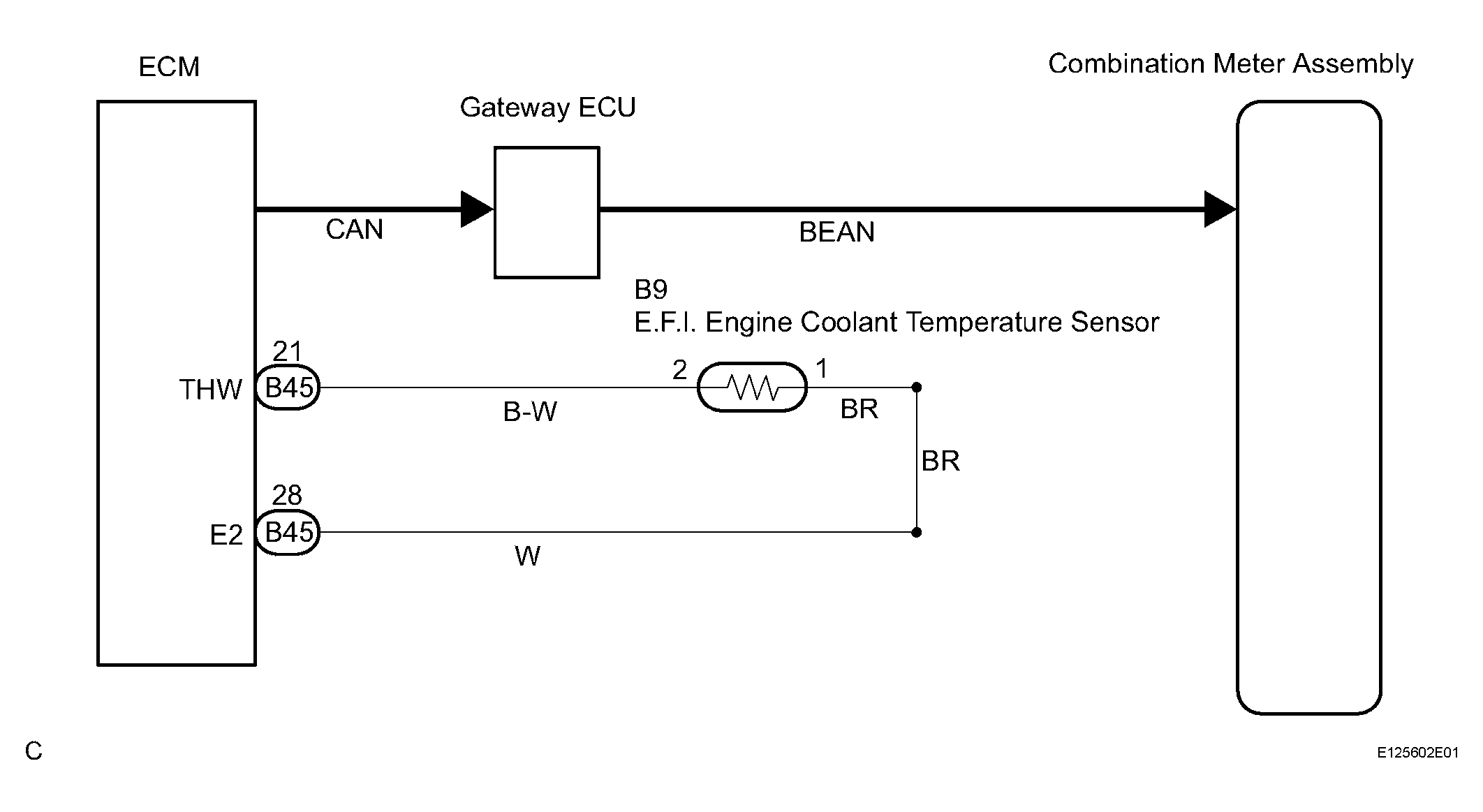

Fig 1: Engine Coolant Temperature Receiver Gauge - Wiring Diagram

G04379966

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
