Driver Side Seat Belt Warning Light does not Operate: Wiring Diagram

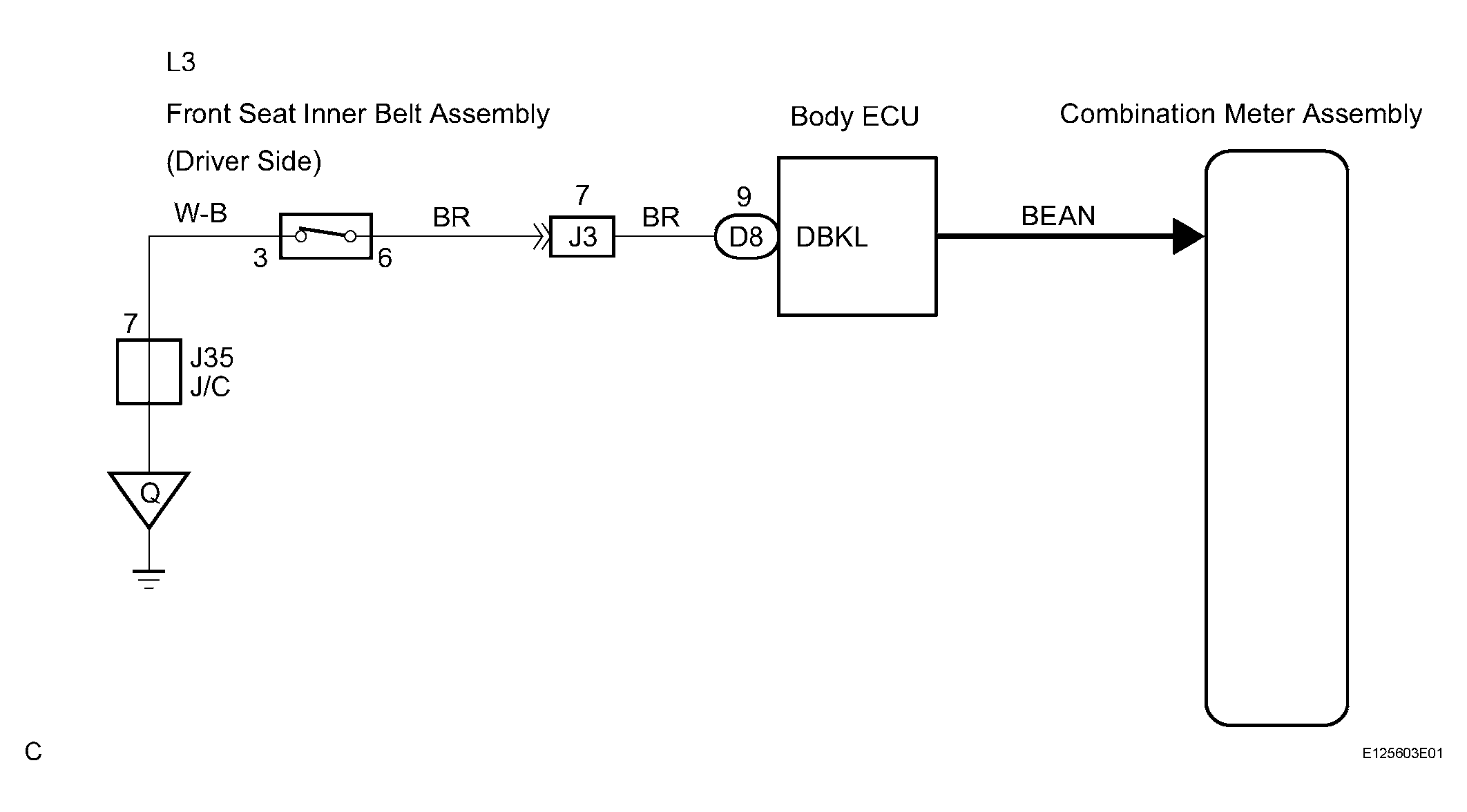

Fig 1: Driver Side Seat Belt Warning Light Does Not Operate - Wiring Diagram

G04379967

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
