Clock Display Circuit: Wiring Diagram

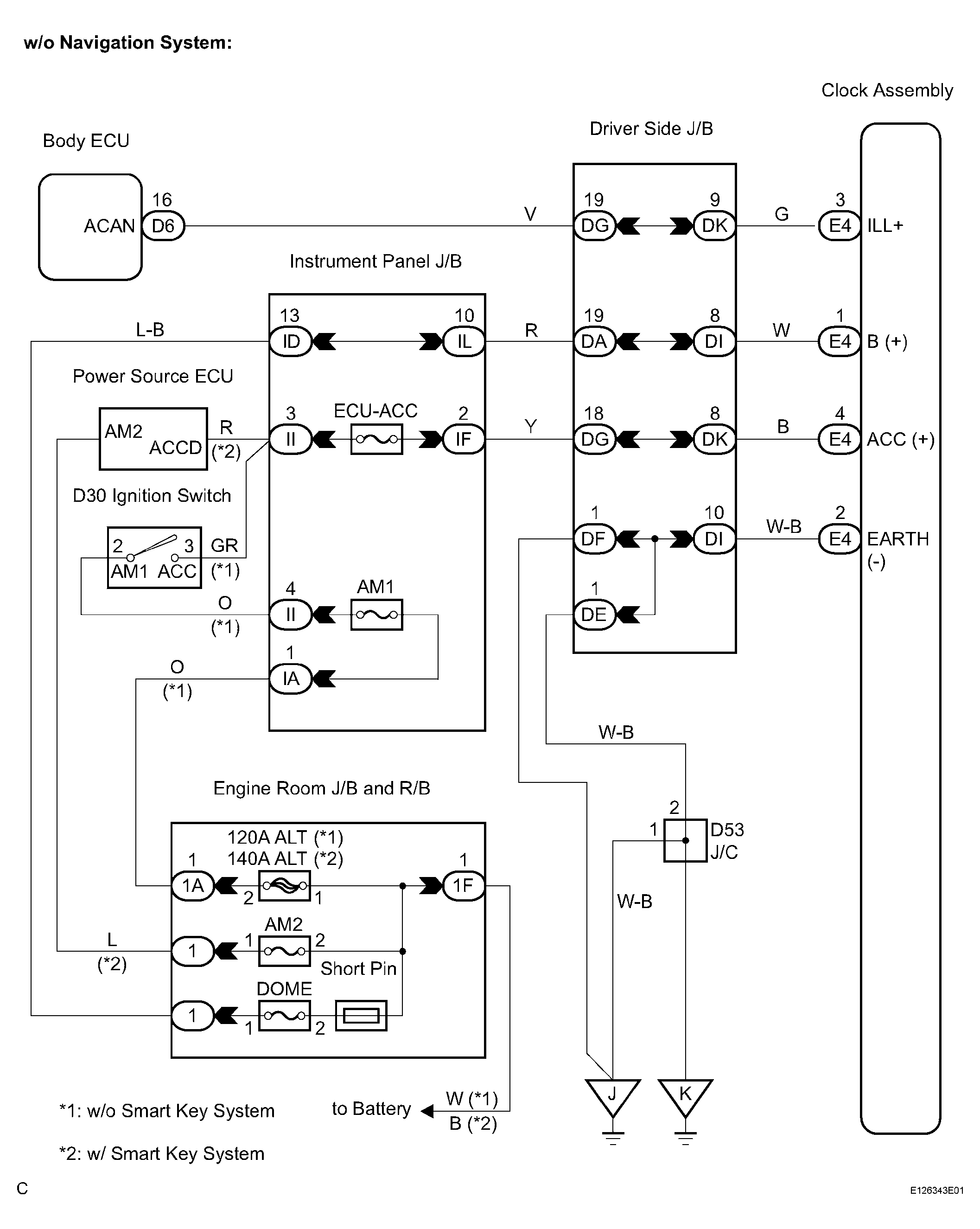

Fig 1: Clock Display Circuit Diagram (w/o Navigation System)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

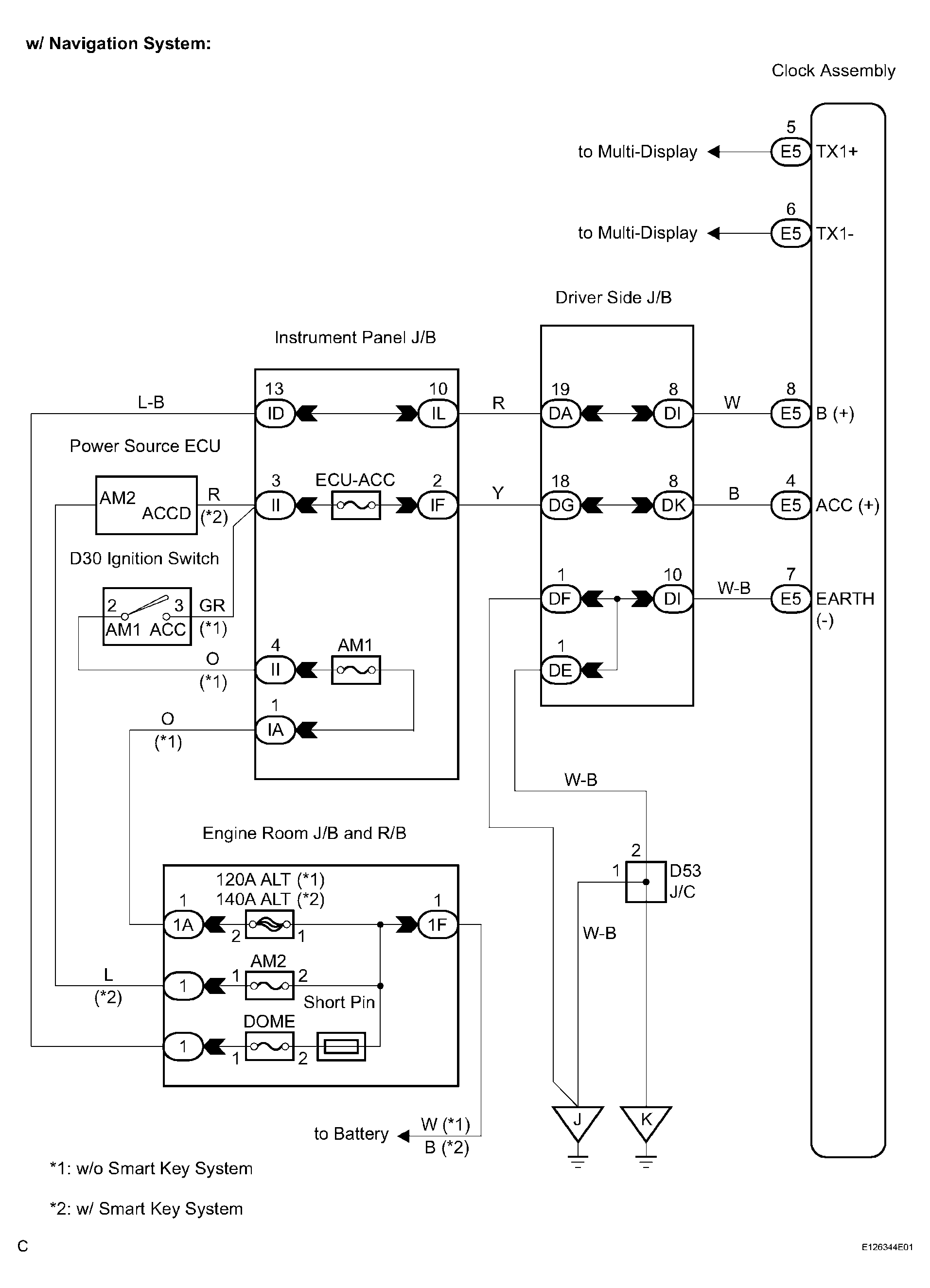

Fig 2: Clock Display Circuit Diagram (w/ Navigation System)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
