Heater Control Assembly: Removal

REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER
1. Using a screwdriver, pry out the 2 finish panels.
  HINT:

  Tape the screwdriver tip before use.

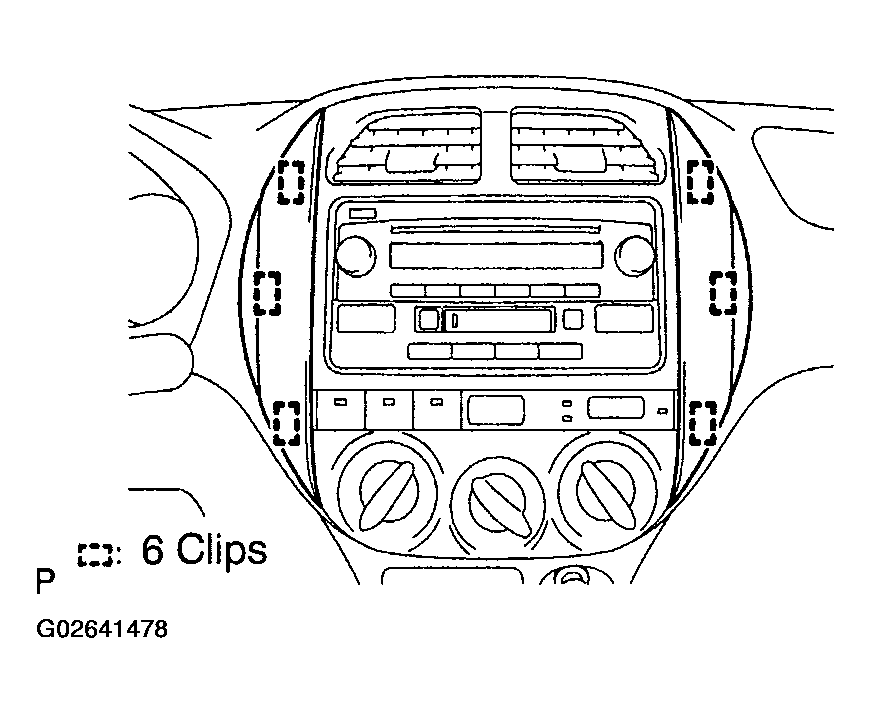

  Fig 1: Removing Instrument Cluster Finish Panel Center
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT CLUSTER FINISH PANEL
1. Remove the 2 screws.

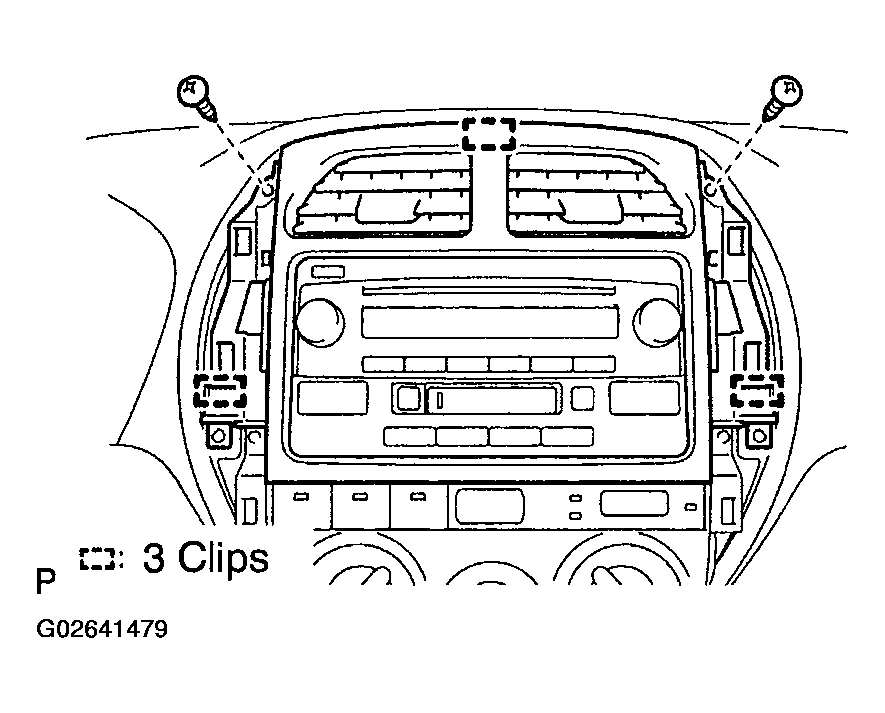

  Fig 2: Removing Instrument Cluster Finish Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, pry out the finish panel.
  HINT:

  Tape the screwdriver tip before use.
3. w/o Radio:
  Remove the 4 bolts and stereo opening cover.

  w/ Radio:

  Remove the 4 bolts and radio, then disconnect the connectors.

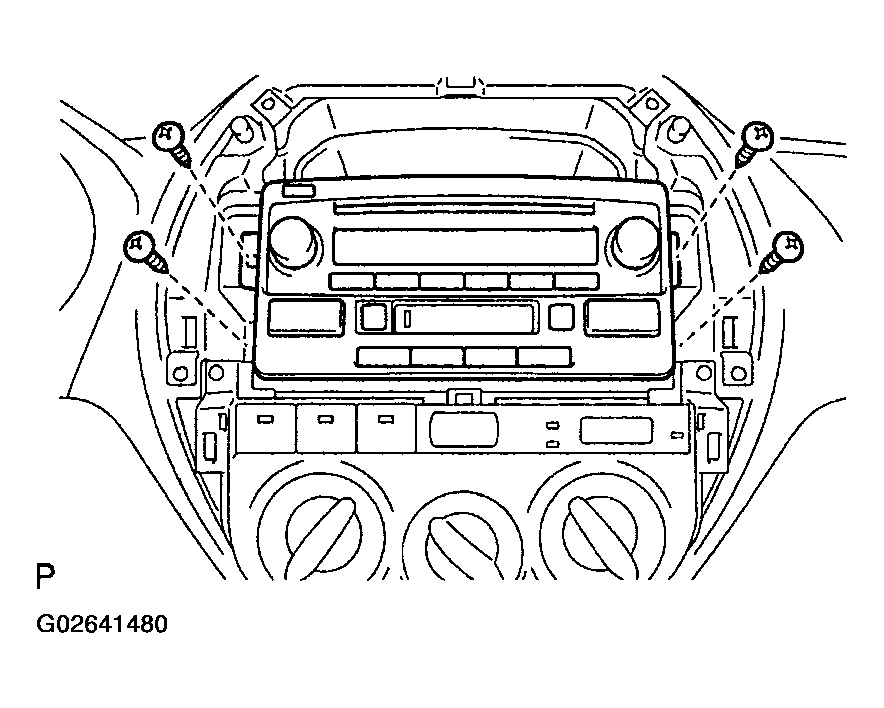

  Fig 3: Removing Screws & Stereo Opening Cover Or Radio
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT HEATER CONTROL CABLES
Remove the No. 1 instrument panel under cover sub-assembly.

NOTE: When the cables are disconnected, be careful not to bend the cables.

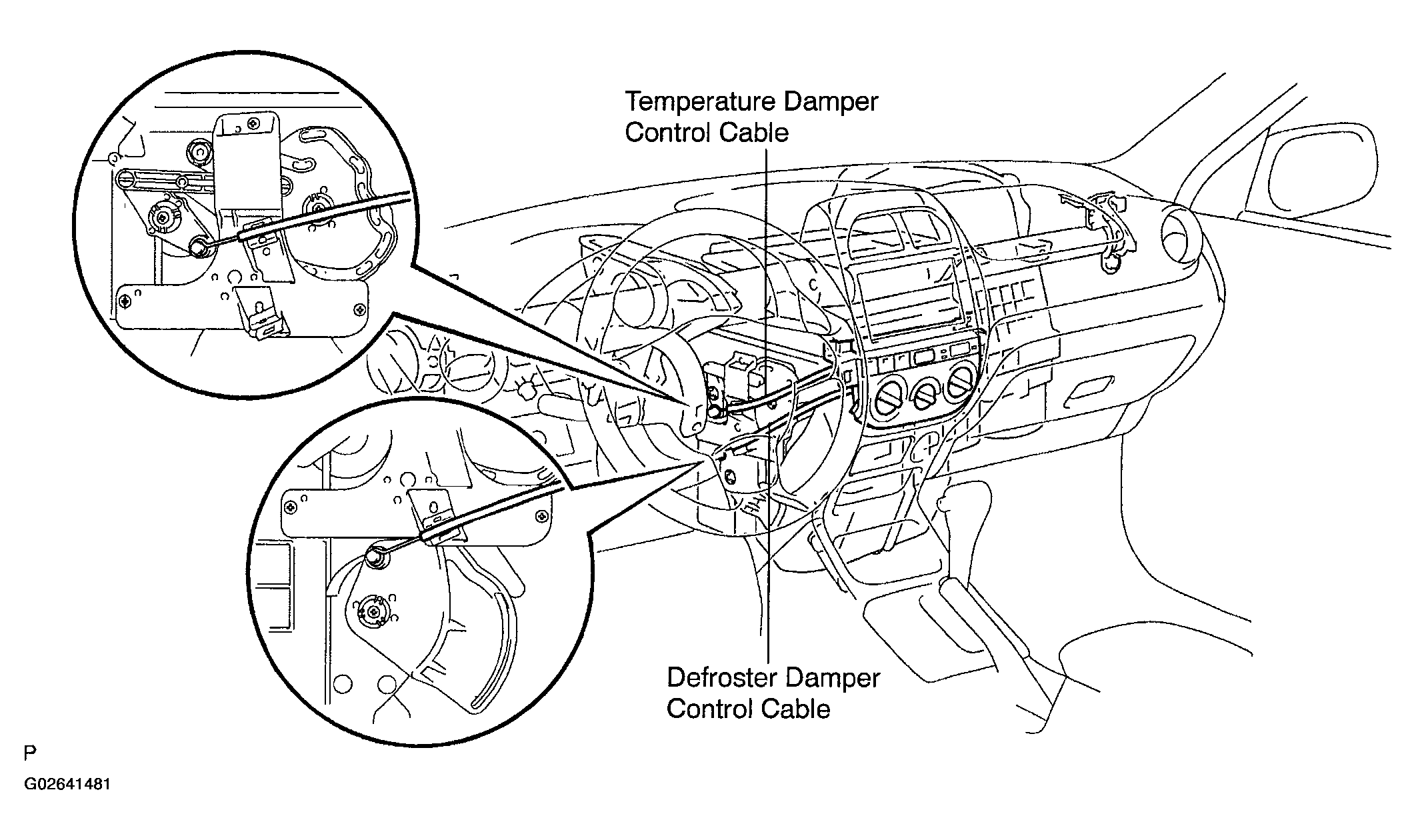

Fig 4: Disconnecting Heater Control Cables
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER CONTROL ASSEMBLY
1. Remove the 2 screws.
2. Using a screwdriver, pry out the heater control assembly.
  HINT:

  Tape the screwdriver tip before use.
3. Disconnect the 2 connectors.

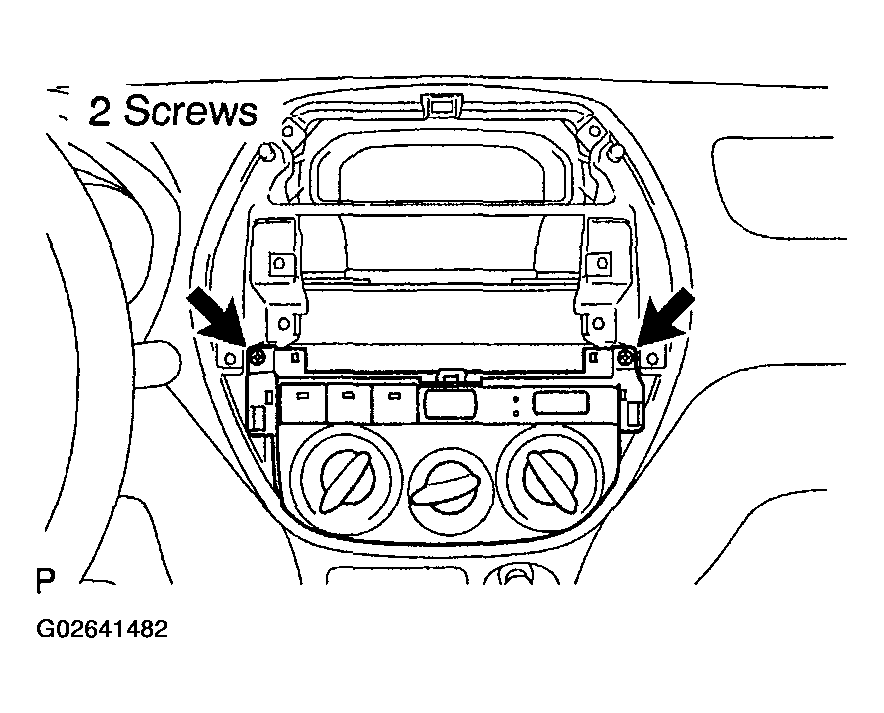

  Fig 5: Removing Heater Control Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
