Brakes - Abs With EBD & BA & TRAC & VSC (Diagnostics)
>>
Parts Location
Parts Location

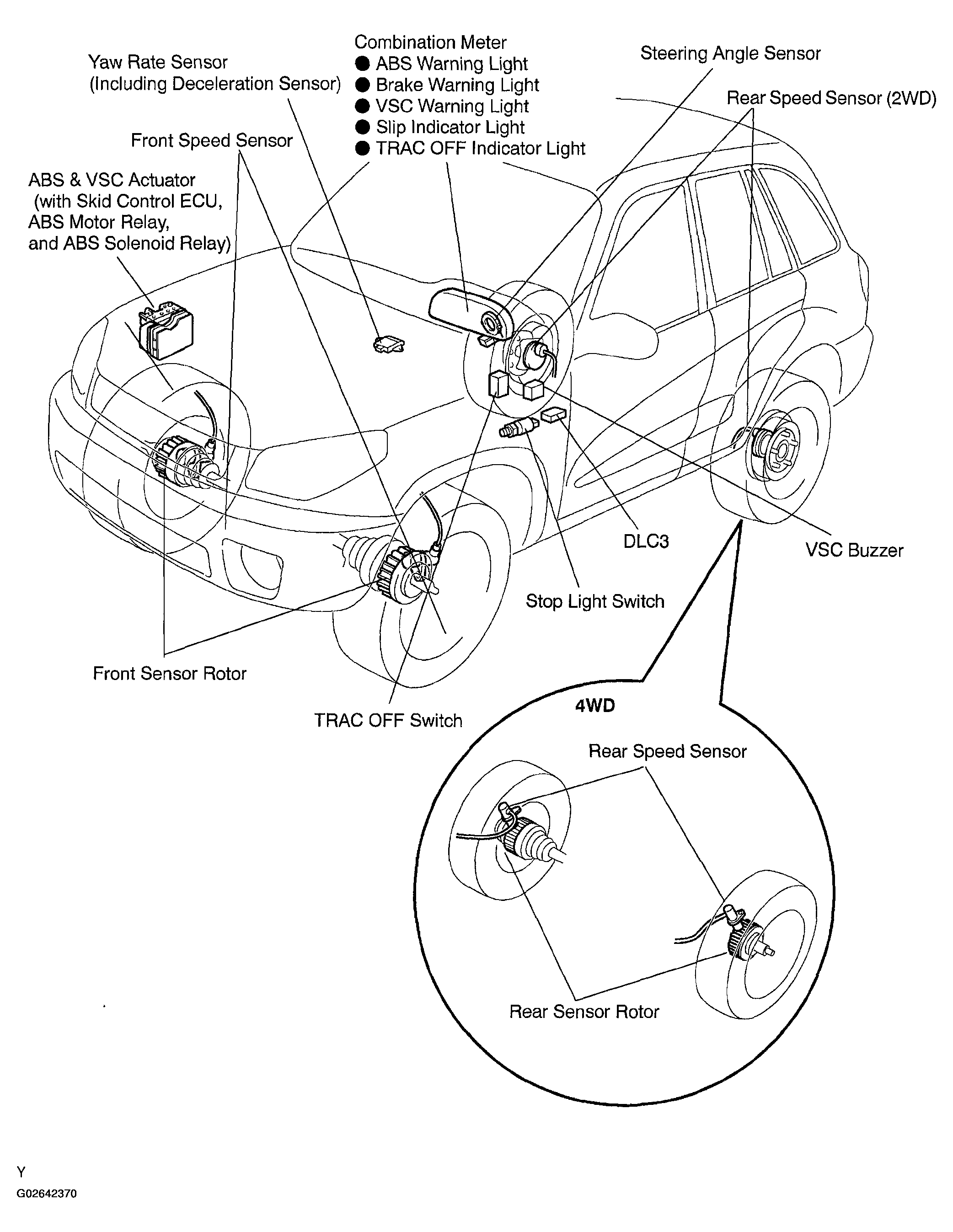

Fig 1: Identifying ABS With EBD & BA & TRAC & VSC System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
