Diagnostic Trouble Code Chart
DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC C0200/31, C0200/32, C0200/33, C0215/34, C1235/35, C0200/36, C0200/38, C1239/39 | Speed Sensor Signal Malfunction |
| DTC C0226/21, C0236/22, C0246/23, C0256/24 | Open or Short Circuit in Brake Actuator Solenoid Circuit |
| DTC C0273/13, C0274/14, C1361/91 | Open or Short Circuit in ABS MTR Relay Circuit & Short circuit in ABS Motor Fail Safe Relay Circuit |
| DTC C0278/11, C0279/12 | ABS Solenoid Valve Relay Circuit |
| DTC C1201/51 | Malfunction in ECM |
| DTC C1203/53 | Malfunction in ECM Communication Circuit |
| DTC C1210/36, C1336/39 | Zero Point Calibration of Yaw Rate Sensor undone/Deceleration Sensor undone |
| DTC C1223/43 | ABS Control System Malfunction |
| DTC C1224/44 | NEO Signal Circuit |
| DTC C1225/25 | VSC Solenoid Circuit |
| DTC C1231/31 | Steering Angle Sensor Circuit |
| DTC C1232/32, C1234/34, C1243/43, C1244/44, C1245/45, C1381/97 | Malfunction in Deceleration Sensor, Malfunction in Yaw Rate Sensor & Malfunction in Power Supply Voltage Yaw/Deceleration Sensor |
| DTC C1241/41 | IG Power Source Circuit |
| DTC C1246/46 | Malfunction in Master Cylinder Pressure Sensor |
| DTC C1249/49 | Stop Light Switch Circuit |
| DTC C1251/51 | ABS Pump Motor Lock |
| DTC C1337/37 | Tires of Different Size (Only for 2WD) |
NOTE:
- When removing the part, turn the ignition switch OFF.
- When replacing yaw rate sensors and/or the brake actuator assembly (skid control ECU), make sure to perform yaw rate sensor zero point calibration (see PRE-CHECK ).
HINT:
- Using SST 09843-18040, connect terminals TC and CG.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code.

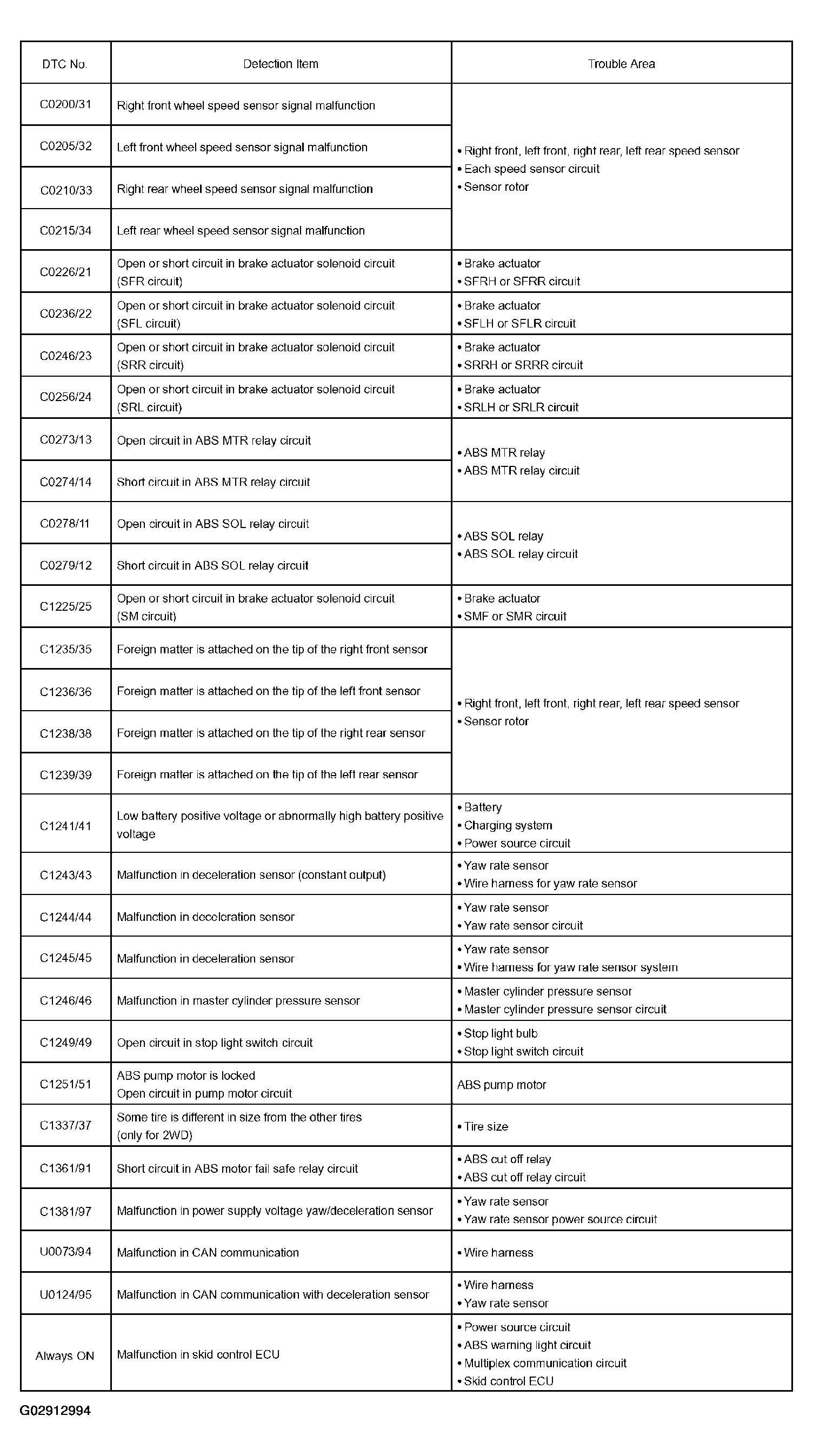

DTC chart of ABS:

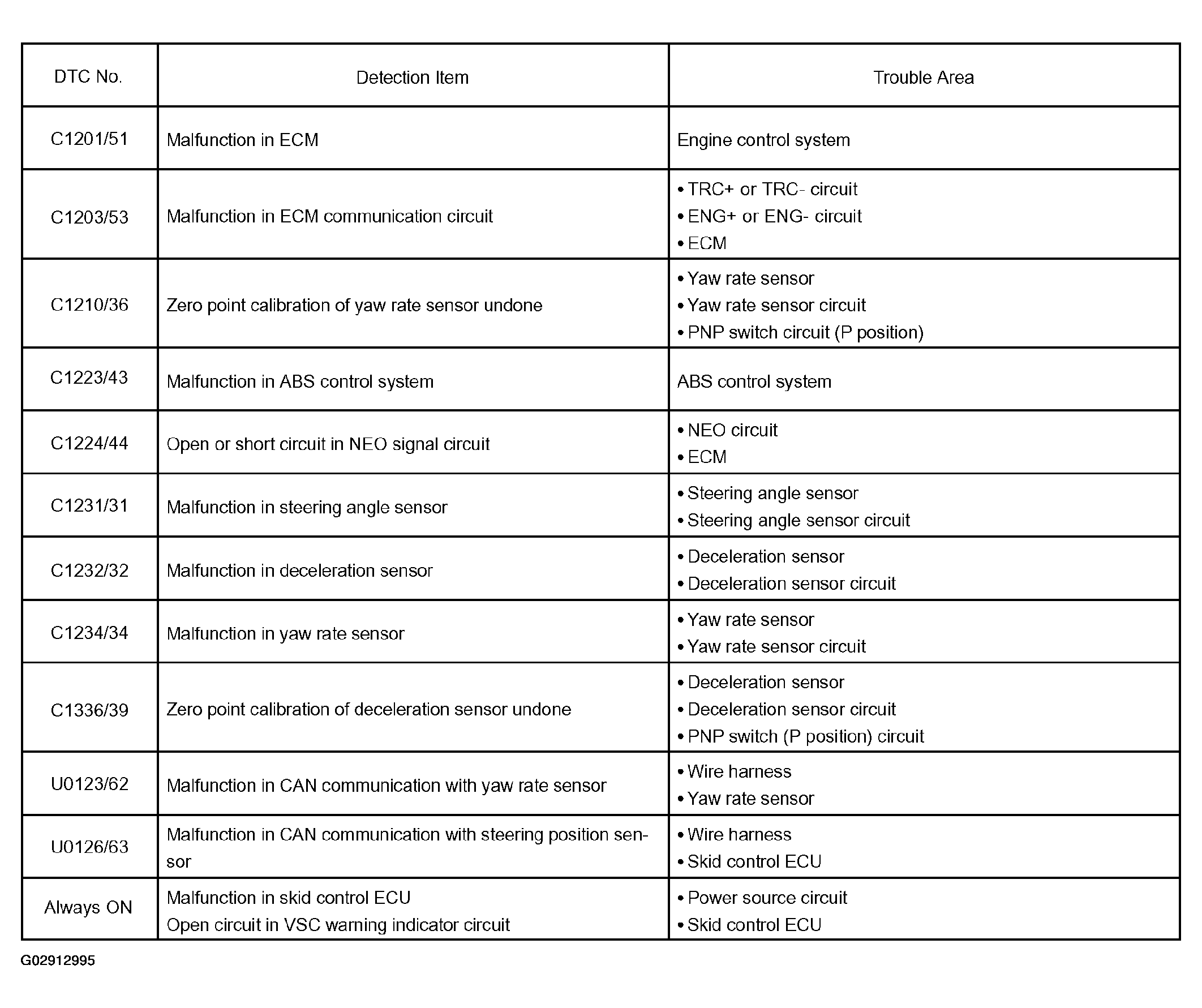

DTC chart of VSC:
HINT:
In some cases, the hand-held tester cannot be used when the VSC warning light is always on.
