VSC Warning Light Circuit (Does not light up): Wiring Diagram

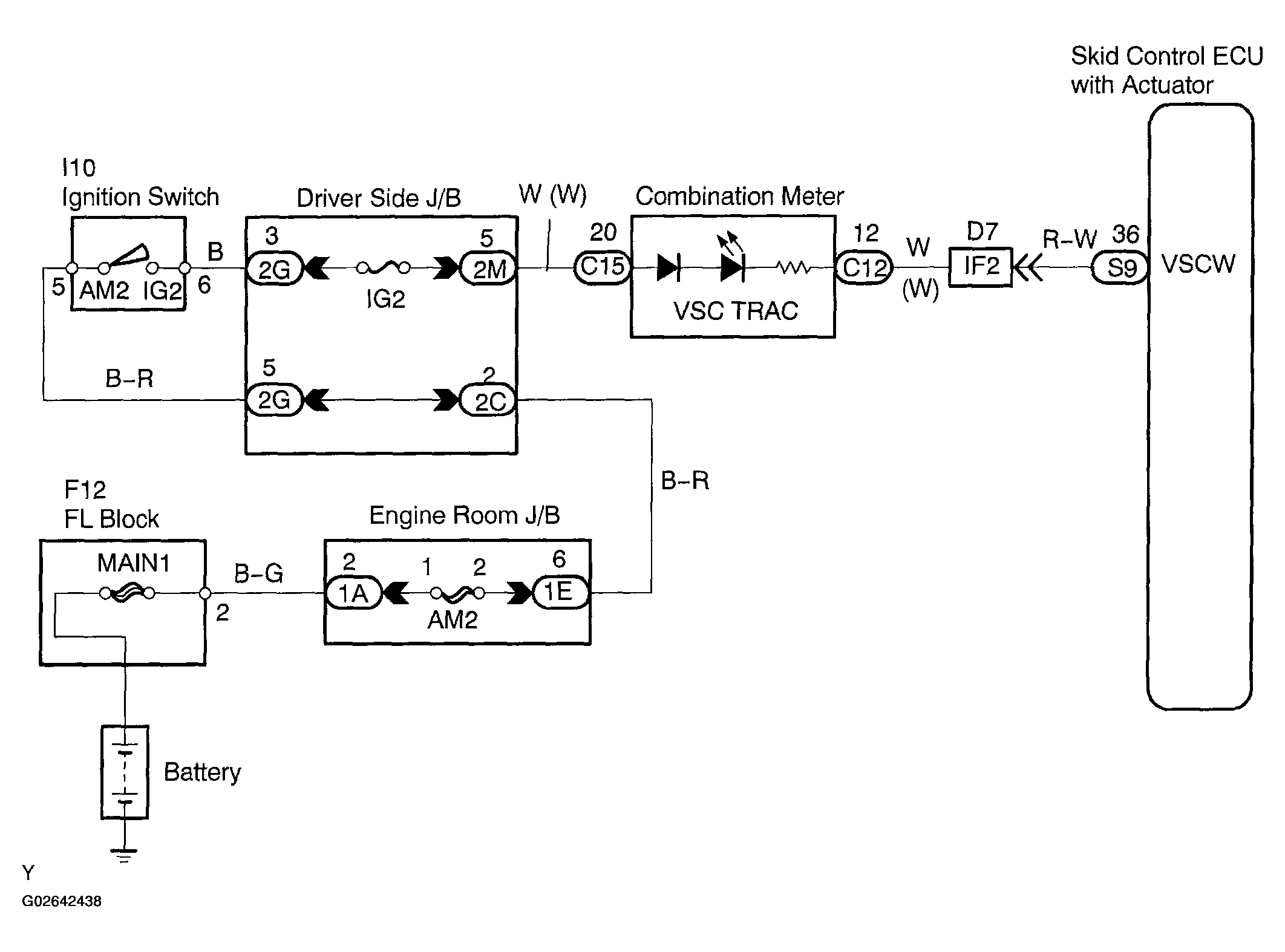

Fig 1: Wiring Diagram - VSC Warning Light Circuit

G02642438

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
