Brakes - Abs With EBD & BA & TRAC & VSC (Diagnostics)
>>
Circuit Inspection
>>
TRAC OFF Indicator Light, TRAC OFF Switch Circuit
>>
Wiring Diagram
TRAC OFF Indicator Light, TRAC OFF Switch Circuit: Wiring Diagram

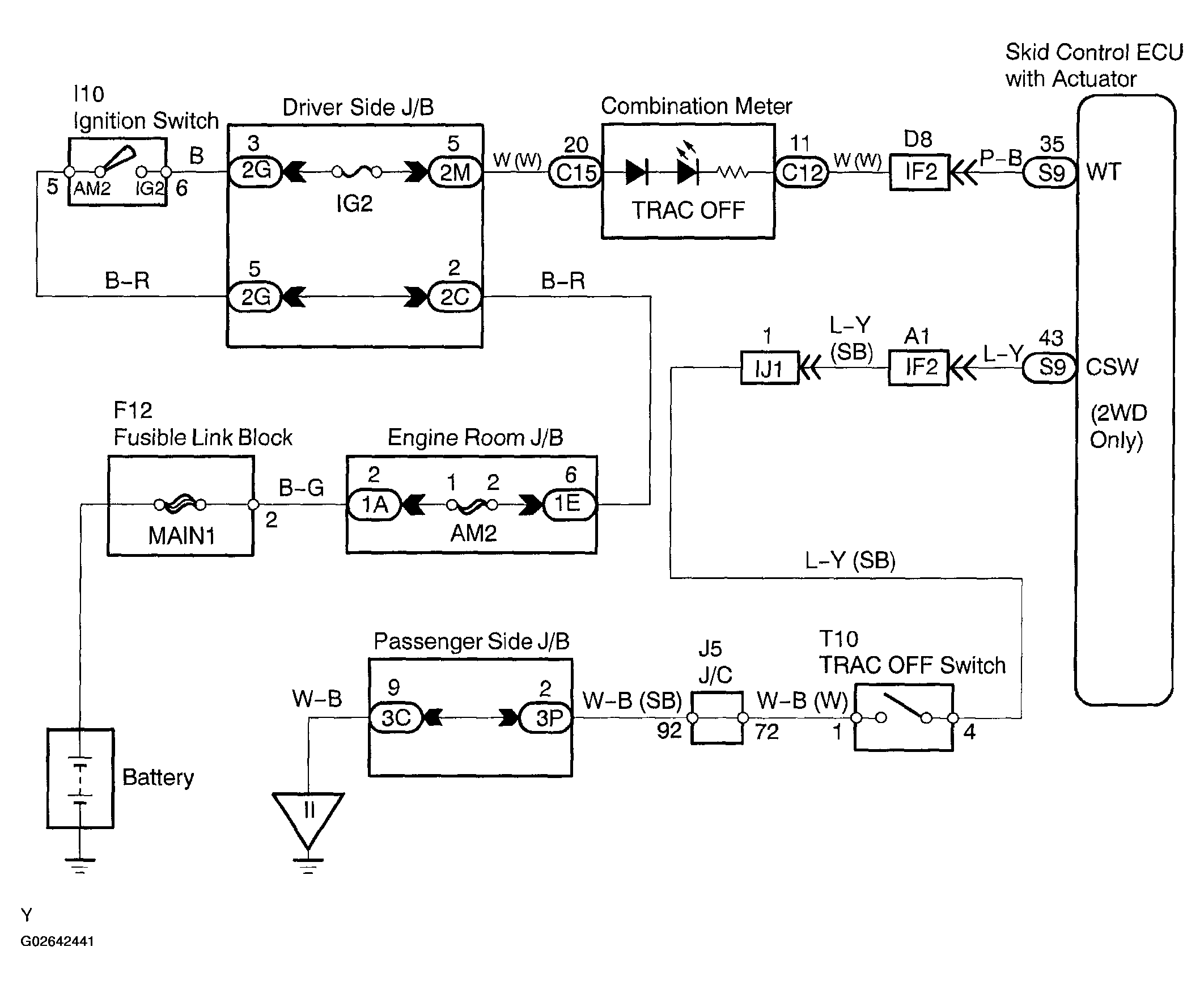

Fig 1: Wiring Diagram - TRAC OFF Indicator Light, TRAC OFF Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
