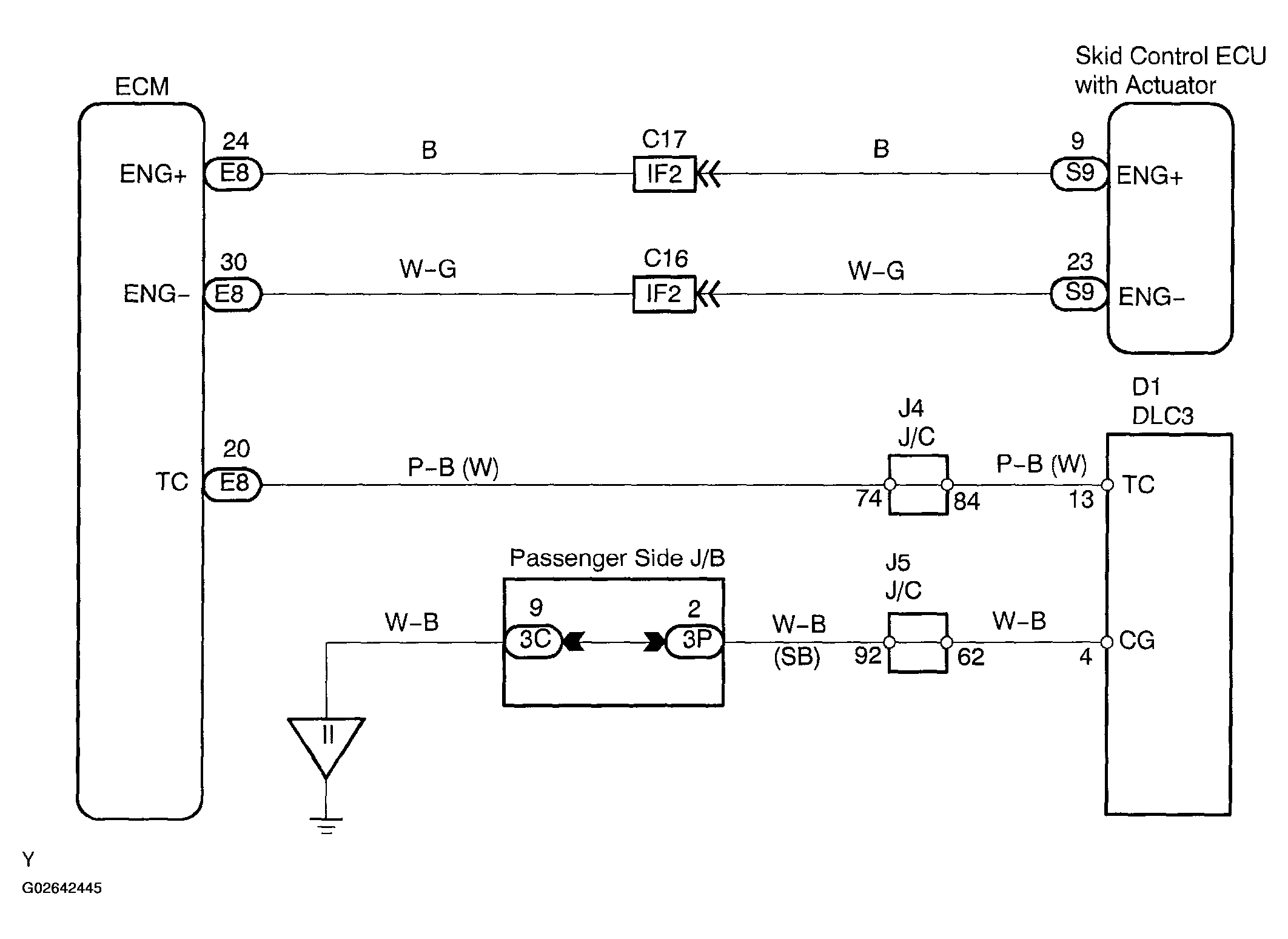

Home >> Toyota >> 2005 >> RAV4 Base, AWD, Standard >> Repair and Diagnosis >> Brakes >> Anti-Lock Brakes >> Brakes - Abs With EBD & BA & TRAC & VSC (Diagnostics) >> Circuit Inspection >> TC Terminal Circuit >> Wiring Diagram
