Diagnostic Trouble Codes Always ON* Malfunction in Skid Control ECU: Wiring Diagram

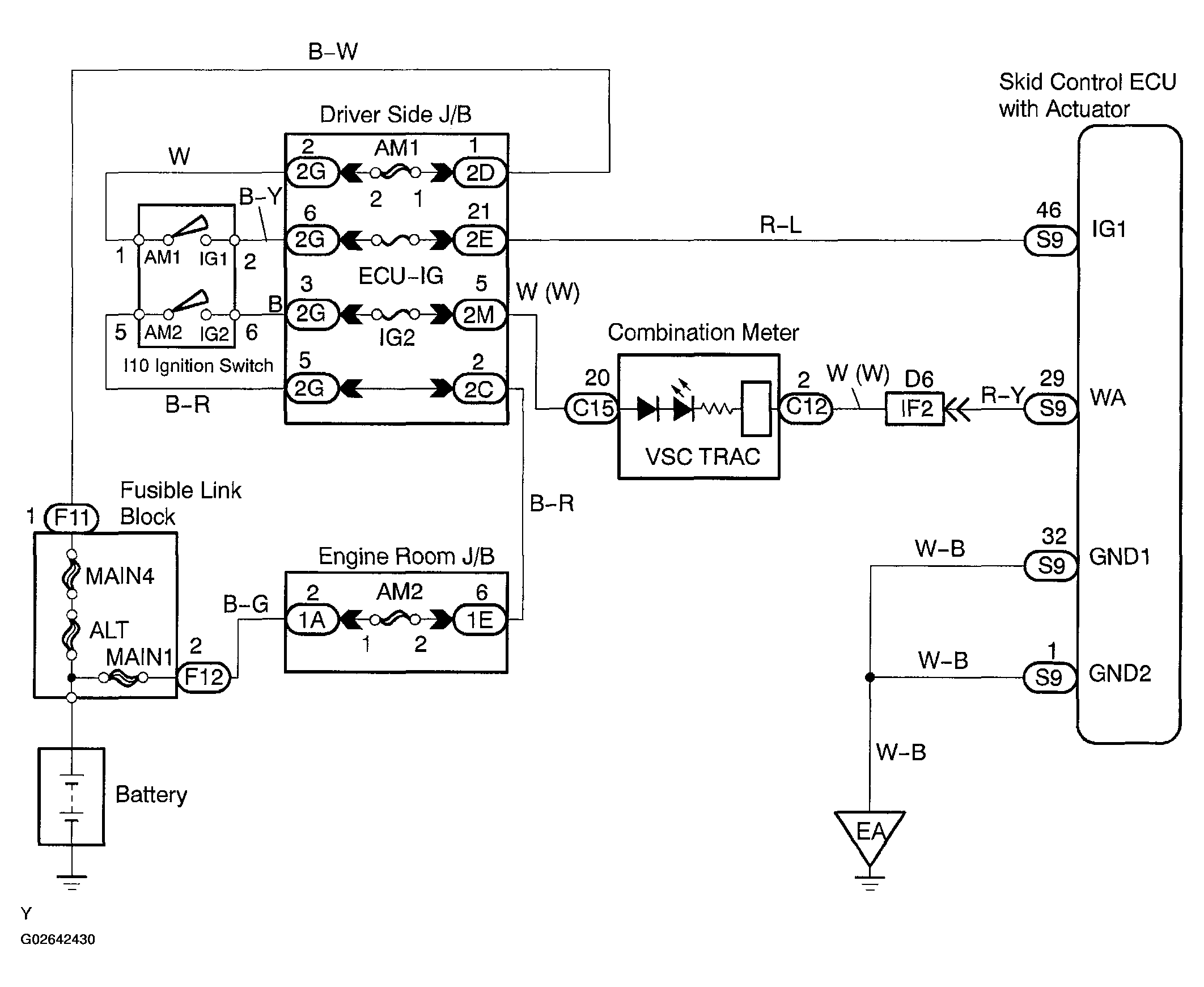

Fig 1: Wiring Diagram - Skid Control ECU Internal Circuit
G02642430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

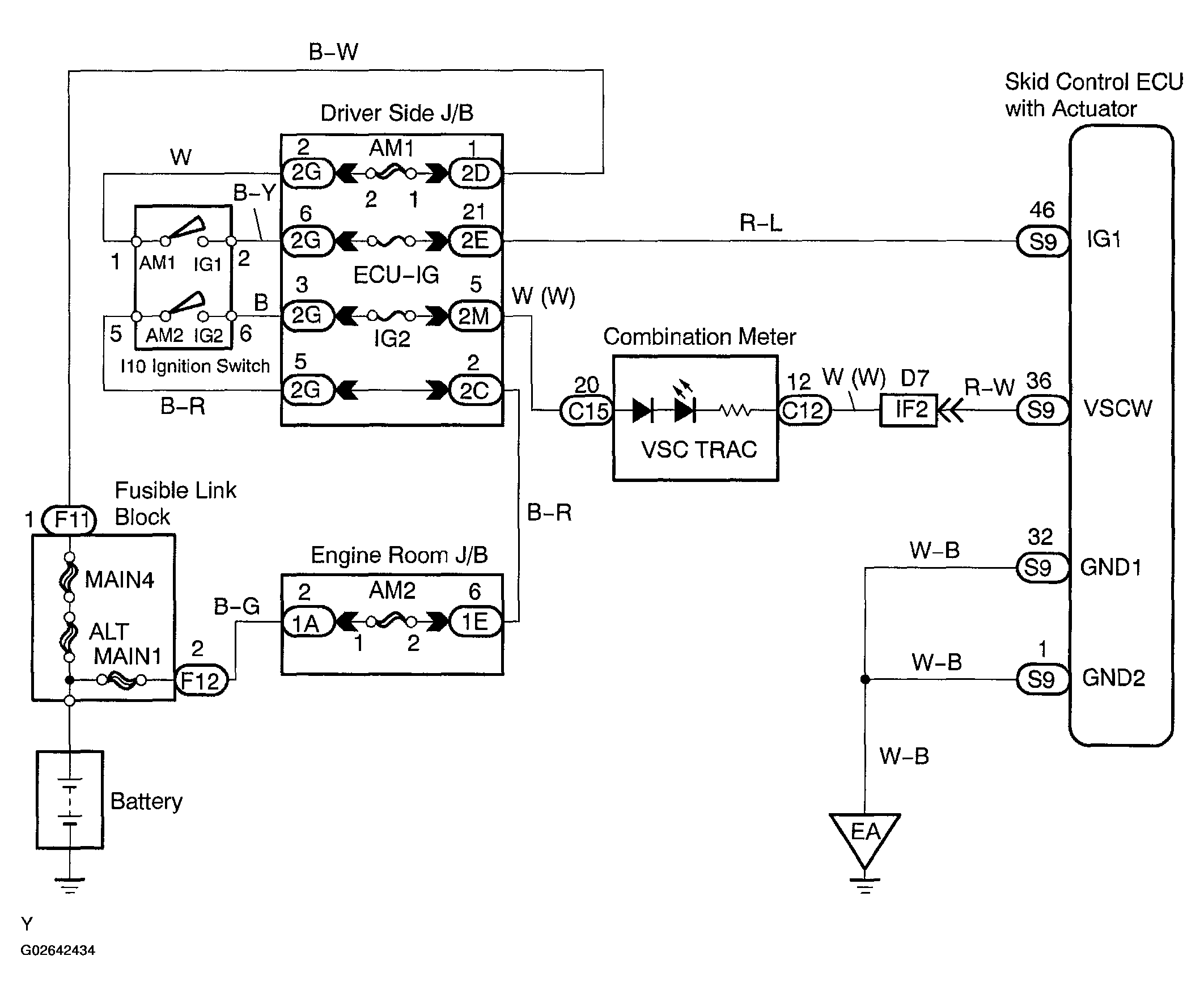

Fig 1: Skid Control ECU Internal Circuit
G02642434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
