DTC C1251/51: ABS Pump Motor Lock: Wiring Diagram

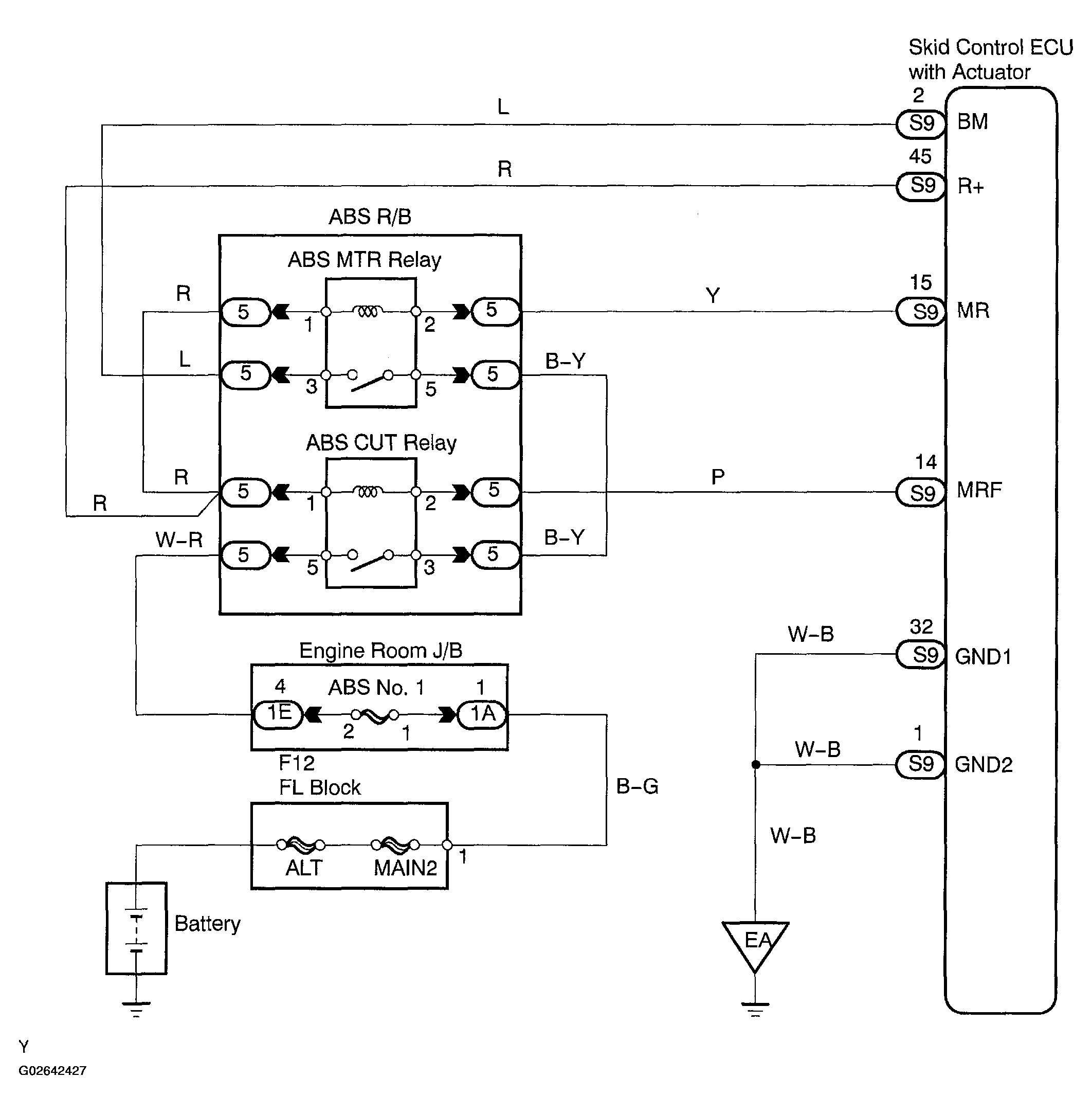

Fig 1: Wiring Diagram - ABS Pump Motor Lock

G02642427

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
