DTC C1249/49: Stop Light Switch Circuit: Wiring Diagram

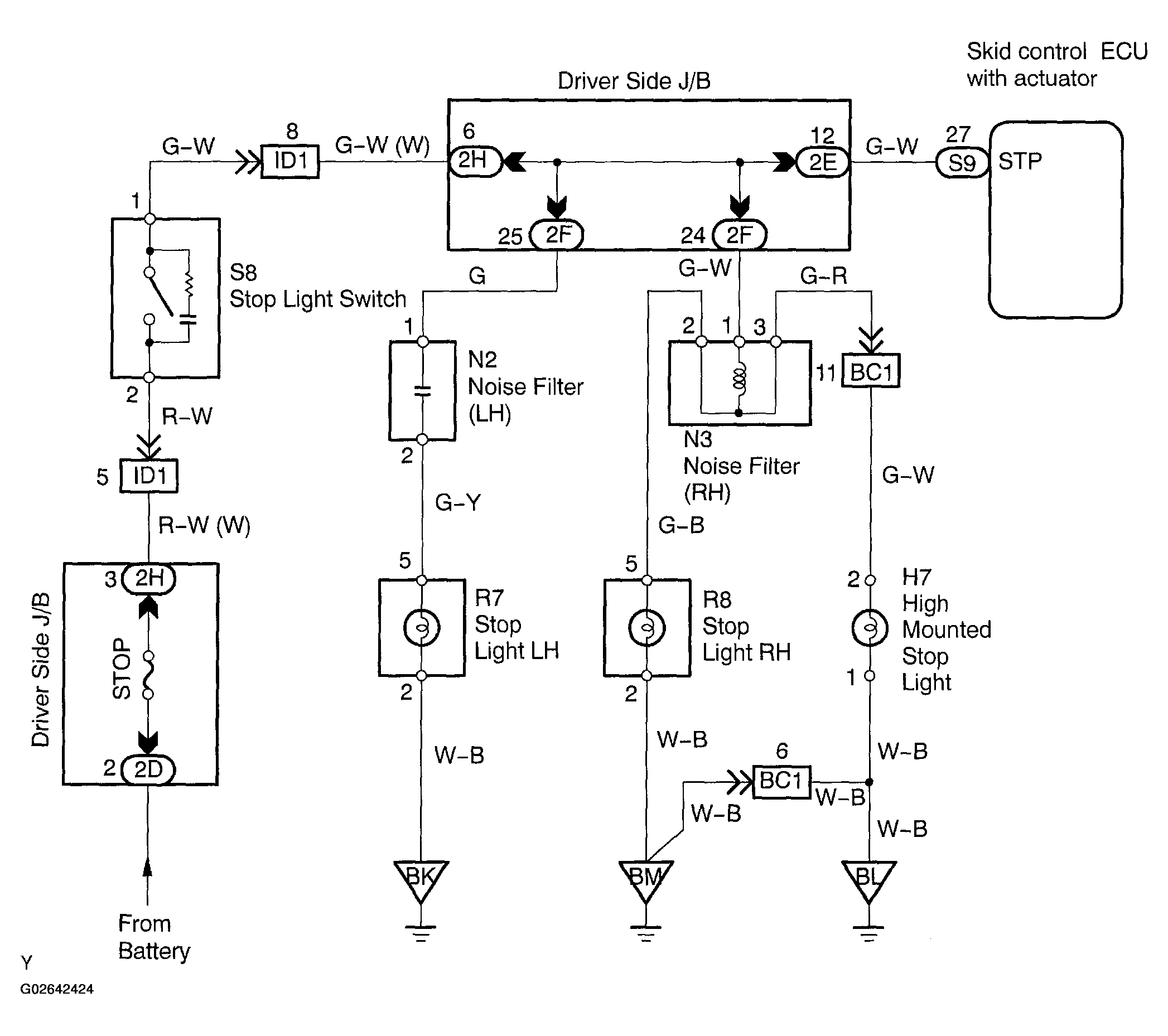

Fig 1: Wiring Diagram - Stop Light Switch Circuit

G02642424

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
