Circuit Description

The master cylinder pressure sensor is connected to the skid control ECU in the actuator.

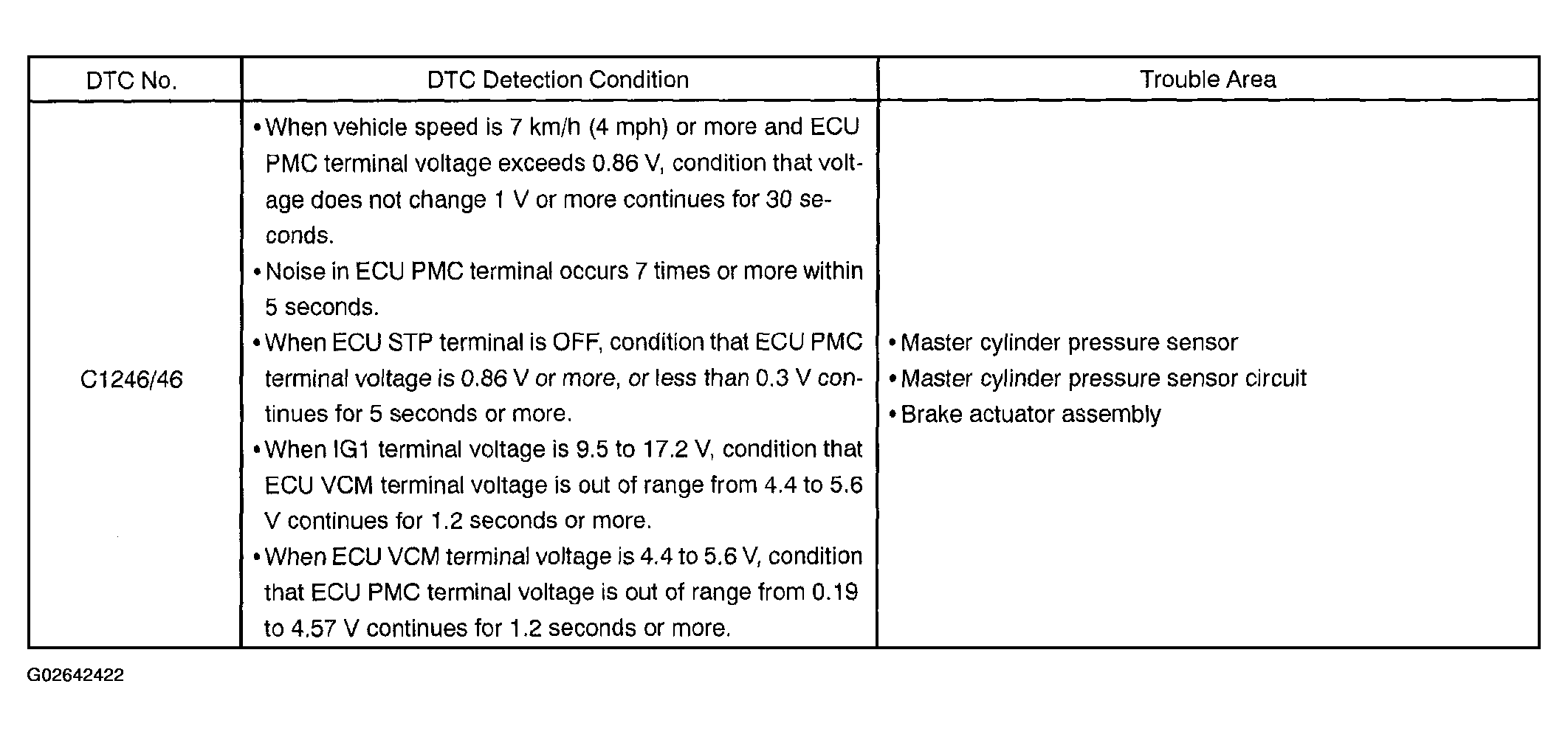

Fig 1: DTC Detection Condition And Trouble Area Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
