DTC C1241/41: IG Power Source Circuit: Wiring Diagram

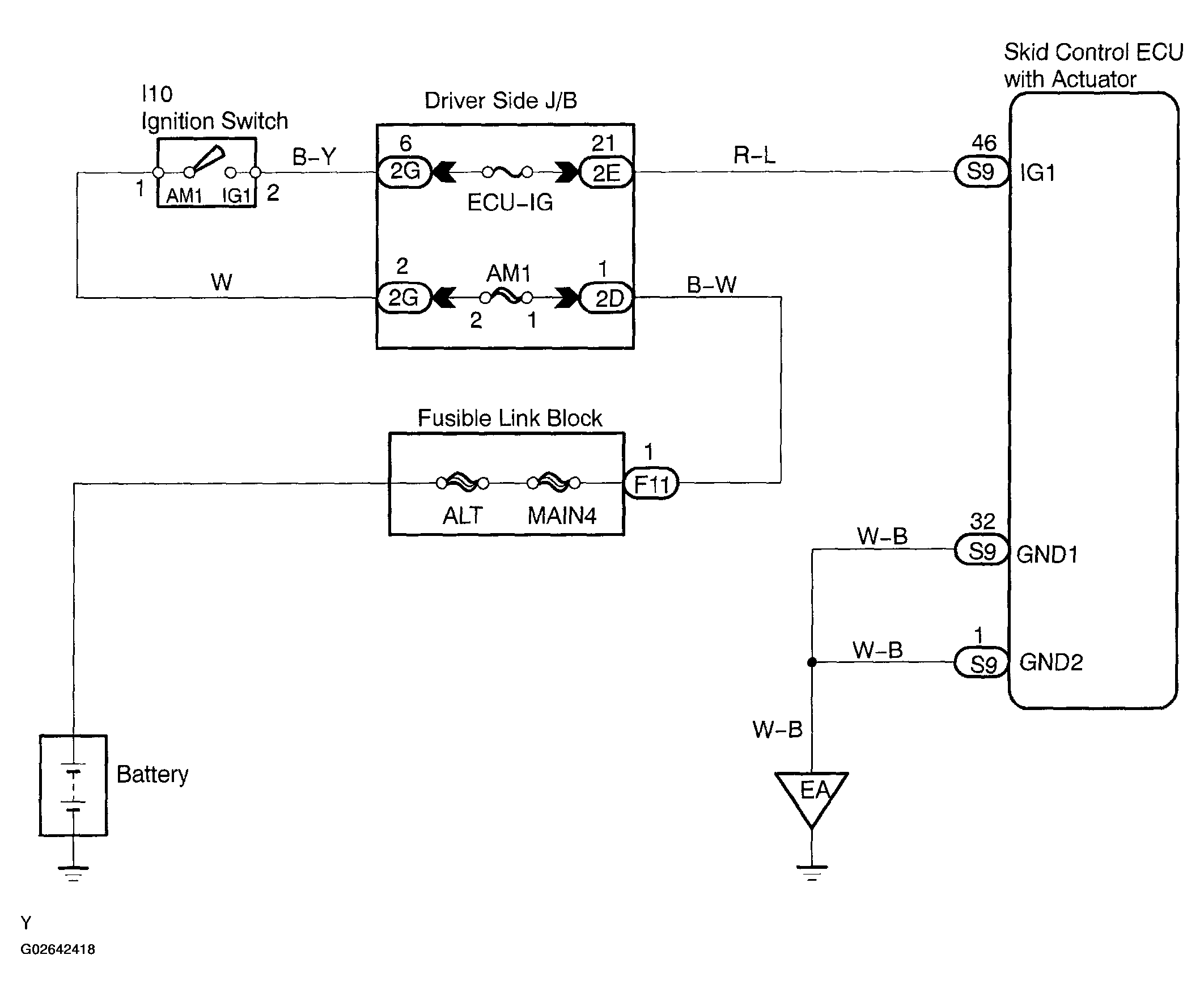

Fig 1: Wiring Diagram - IG Power Source Circuit

G02642418

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
