DTC C1231/31: Steering Angle Sensor Circuit: Wiring Diagram

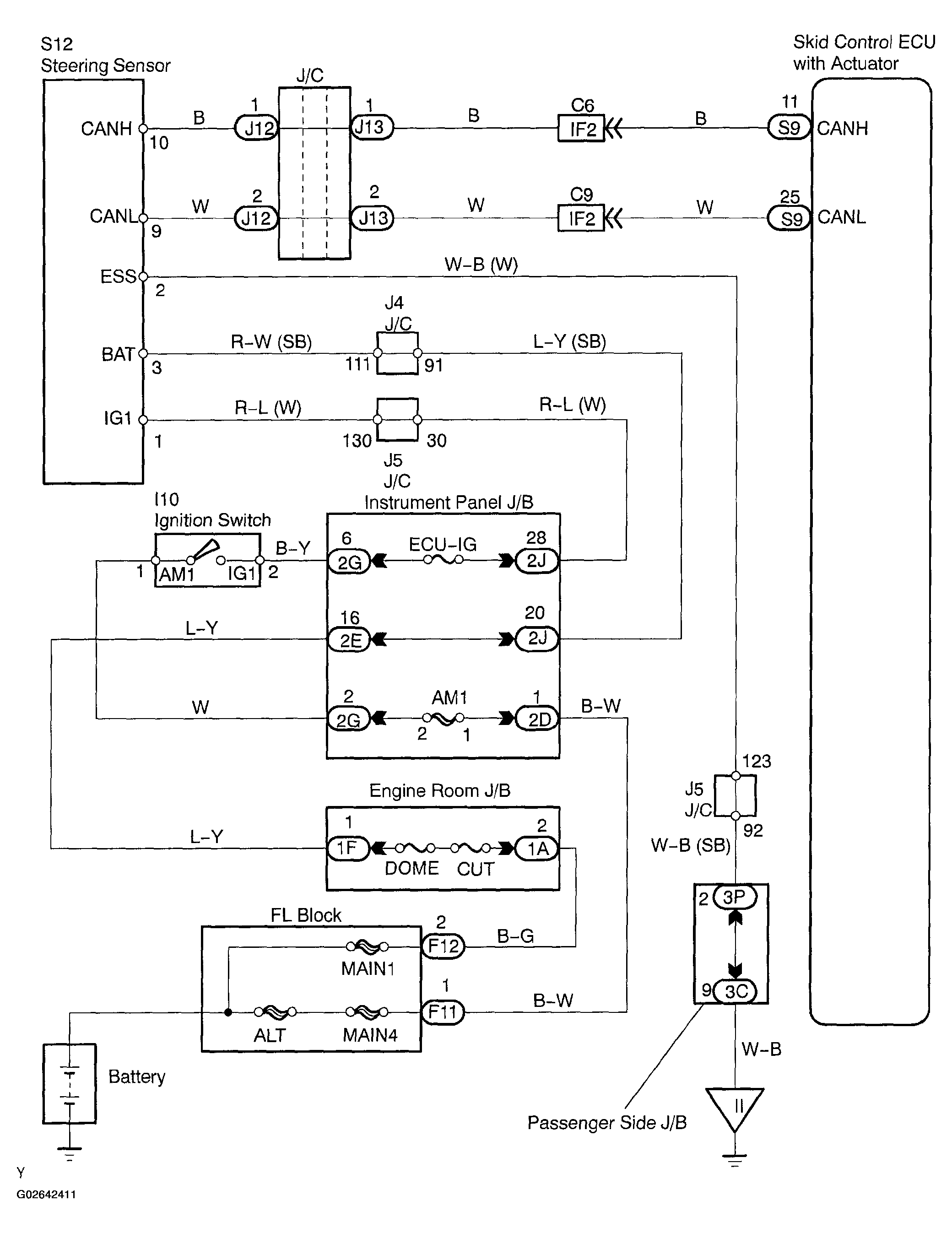

Fig 1: Wiring Diagram - Steering Angle Sensor Circuit

G02642411

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
