Circuit Description

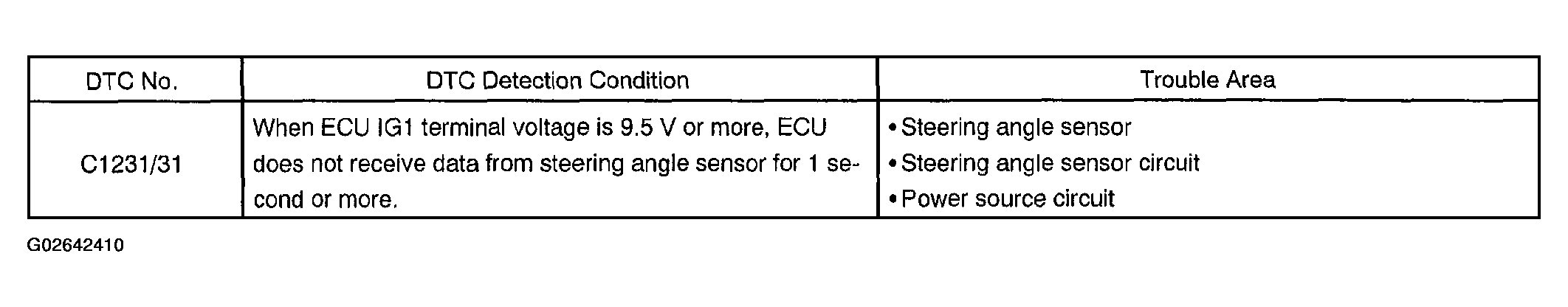

The steering angle sensor signal is sent to the skid control ECU through the CAN communication system. When there is malfunction in communication, it will be detected by the diagnosis function of the CAN communication system.
The steering angle sensor signal is sent to the skid control ECU through the CAN communication system. When there is malfunction in communication, it will be detected by the diagnosis function of the CAN communication system.
