DTC C1225/25: VSC Solenoid Circuit: Wiring Diagram

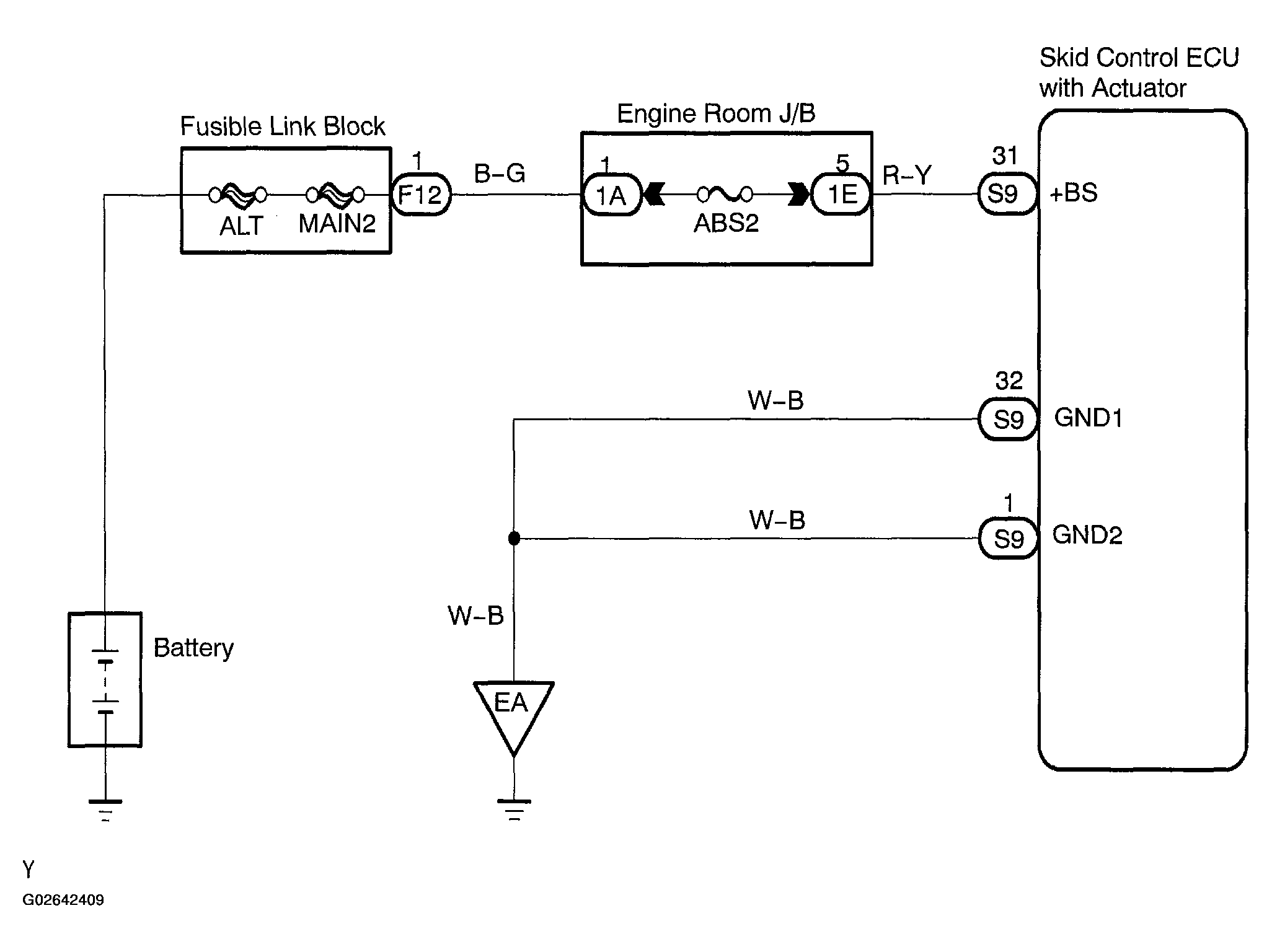

Fig 1: Wiring Diagram - VSC Solenoid Circuit

G02642409

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
