Circuit Description

This solenoid turns on when signals are received from the ECU and controls the pressure acting on the wheel cylinders to control the braking force.

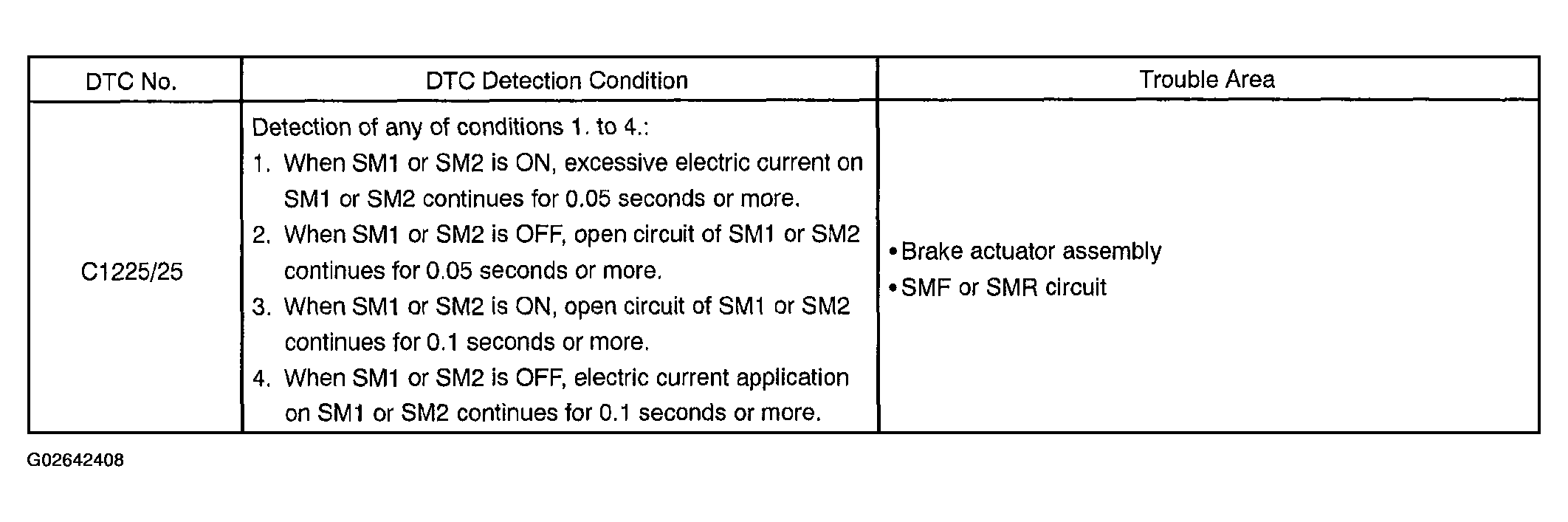

Fig 1: DTC Detection Condition And Trouble Area Chart
