Circuit Description

The skid control ECU receives engine revolution speed signals (NEO signals) from the ECM.

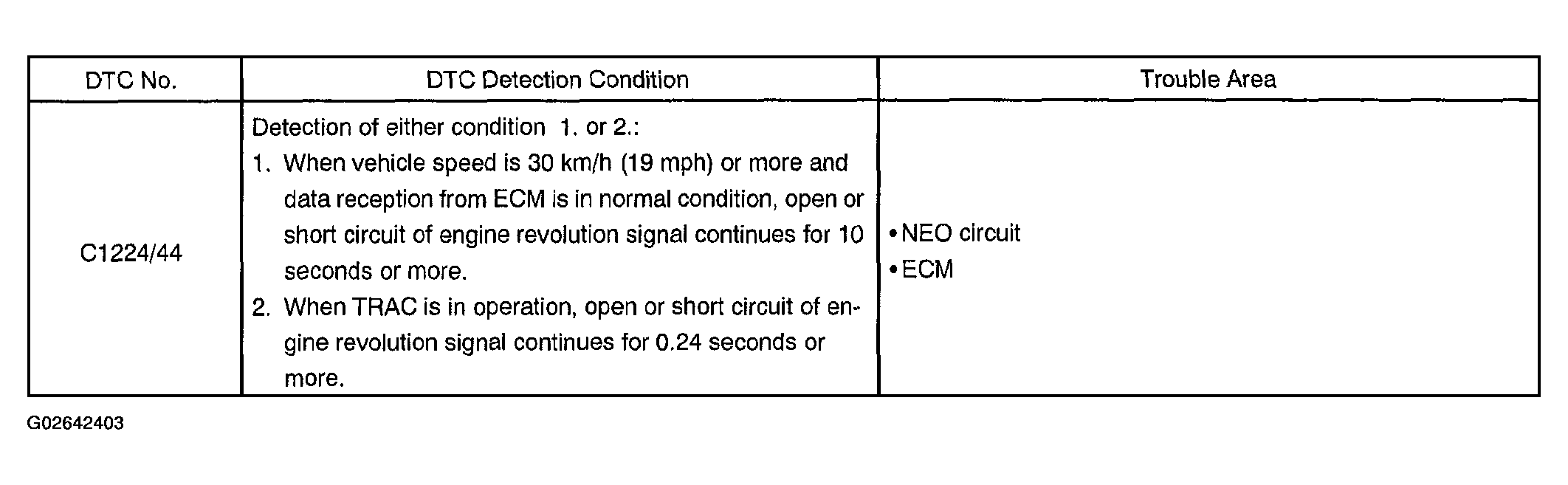

Fig 1: DTC Detection Condition And Trouble Area Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
