DTC C1210/36, C1336/39: Zero Point Calibration of Yaw Rate Sensor undone/Deceleration Sensor undone: Wiring Diagram

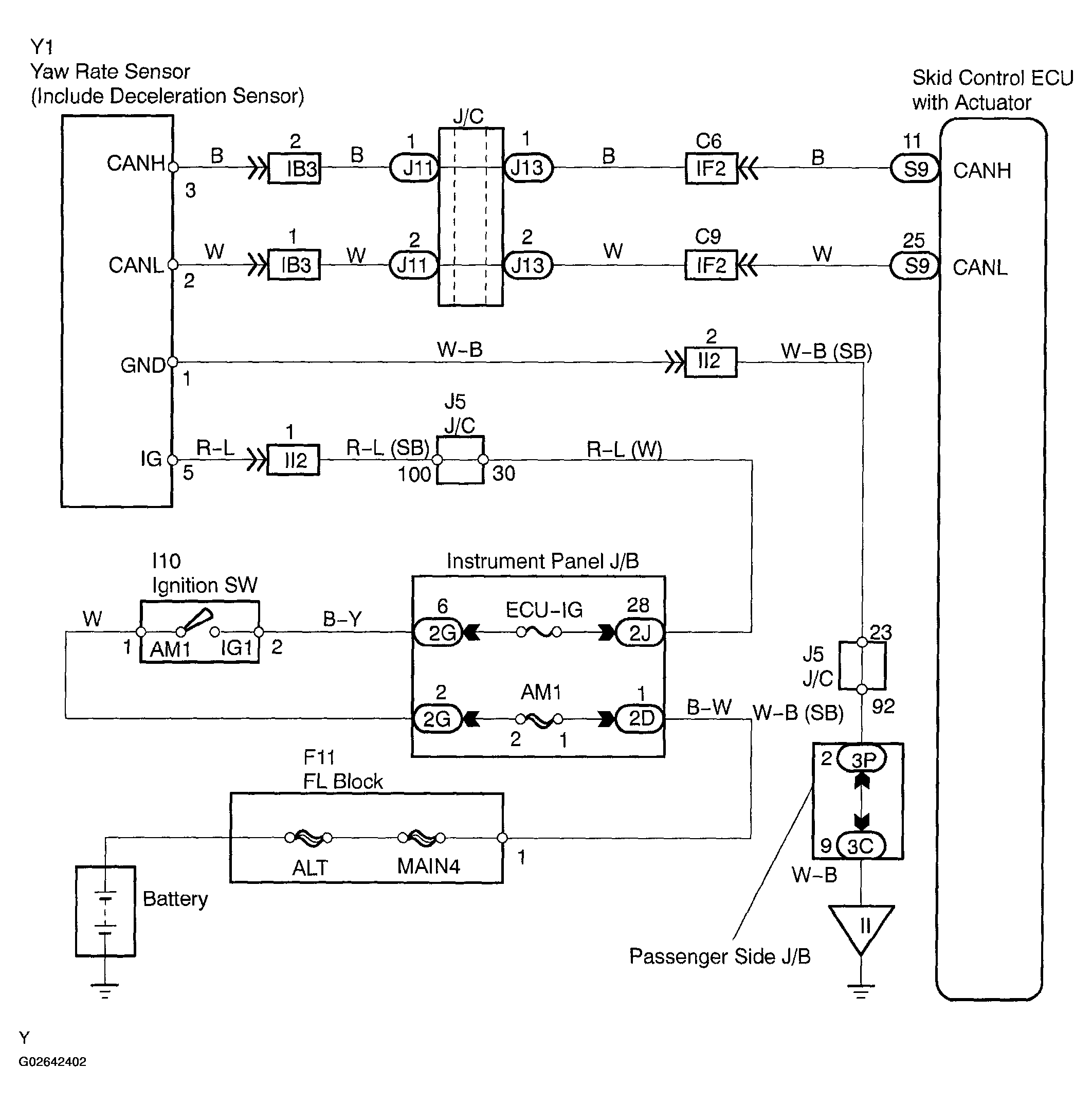

Fig 1: Wiring Diagram - Yaw Rate Sensor Circuit
G02642402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
