Circuit Description

The deceleration sensor is included in the yaw rate sensor.

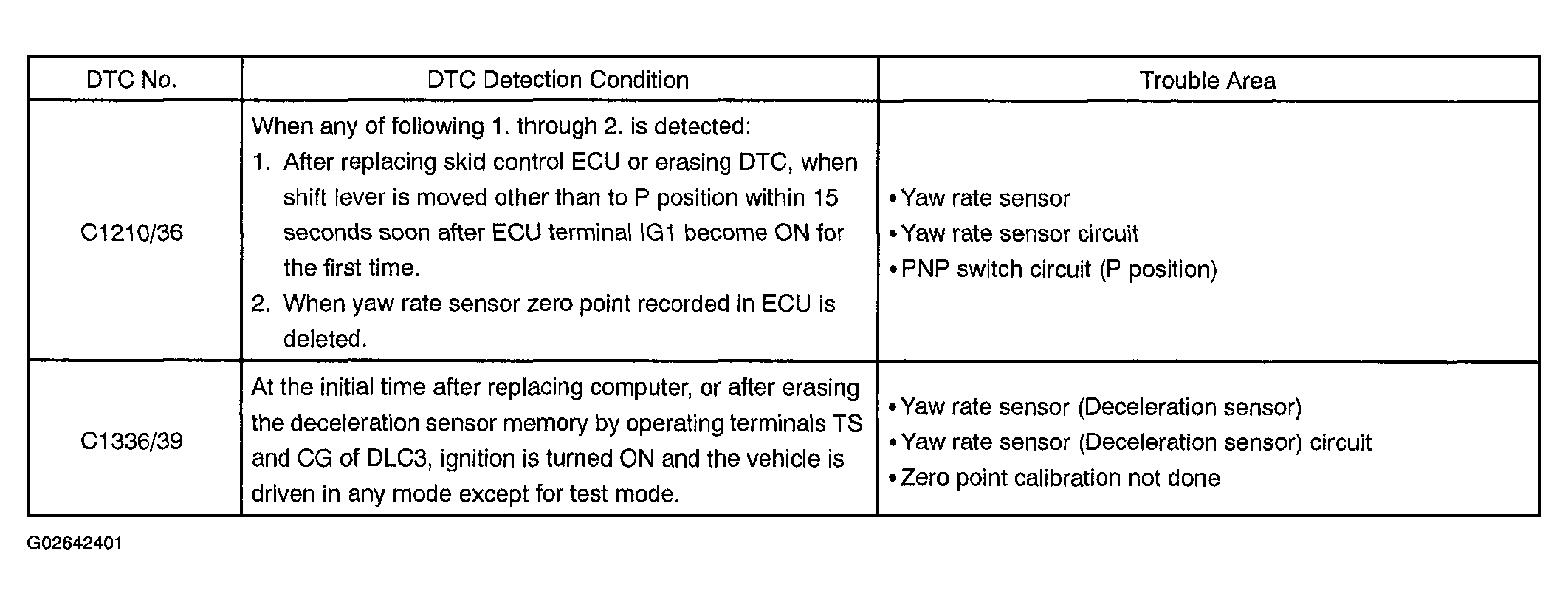

Fig 1: DTC Detection Condition And Trouble Area Chart

G02642401

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
