DTC C1203/53: Malfunction in ECM Communication Circuit: Wiring Diagram

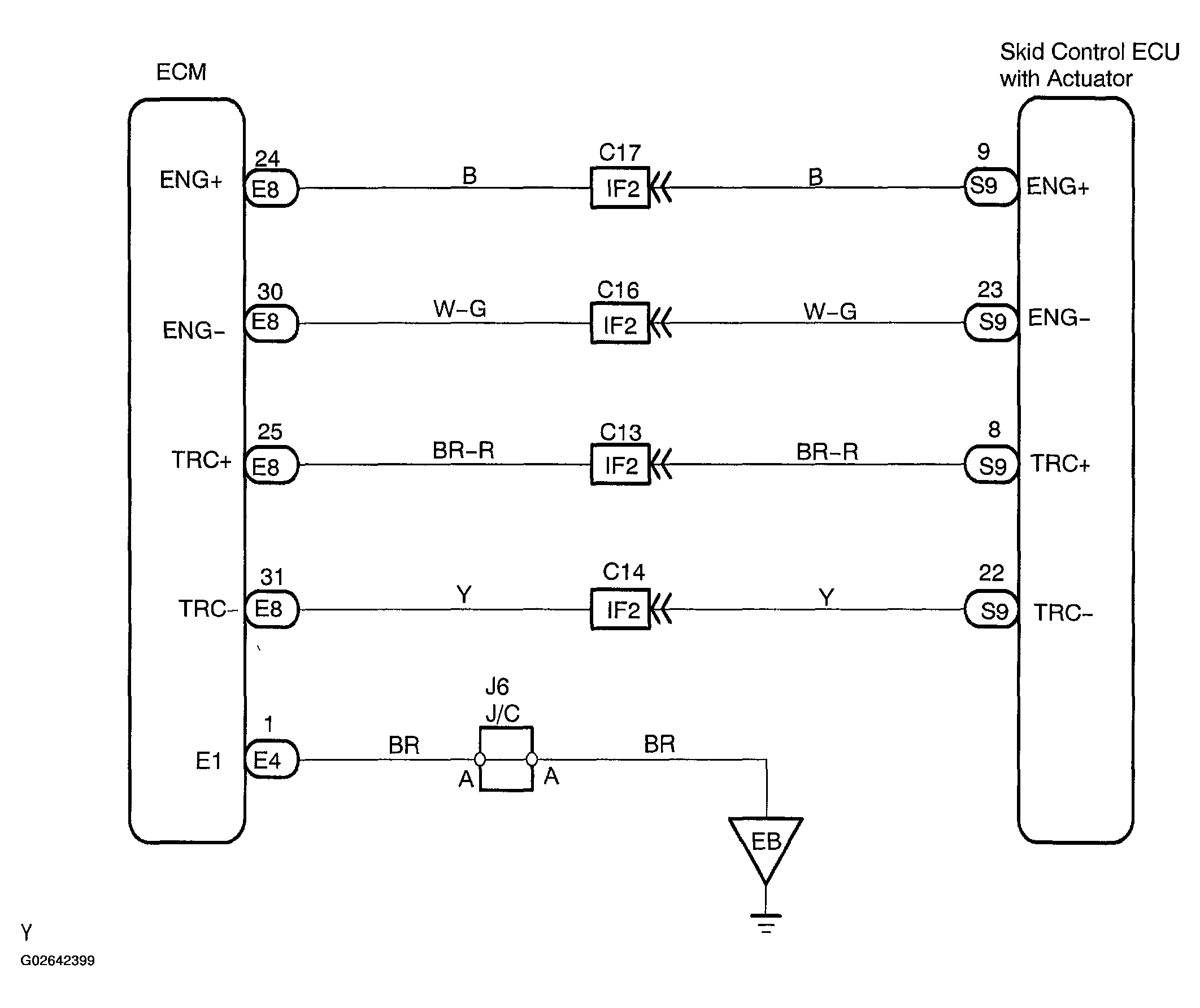

Fig 1: Wiring Diagram - ECM Communication Circuit

G02642399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
