Circuit Description

The circuit is used to send TRAC & VSC control information from the skid control ECU to the ECM (TRC+, TRC-), and engine control information from the ECM to the skid control ECU (ENG+, ENG-).

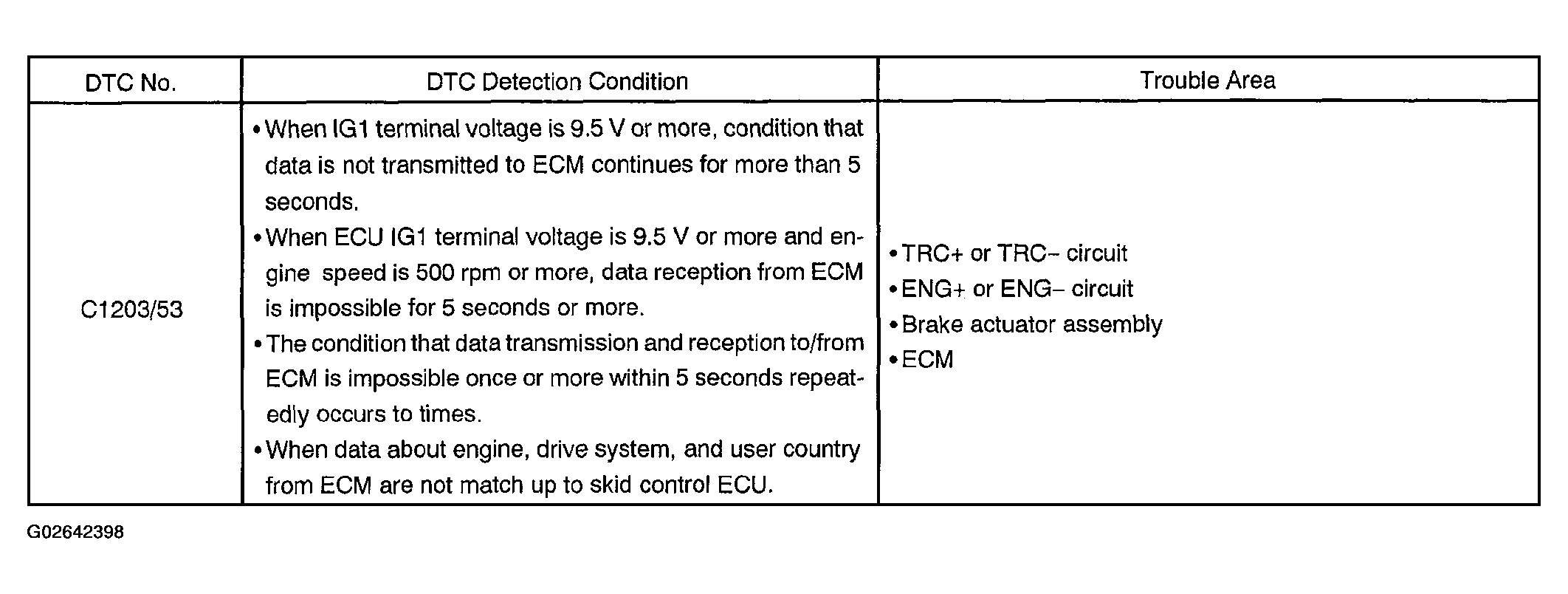

Fig 1: DTC Detection Condition And Trouble Area Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
