Circuit Description

The ABS motor relay supplies power to the ABS pump motor. While the ABS & TRAC & VSC are activated, the ECU switches the ABS motor relay ON and operates the ABS pump motor.

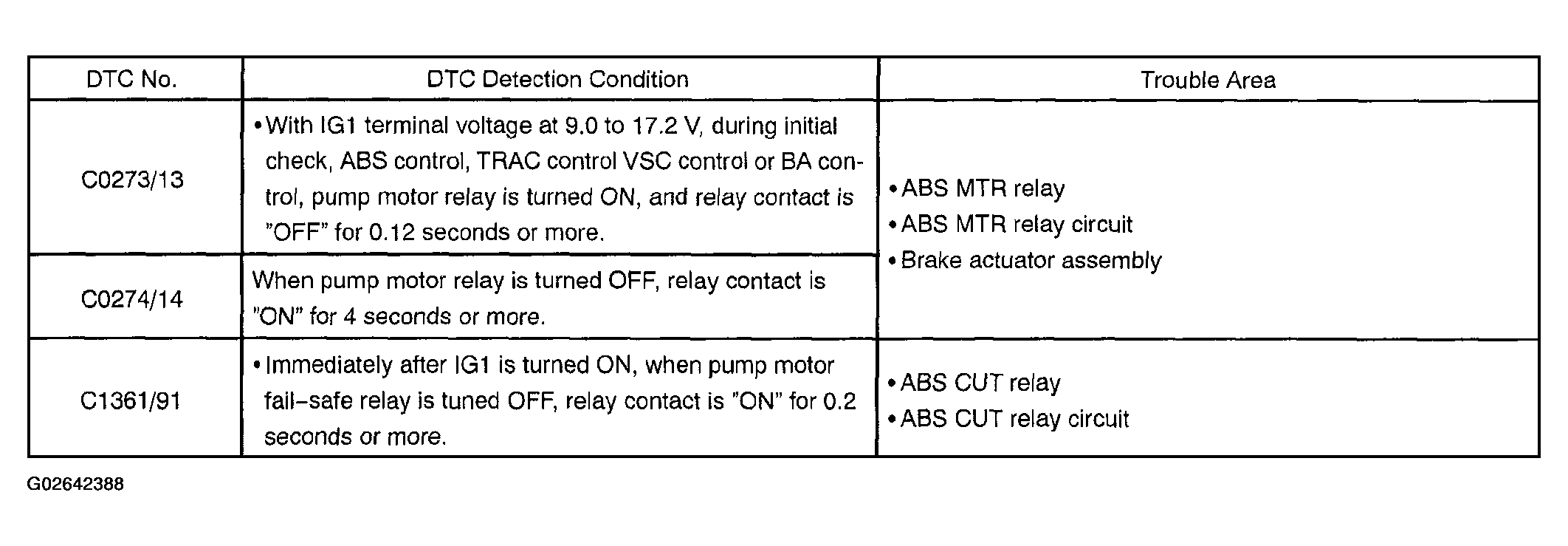

Fig 1: DTC Detection Condition And Trouble Area Chart
G02642388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
