DTC C0200/31, C0200/32, C0200/33, C0215/34, C1235/35, C0200/36, C0200/38, C1239/39: Speed Sensor Signal Malfunction: Wiring Diagram

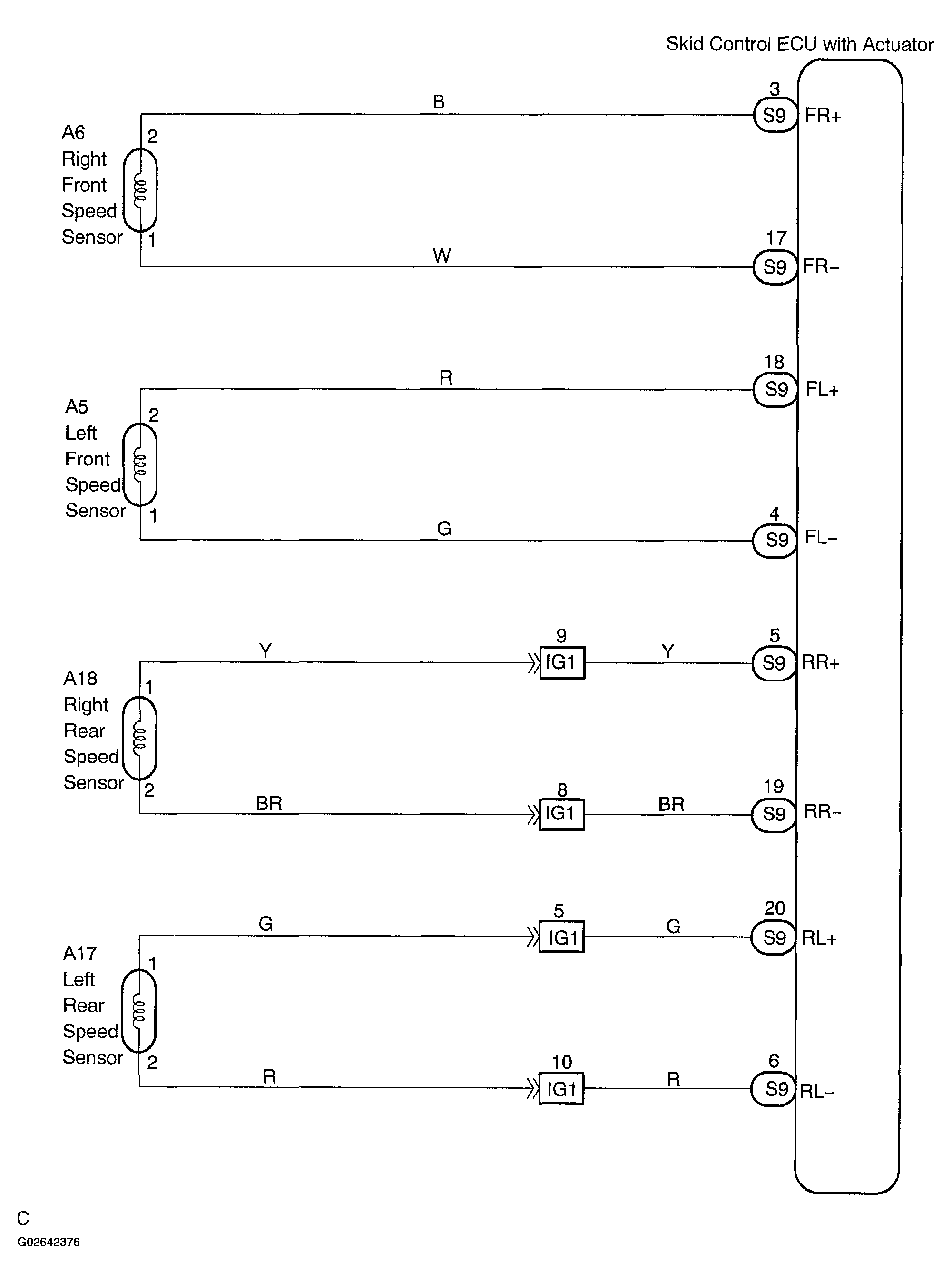

Fig 1: Wiring Diagram - Speed Sensor Circuit
G02642376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
