Brake Warning Light Circuit: Wiring Diagram

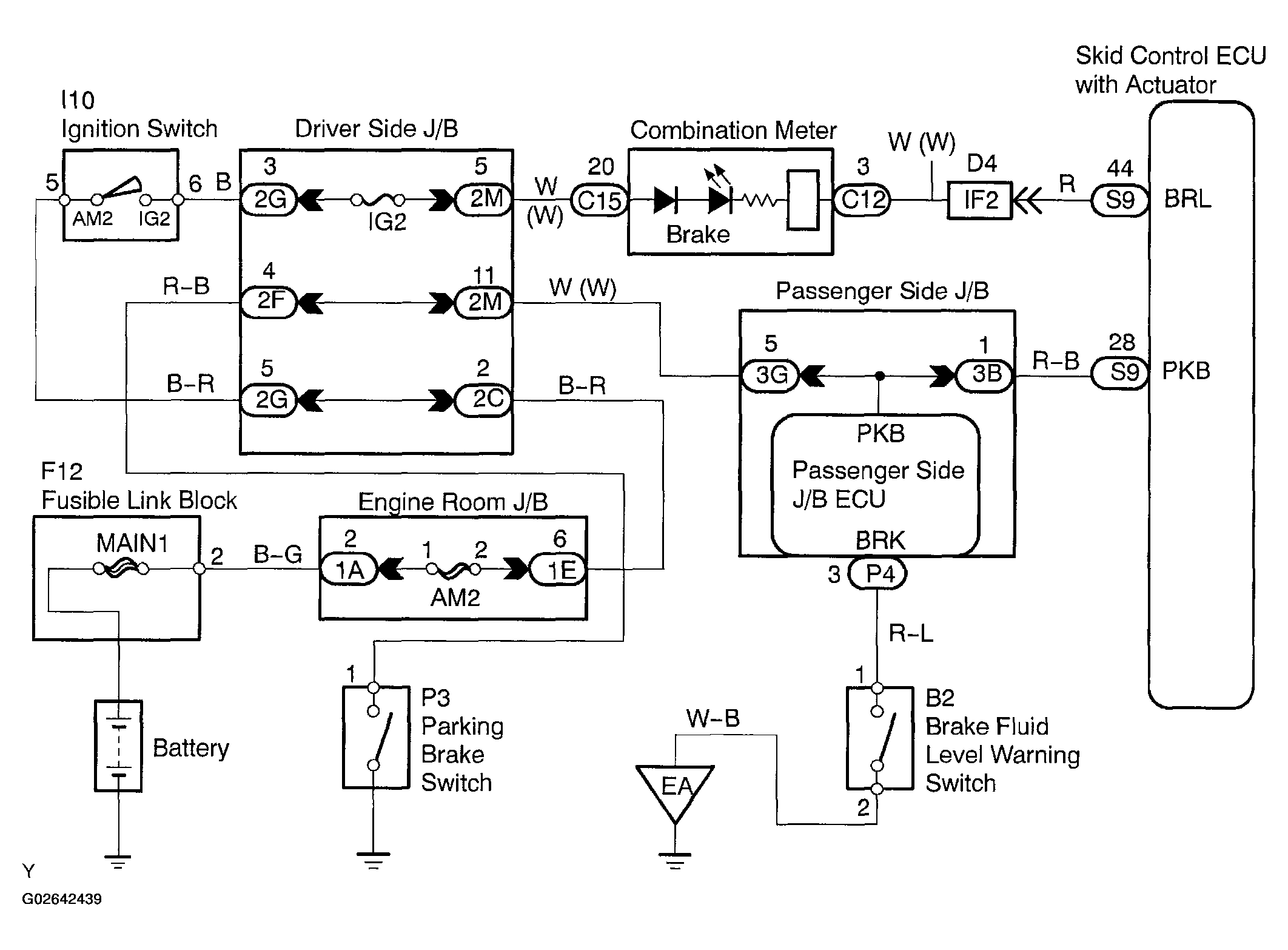

Fig 1: Wiring Diagram - Brake Warning Light Circuit

G02642439

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
