ABS Warning Light Circuit (Does not light up): Wiring Diagram

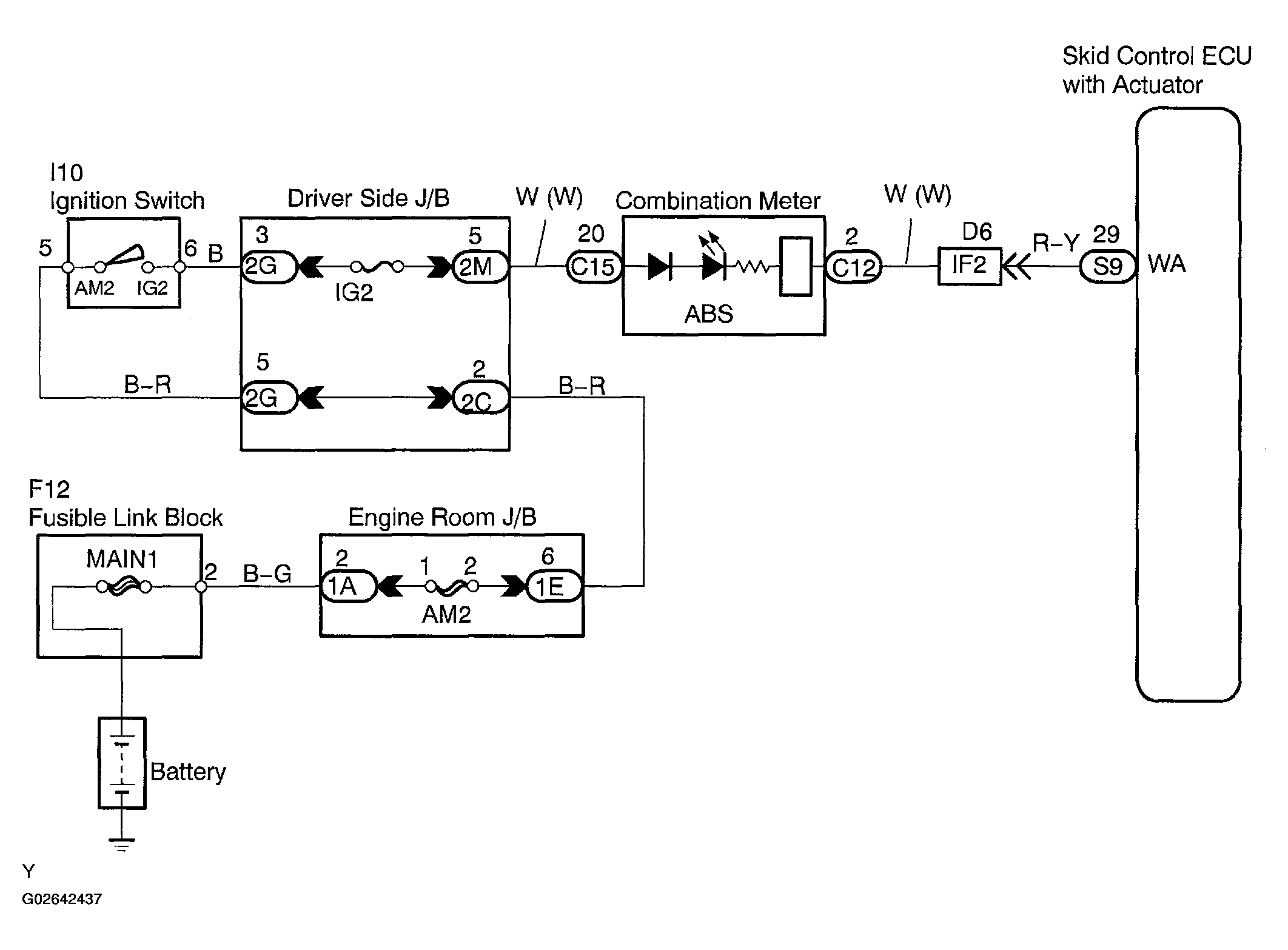

Fig 1: Wiring Diagram - ABS Warning Light Circuit

G02642437

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
