DTC C0226/21, C0236/22, C0246/23, C0256/24: Open or Short Circuit in Brake Actuator Solenoid Circuit: Wiring Diagram

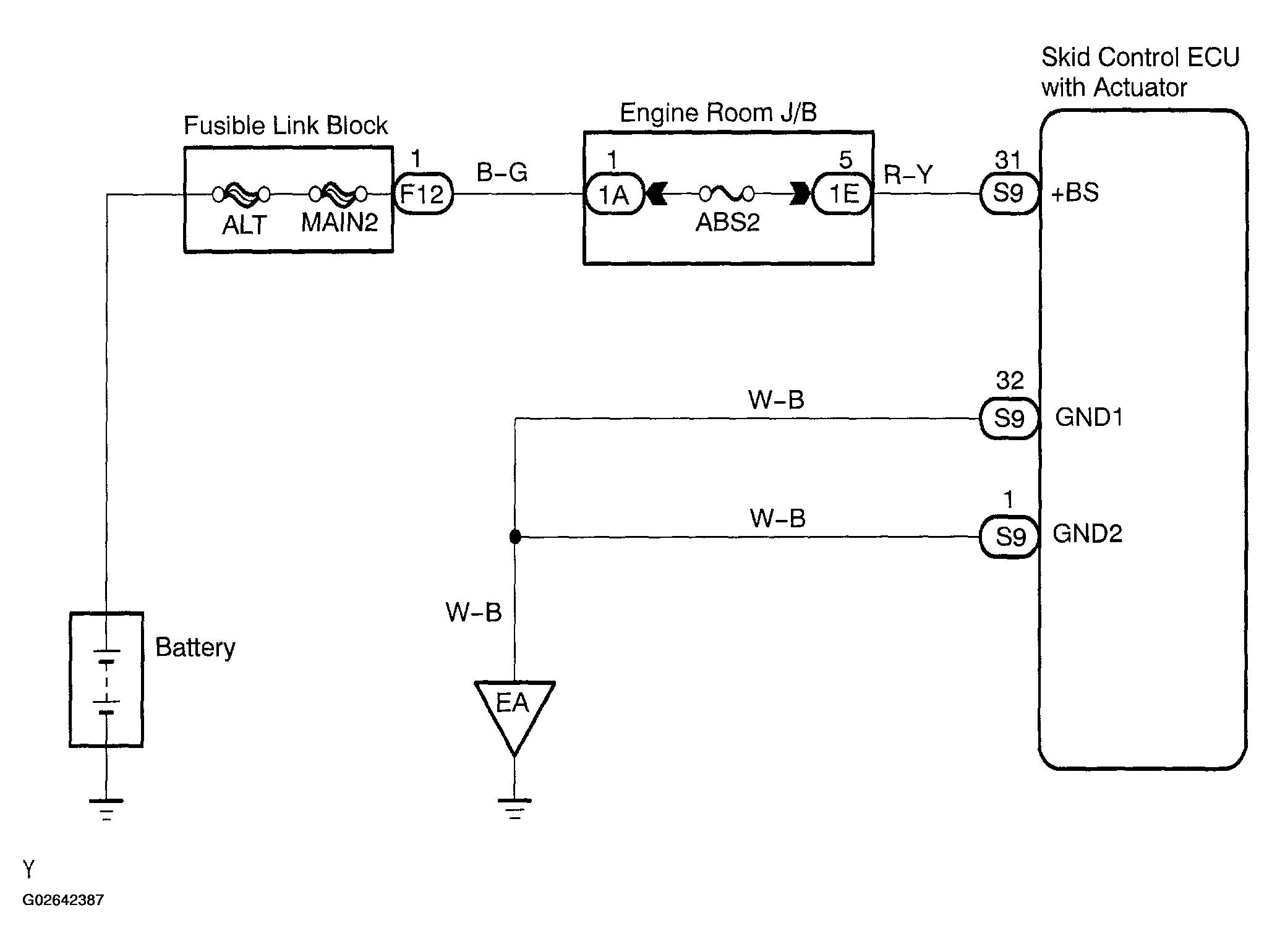

Fig 1: Wiring Diagram - Brake Actuator Solenoid Circuit
G02642387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
