Steering Sensor: Replacement

  1. DISCONNECT BATTERY NEGATIVE TERMINAL (See  SUPPLEMENTAL RESTRAINT SYSTEM  )
  2. REMOVE STEERING WHEEL COVER LOWER NO.2
  3. REMOVE STEERING WHEEL COVER LOWER NO.3
  4. REMOVE HORN BUTTON ASSY (See  REPLACEMENT  )
  5. REMOVE STEERING WHEEL ASSY (See  OVERHAUL  )

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  6. REMOVE TILT LEVER BRACKET (See  OVERHAUL  )
  7. REMOVE STEERING COLUMN COVER (See  OVERHAUL  )
  8. REMOVE SPIRAL CABLE SUB-ASSY (See  SPIRAL CABLE SUB-ASSY  )
  9. REMOVE STEERING SENSOR
    1. Unclamp the 6 claws and remove the steering sensor from the spiral cable.
  10. INSTALL STEERING SENSOR
    1. Aligning the 2 locating pins as shown in the illustration, engage the 6 claws and install the steering sensor to the spiral cable.

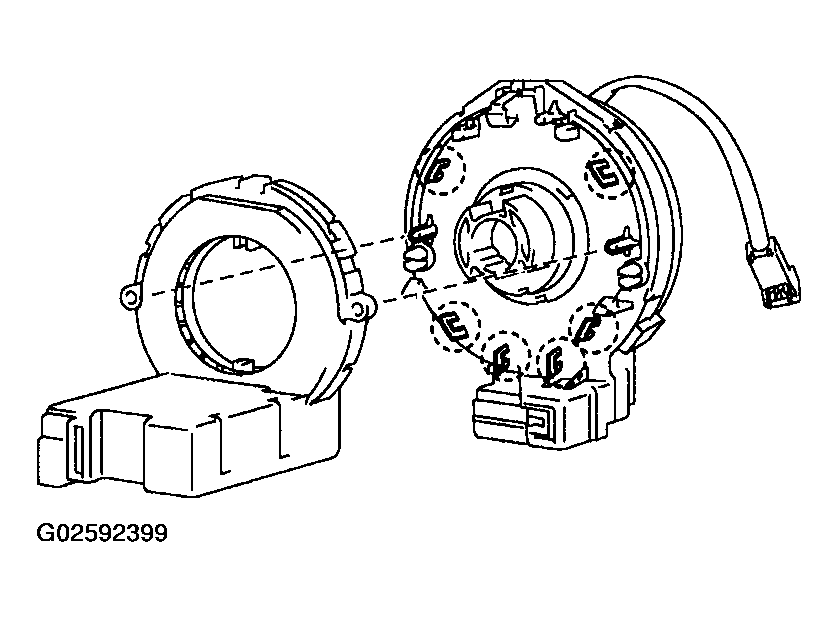

    Fig 1: Installing Steering Sensor
    G02592399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSPECT SPIRAL CABLE SUB-ASSY (See  SPIRAL CABLE SUB-ASSY  )
  12. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  13. INSTALL SPIRAL CABLE SUB-ASSY (See  SPIRAL CABLE SUB-ASSY  )
  14. CENTER SPIRAL CABLE (See  SPIRAL CABLE SUB-ASSY  )
  15. INSTALL STEERING COLUMN COVER (See  OVERHAUL  )
  16. INSTALL TILT LEVER BRACKET (See  OVERHAUL  )
  17. INSTALL STEERING WHEEL ASSY (See  OVERHAUL  )
  18. INSTALL HORN BUTTON ASSY (See  REPLACEMENT  )
  19. INSPECT HORN BUTTON ASSY (See  ON-VEHICLE INSPECTION  )
  20. CONNECT BATTERY NEGATIVE TERMINAL
  21. PERFORM INITIALIZATION (See  REPAIR INSTRUCTION  )
  22. INSPECT SRS WARNING LIGHT (See  CHECK MODE PROCEDURE  )
