Front Speed Sensor: Replacement

1. Disconnect the connector of the speed sensor front LH.

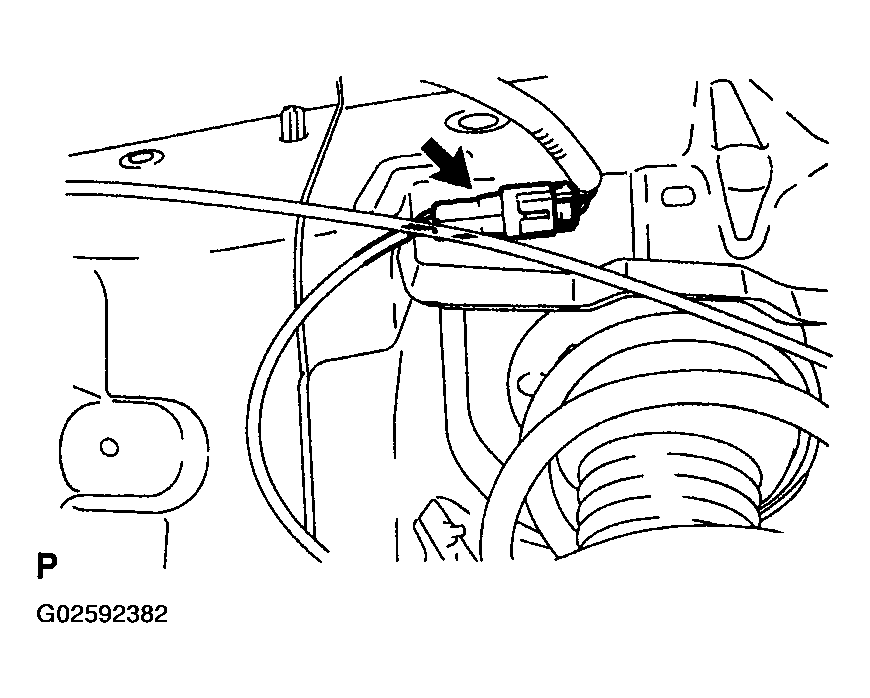

   Fig 1: Disconnecting Connector Of Speed Sensor Front LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt A and the bolt B. Remove the speed sensor front clamps from the body and front shock absorber.

   HINT:

   The bolt B is tightened together with the brake flexible hose clamp.

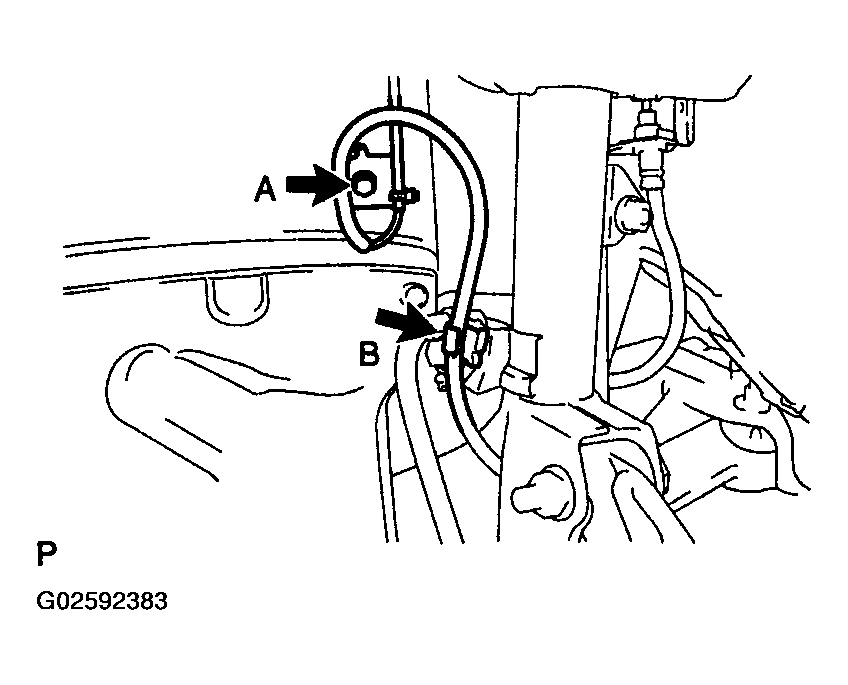

   Fig 2: Removing Speed Sensor Front Clamps From Body And Front Shock Absorber

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the clip from the front shock absorber.
4. Remove the bolt and speed sensor front.
   NOTE: Do not attach any foreign matter to the tip or connecting portion of the speed sensor front.

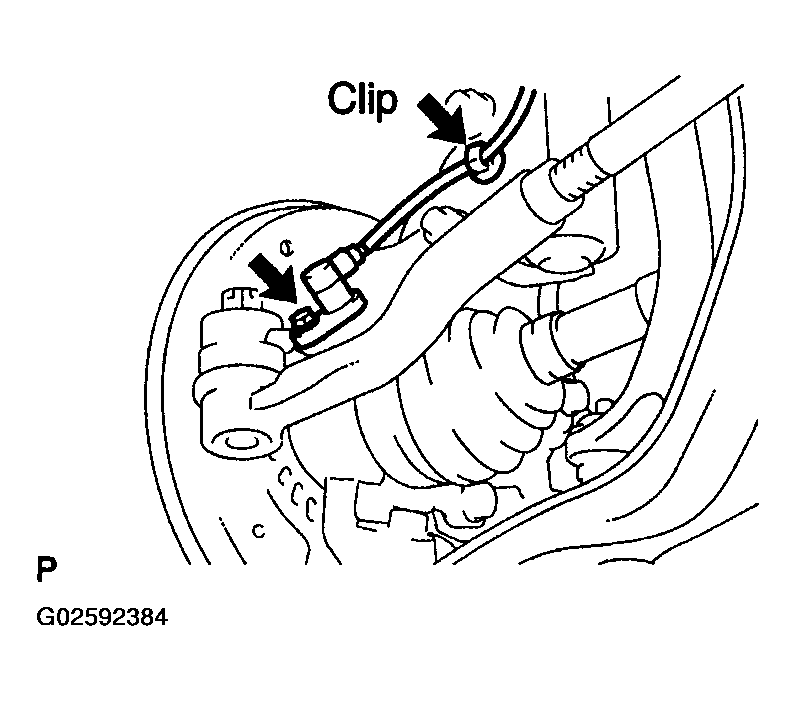

   Fig 3: Removing Bolt And Speed Sensor Front

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the speed sensor front with the bolt.

   Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

   NOTE: Check that there is no foreign matter attached to the tip and connecting portion of the speed sensor front  .

   HINT:

   Clean the connecting portion of the speed sensor front.

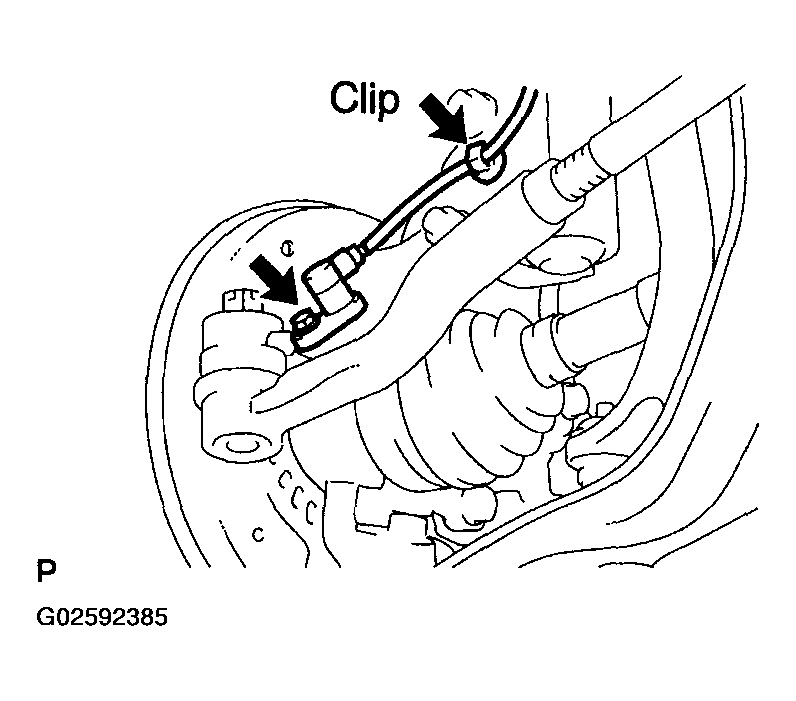

   Fig 4: Installing Front Speed Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the clip to the front shock absorber.
   Fig 5: Installing Clip To Front Shock Absorber

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the speed sensor front clamps to the body and front shock absorber with a bolt A and a bolt B.

   Torque:

   8.0 N.m (82 kgf.cm, 71 in..lbf) (bolt A)

   19 N.m (192 kgf.cm, 14 ft.lbf) (bolt B)

   NOTE: Tighten the bolt B together with the brake flexible hose clamp and speed sensor front clamp. The brake flexible hose clamp should be placed above.
4. Connect the connector of speed sensor front.

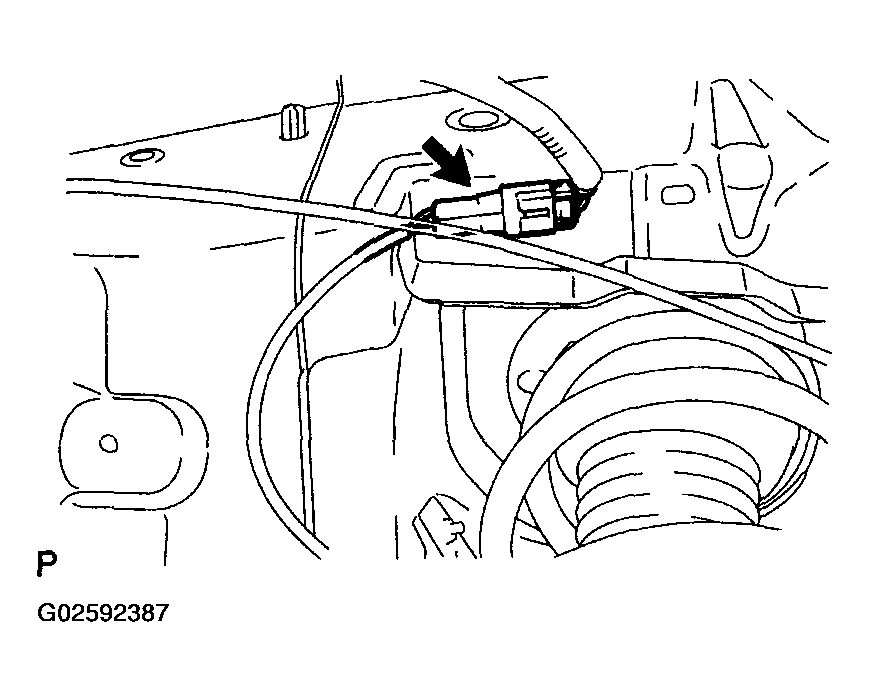

   Fig 6: Connecting Connector Of Speed Sensor Front

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
