Brake Stroke Simulator Cylinder Sub-ASSY: Replacement

REMOVE FR WIPER ARM LH (See WINDSHIELD WIPER MOTOR ASSY )
REMOVE FR WIPER ARM RH (See WINDSHIELD WIPER MOTOR ASSY )
REMOVE HOOD TO COWL TOP SEAL (See WINDSHIELD WIPER MOTOR ASSY )
REMOVE COWL TOP VENTILATOR LOUVER LH (See WINDSHIELD WIPER MOTOR ASSY )
REMOVE COWL TOP VENTILATOR LOUVER RH (See WINDSHIELD WIPER MOTOR ASSY )
REMOVE WINDSHIELD WIPER MOTOR & LINK ASSY (See WINDSHIELD WIPER MOTOR ASSY )
BRAKE CONTROL (ECB) OFF (See REPLACEMENT )
NOTE: Prohibit the brake control (ECB) certainly before bleeding the brake fluid.
REMOVE COWL TOP PANEL SUB-ASSY OUTER FRONT (See REPLACEMENT )
DRAIN BRAKE FLUID
NOTE: Wash brake fluid off immediately if it adheres to any painted surface.
REMOVE BRAKE STROKE SIMULATOR CYLINDER SUB-ASSY
1. Using SST, separate the 2 brake tubes from the brake simulator cylinder sub-assy.
  SST 09023-00101
2. Disconnect the connector.

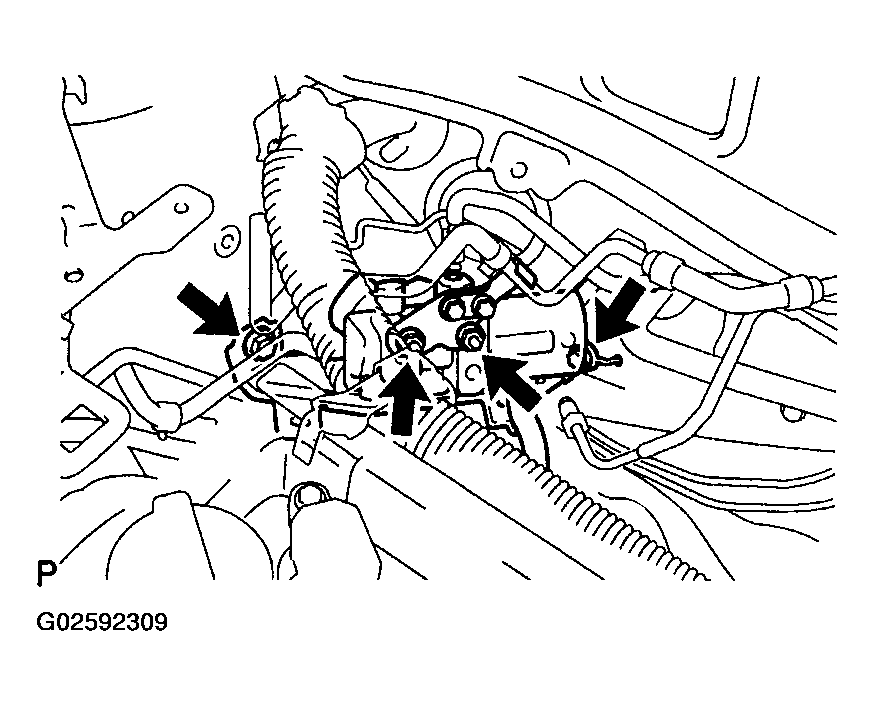

  Fig 1: Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 nuts and 2 bolts, and remove the brake stroke simulator with bracket.

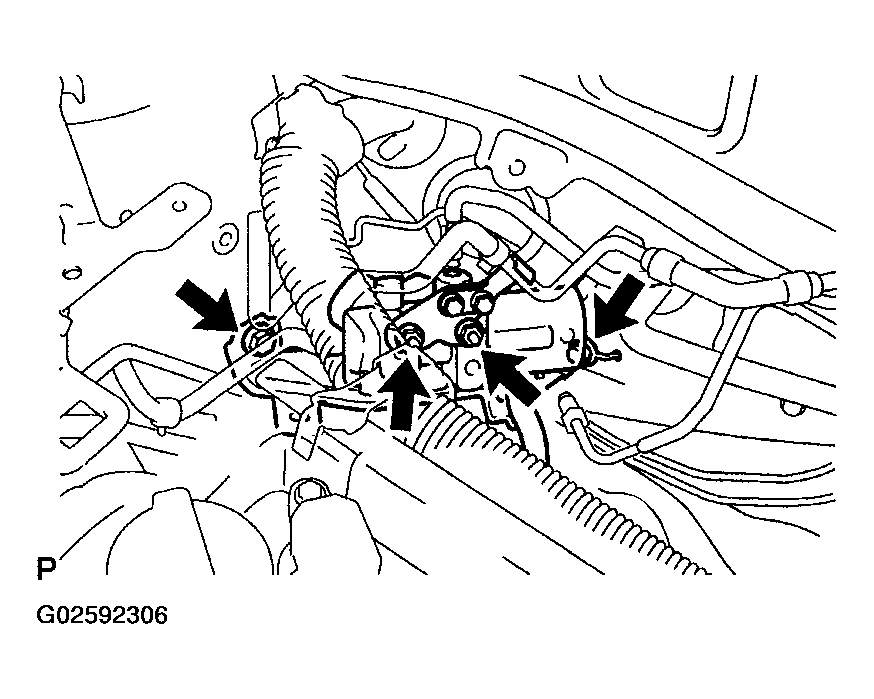

  Fig 2: Removing Brake Stroke Simulator With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 bolts and clamp of connector, and remove the bracket from the brake stroke simulator.
5. Remove the 2 stud bolts from the brake stroke simulator.

  Fig 3: Removing Bracket From Brake Stroke Simulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BRAKE STROKE SIMULATOR CYLINDER SUB-ASSY
1. Install the 2 stud bolts to the brake stroke simulator.
  Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)
2. Install the brake stroke simulator to the bracket with the 2 bolts.
  Torque: 6.0 N.m (61 kgf.cm, 53 in..lbf)
3. Install the connector clamp of brake stroke simulator to the bracket.

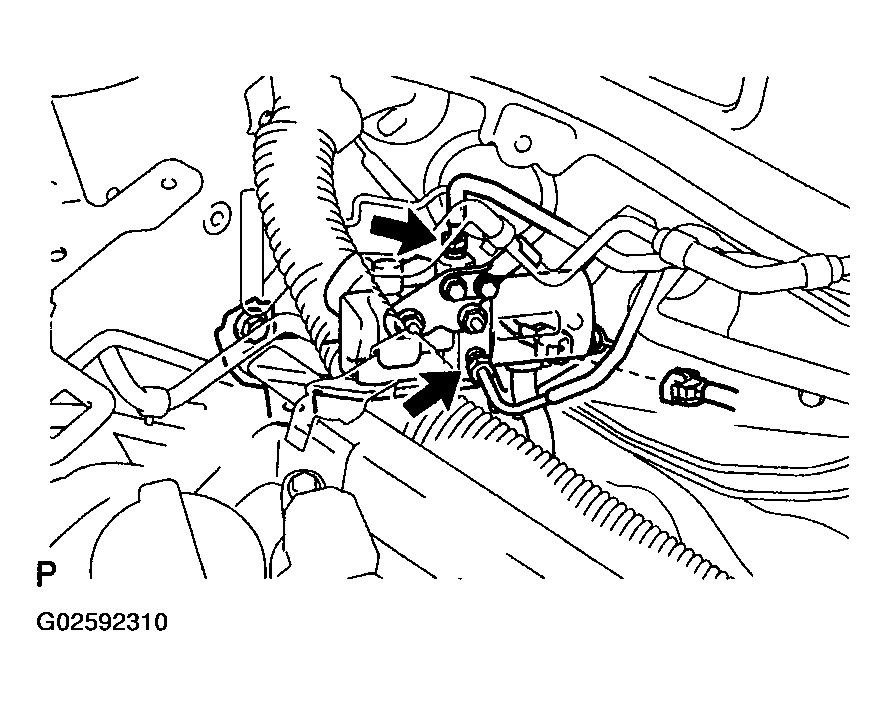

  Fig 4: Installing Brake Stroke Simulator Cylinder Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the brake stroke simulator and bracket to the body with the 2 nuts and 2 bolts.
  Torque: 8.5 N.m (87 kgf.cm, 75 in..lbf)

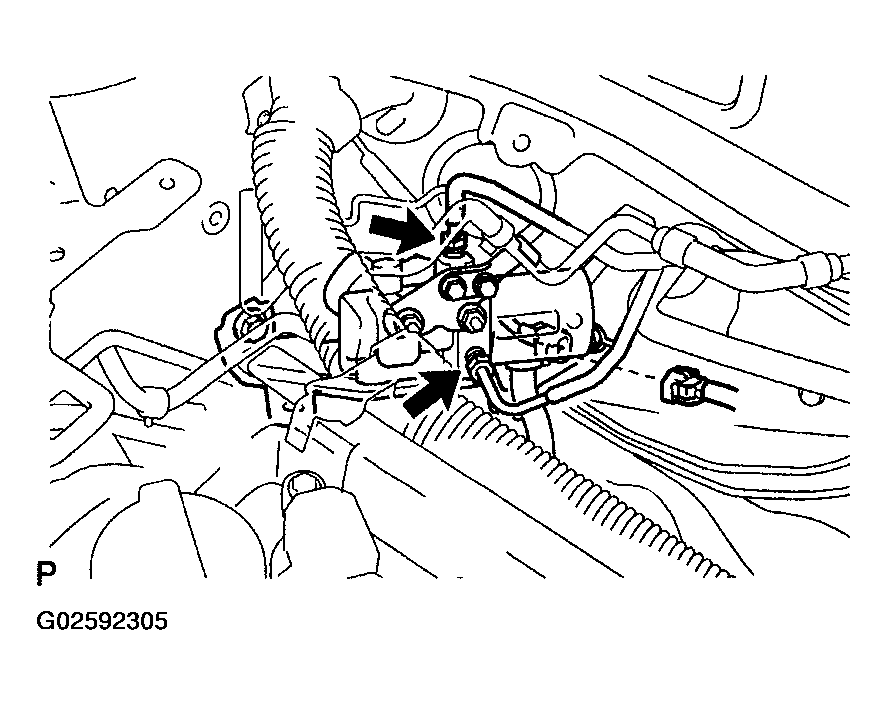

  Fig 5: Installing Brake Stroke Simulator And Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using SST, install the 2 brake tubes to the brake stroke simulator cylinder sub-assy.
  SST 09023-00101

  Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)
6. Connect the connector.

  Fig 6: Installing Brake Tubes To Brake Stroke Simulator Cylinder Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COWL TOP PANEL SUB-ASSY OUTER FRONT (See REPLACEMENT )
INSTALL WINDSHIELD WIPER MOTOR & LINK ASSY (See WINDSHIELD WIPER MOTOR ASSY )
INSTALL FR WIPER ARM LH (See WINDSHIELD WIPER MOTOR ASSY )
INSTALL FR WIPER ARM RH (See WINDSHIELD WIPER MOTOR ASSY )
FILL RESERVOIR WITH BRAKE FLUID (See BRAKE FLUID )
BLEED MASTER CYLINDER/STROKE SIMULATOR (See BRAKE FLUID )
CHECK BRAKE FLUID LEAKAGE
CHECK FLUID LEVEL IN RESERVOIR
CHECK AND CLEAR DTC (See DIAGNOSTIC TROUBLE CODES CHECK/CLEAR )
SYSTEM INITIALIZATION (See INITIALIZATION )
CHECK OPERATION (See BRAKE STROKE SIMULATOR CYLINDER SUB-ASSY )
