Brake Stroke Simulator Cylinder Sub-ASSY: Components

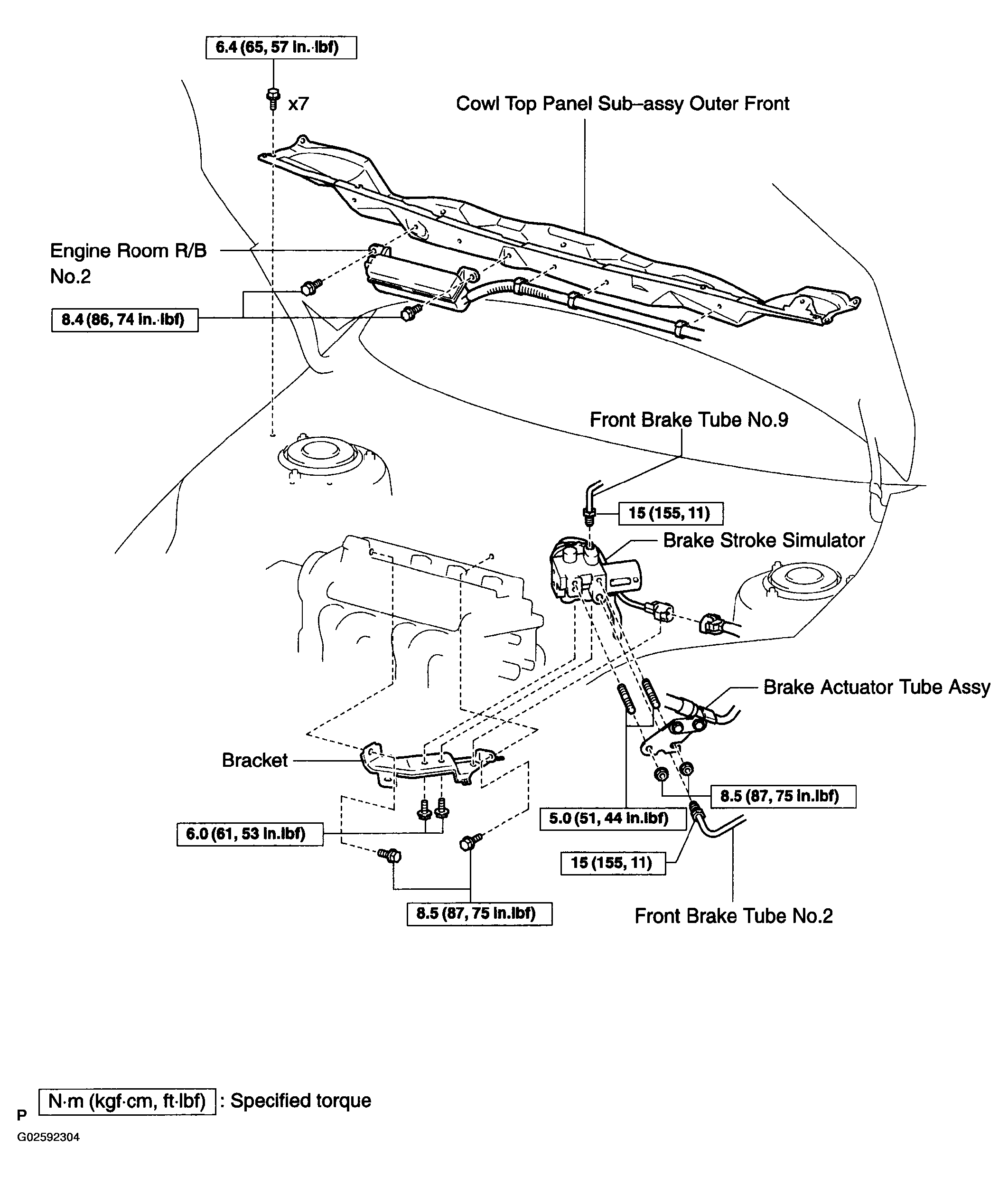

Fig 1: Brake Stroke Simulator Cylinder Sub Assembly And Torque Specifications

G02592304

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
