Brake Pedal: Components

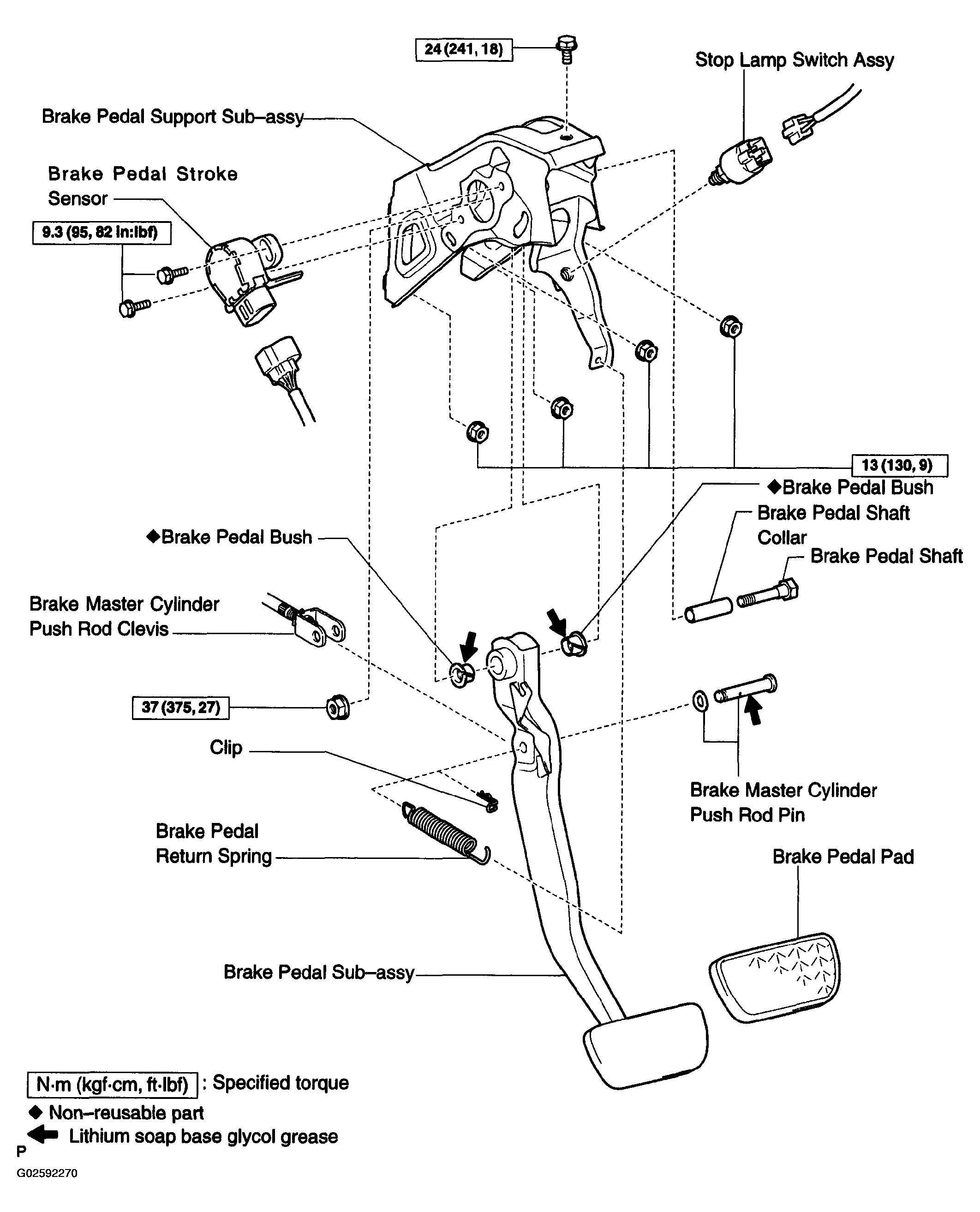

Fig 1: Brake Paddle Components

G02592270

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
