Brake Master Cylinder Sub-ASSY: Components

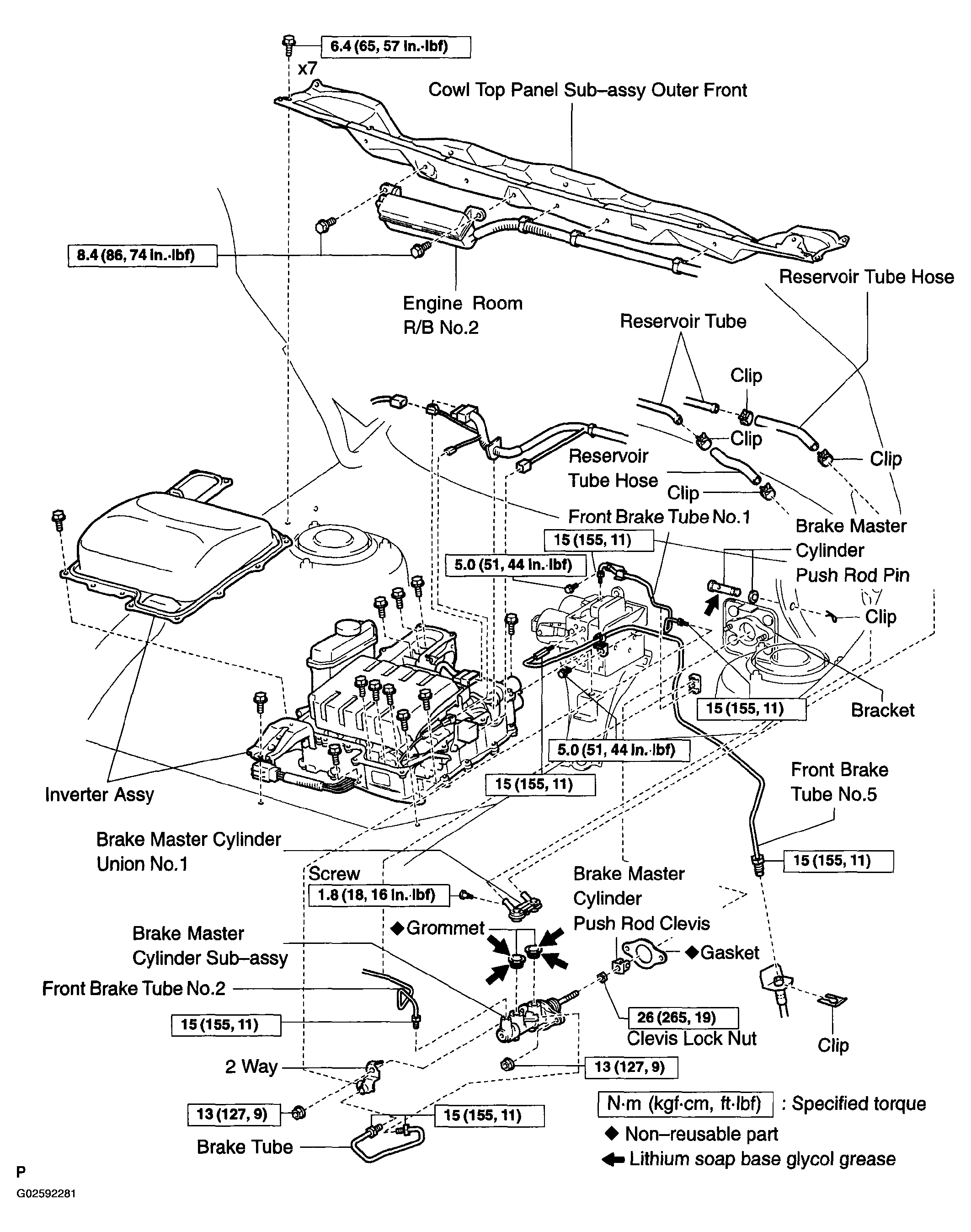

Fig 1: Brake Master Cylinder Sub Assembly Replacement Components With Torque Specifications

G02592281

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
