Diagnostic Trouble Code Chart

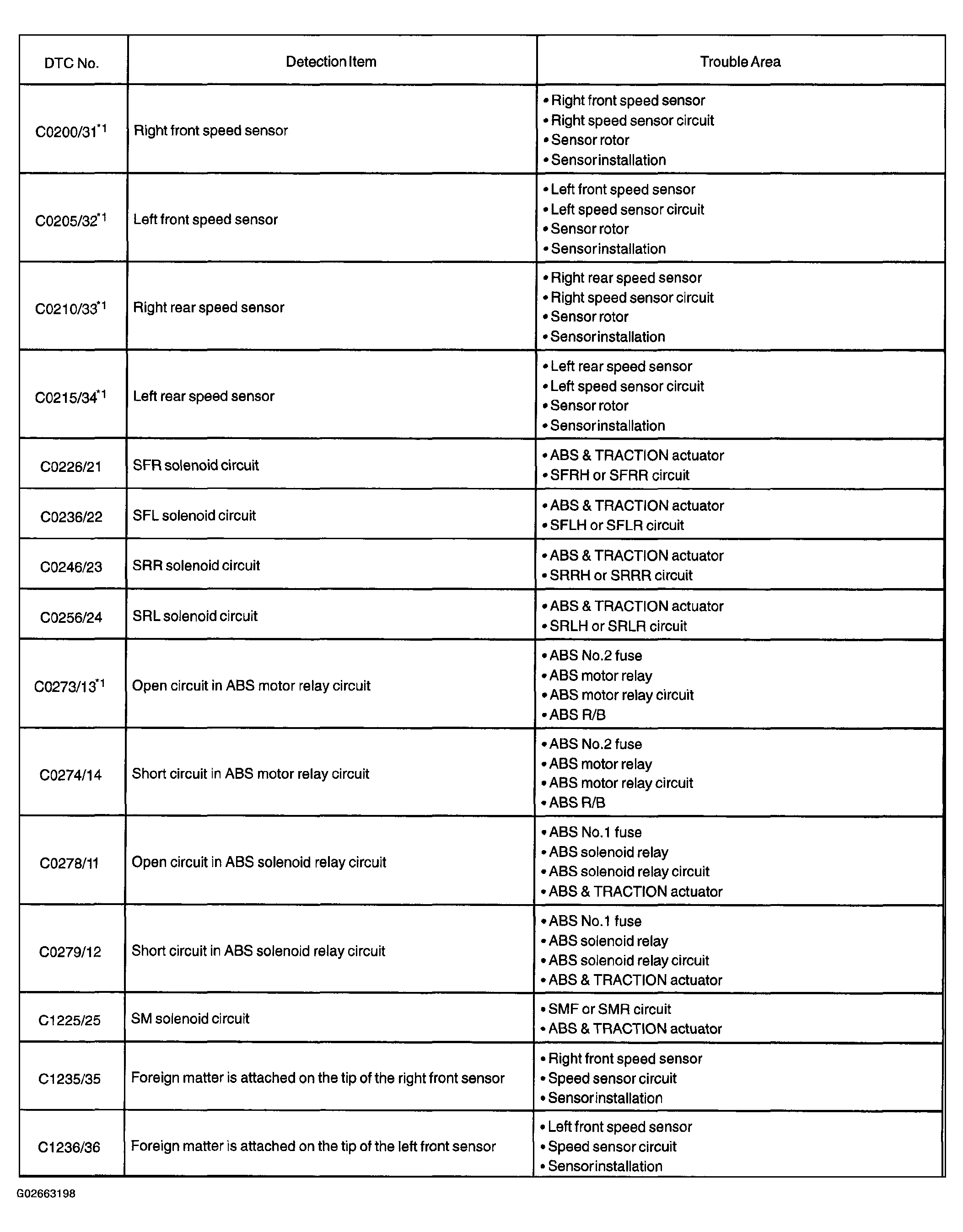

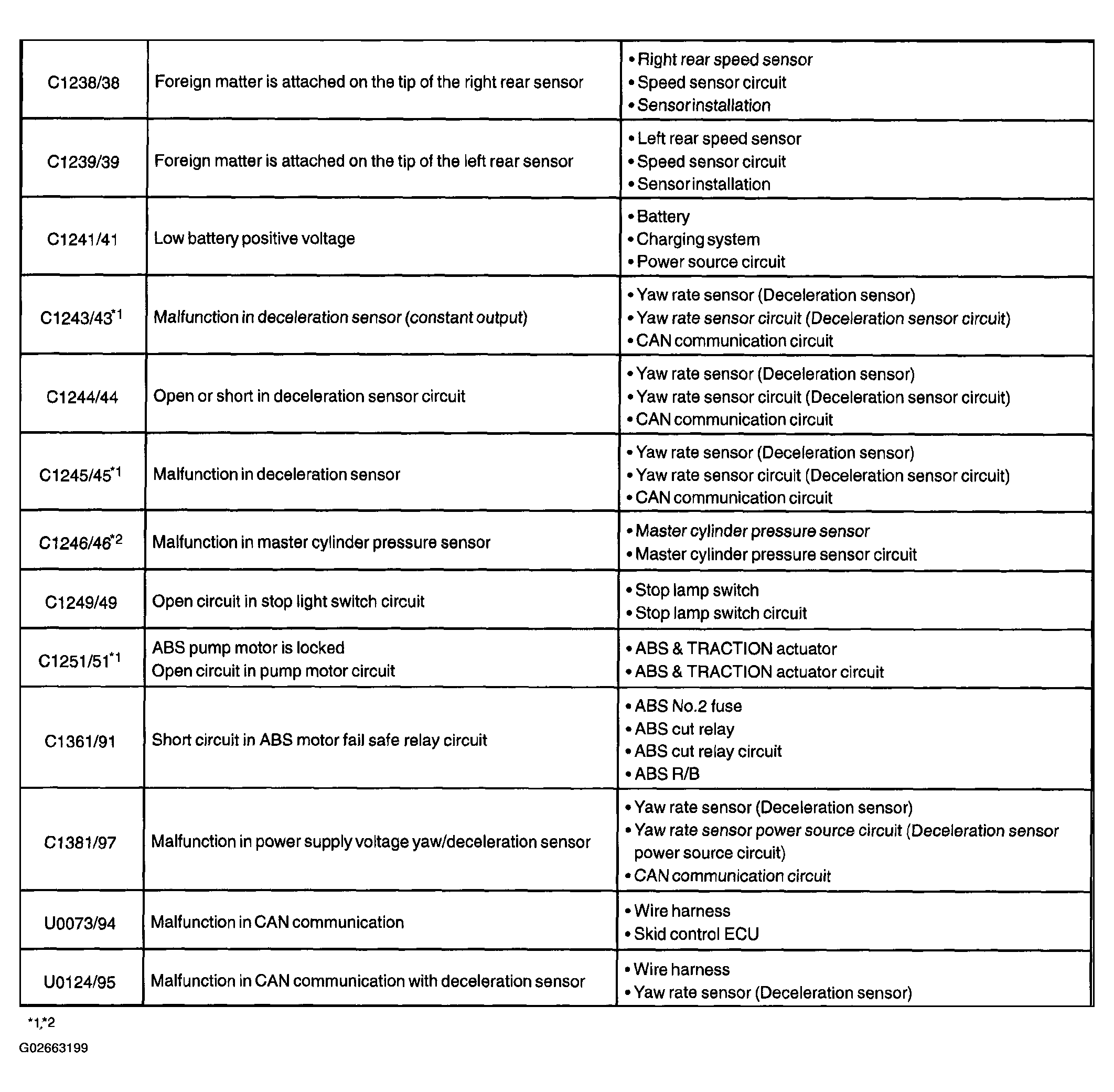

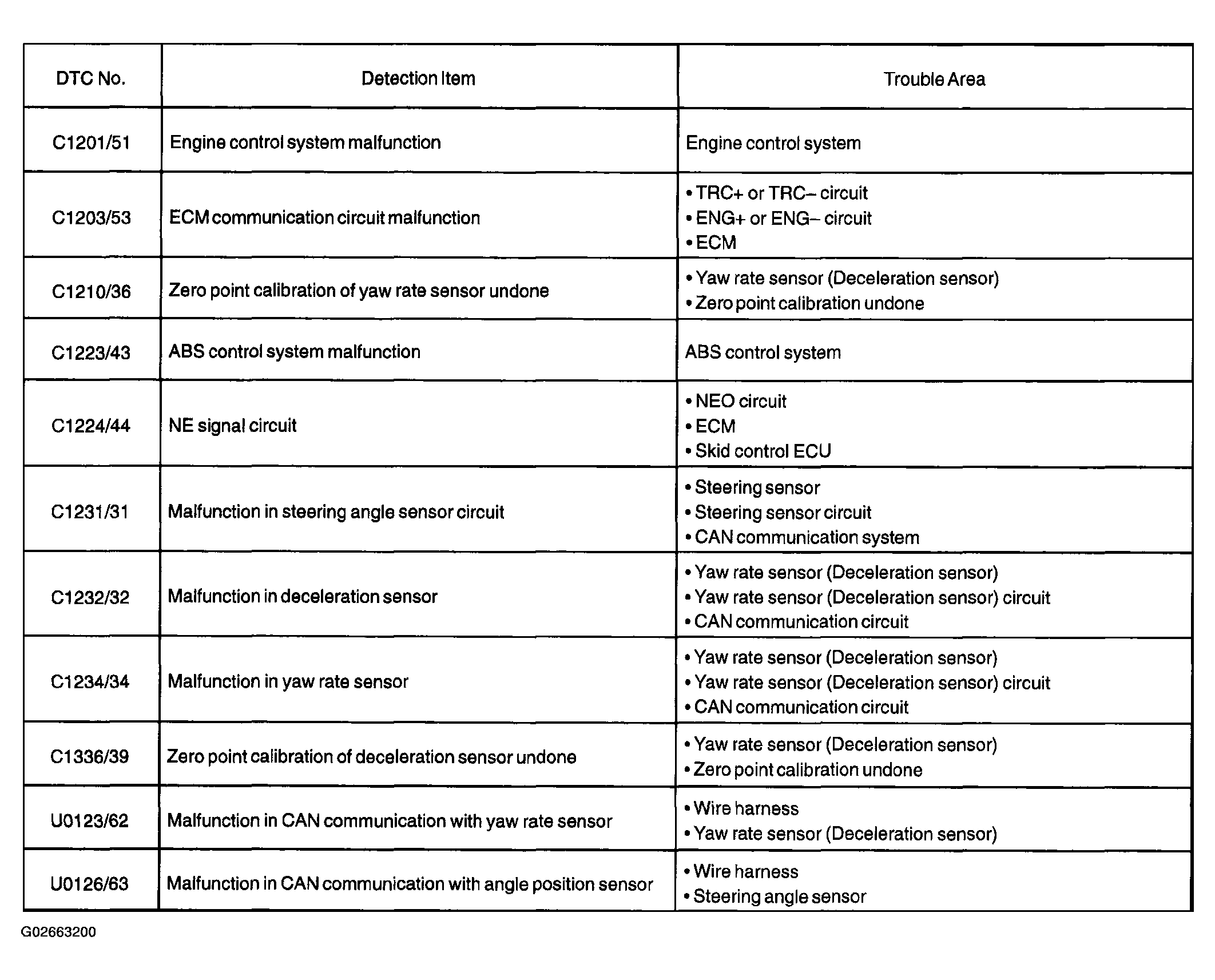

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC C0200/31, C0205/32, C1235/35, C1236/36 | RIGHT/LEFT FRONT SPEED SENSOR & FOREIGN MATTER IS ATTACHED ON TIP OF RIGHT/LEFT FRONT SENSOR |
| DTC C0210/33, C0215/34, C1238/38, C1239/39 | RIGHT/LEFT REAR SPEED SENSOR & FOREIGN MATTER IS ATTACHED ON TIP OF RIGHT/LEFT REAR SENSOR |
| DTC C0226/21, C0236/22, C0246/23, C0256/24, C1225/25 | SFR/SFL/SRR/SRL/SM SOLENOID CIRCUIT |
| DTC C0273/13, C0274/14, C1361/91 | OPEN/B+ SHORT CIRCUIT IN ABS MOTOR RELAY CIRCUIT & SHORT CIRCUIT IN ABS MOTOR FAIL SAFE RELAY CIRCUIT |
| DTC C0278/11, C0279/12 | OPEN/SHORT CIRCUIT IN ABS SOLENOID RELAY CIRCUIT |
| DTC C1201/51 | ENGINE CONTROL SYSTEM MALFUNCTION |
| DTC C1203/53 | ECM COMMUNICATION CIRCUIT MALFUNCTION |
| DTC C1210/36, C1336/39 | ZERO POINT CALIBRATION OF YAW RATE SENSOR UNDONE/DECELERATION SENSOR UNDONE |
| DTC C1223/43 | ABS CONTROL SYSTEM MALFUNCTION |
| DTC C1224/44 | NE SIGNAL CIRCUIT |
| DTC C1231/31 | MALFUNCTION IN STEERING ANGLE SENSOR CIRCUIT |
| DTC C1241/41 | LOW BATTERY POSITIVE VOLTAGE |
| DTC C1246/46 | MALFUNCTION IN MASTER CYLINDER PRESSURE SENSOR |
| DTC C1249/49 | OPEN CIRCUIT IN STOP LIGHT SWITCH CIRCUIT |
| DTC C1251/51 | PUMP MOTOR IS LOCKED/OPEN CIRCUIT IN PUMP MOTOR GROUND |
HINT:
If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, go to the example for the respective "DTC No." in the DTC chart.
Even after the trouble areas are repaired, the ABS warning light will not go off unless the following operations are performed.
- *1:
- Drive the vehicle at 12 mph (20 km/h) for 30 seconds or more and check that the ABS warning light goes off.
- Clear the DTC (see DTC CHECK/CLEAR ).
- *2:
- Keep the vehicle in a stationary condition for 5 seconds or more and depress the brake pedal lightly 2 or 3 times.
- Drive the vehicle at a speed of 31 mph (50 km/h). Then depress the brake pedal strongly for about 3 seconds.
- Repeat the above operations 3 times or more and check that the ABS warning light goes off.
- Clear the DTC (see DTC CHECK/CLEAR ).
HINT:
- In some cases, the hand-held tester cannot be used when the ABS warning light remains on.
- When U0073/94, U0123/62, U0124/95 or U0126/63 are output, inspect and repair the trouble areas indicated by U0073/94, U0123/62, U0124/95 or U0126/63 first.
HINT:
In some cases, the hand-held tester cannot be used when the VSC warning light remains on.
