TS And Cg Terminal Circuit: Wiring Diagram

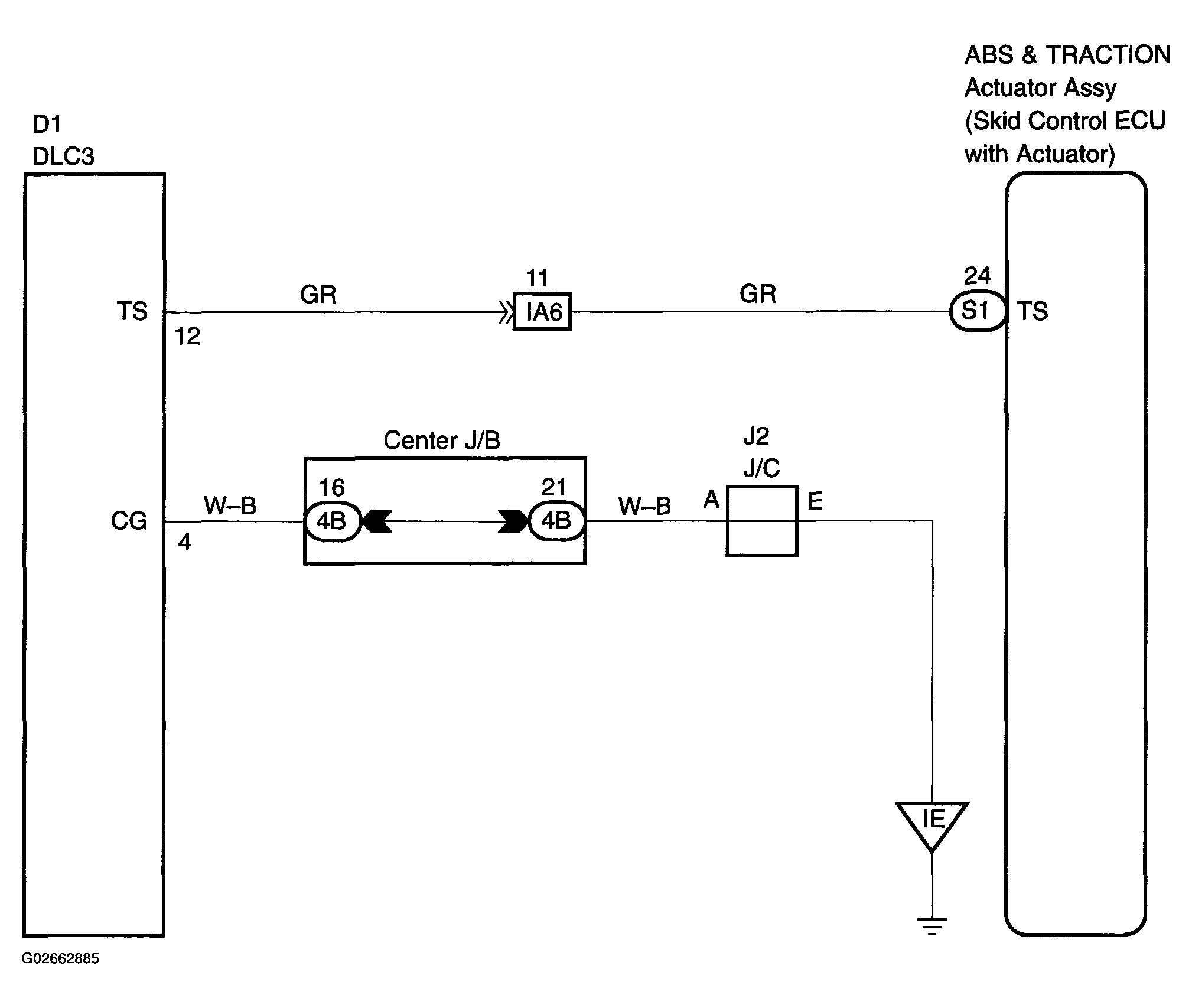

Fig 1: WIRING DIAGRAM TS And CG Terminal Circuit

G02662885

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
