TC And Cg Terminal Circuit: Wiring Diagram

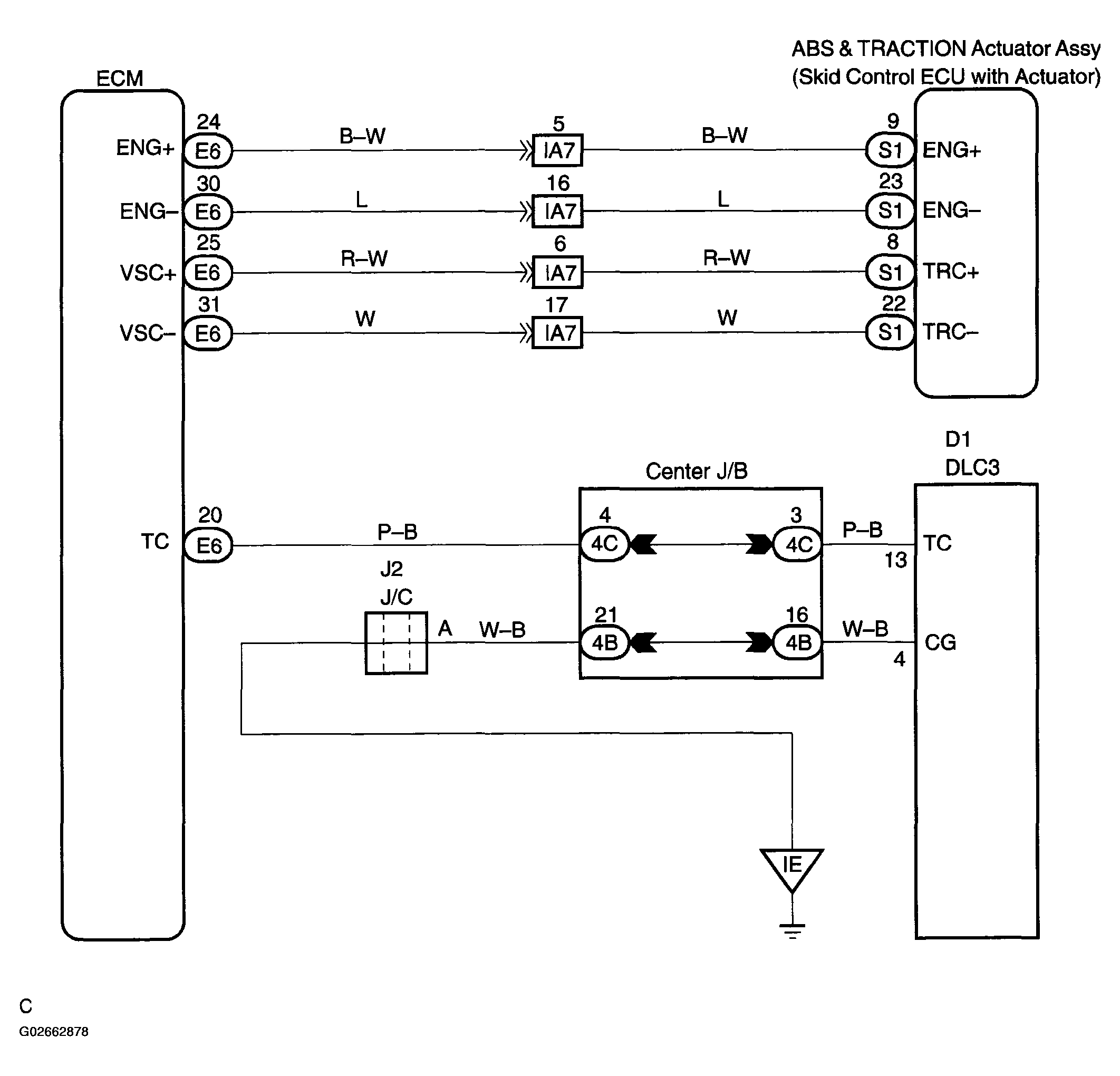

Fig 1: Wiring Diagram - TC And CG Terminal Circuit

G02662878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
