Abs With EBD & BA & TRAC & VSC System: Location

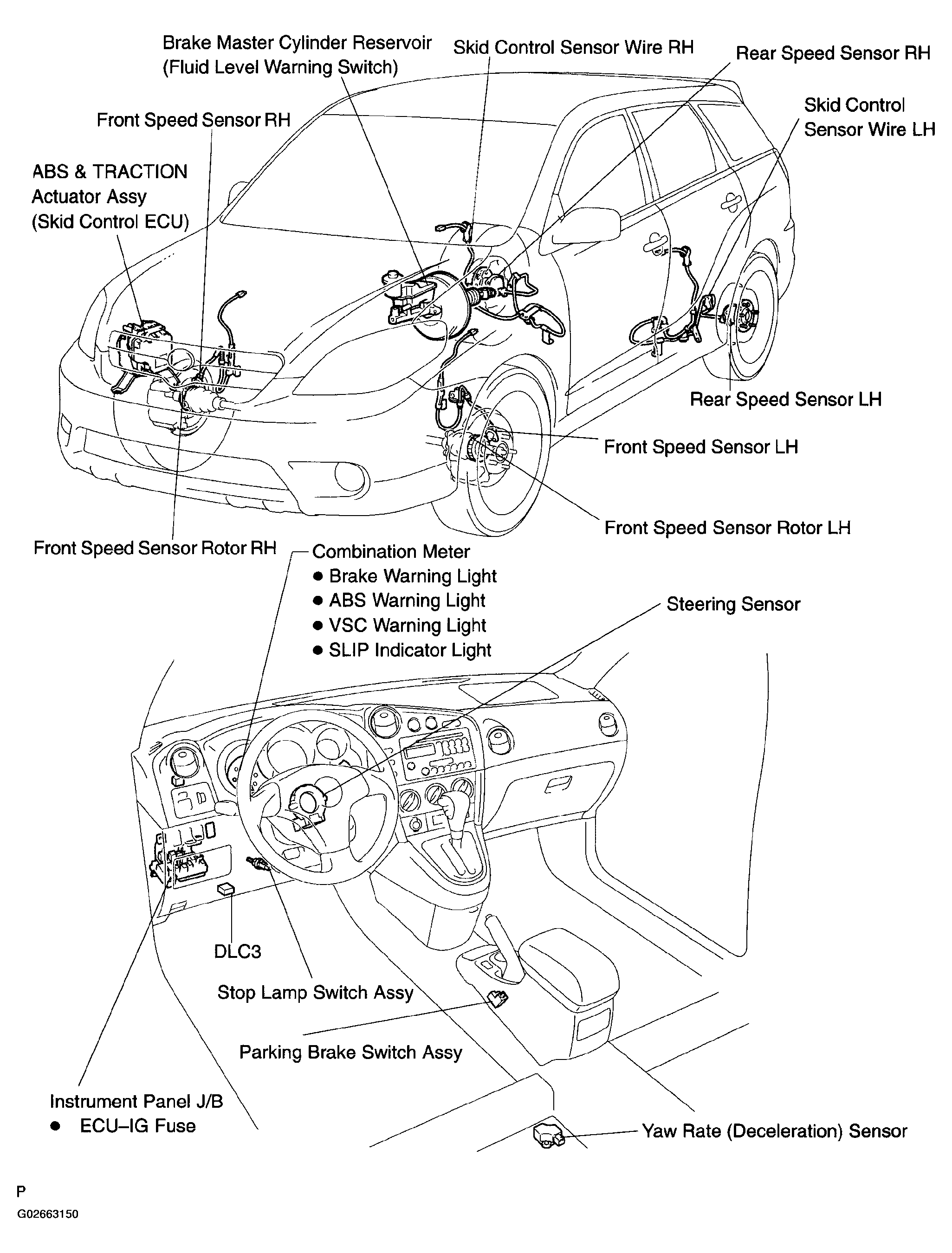

Fig 1: Identifying ABS With EBD & BA & TRAC & VSC System Components Location

G02663150

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
