Circuit Description

The ABS pump motor is located inside the brake actuator. The motor is used for BA, TRAC and VSC operation.

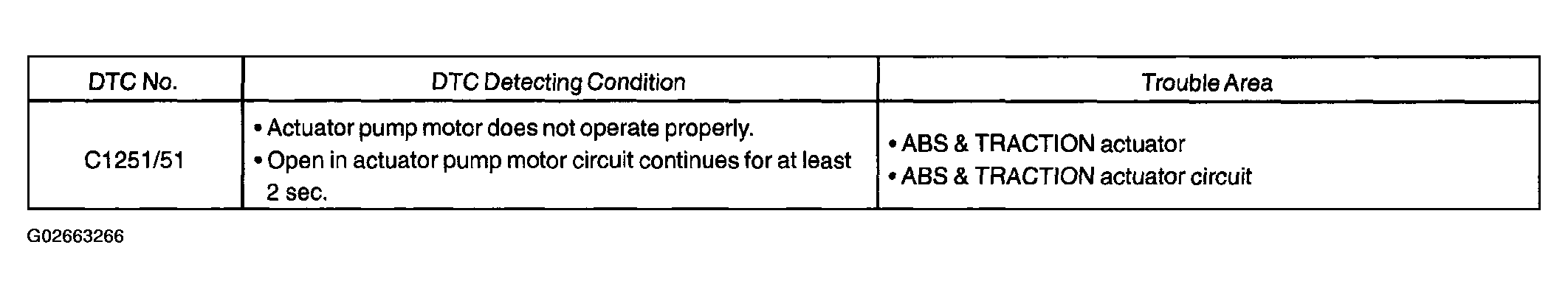

Fig 1: DTC Chart

G02663266

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
