Circuit Description

The master cylinder pressure sensor is connected to the skid control ECU in the actuator.

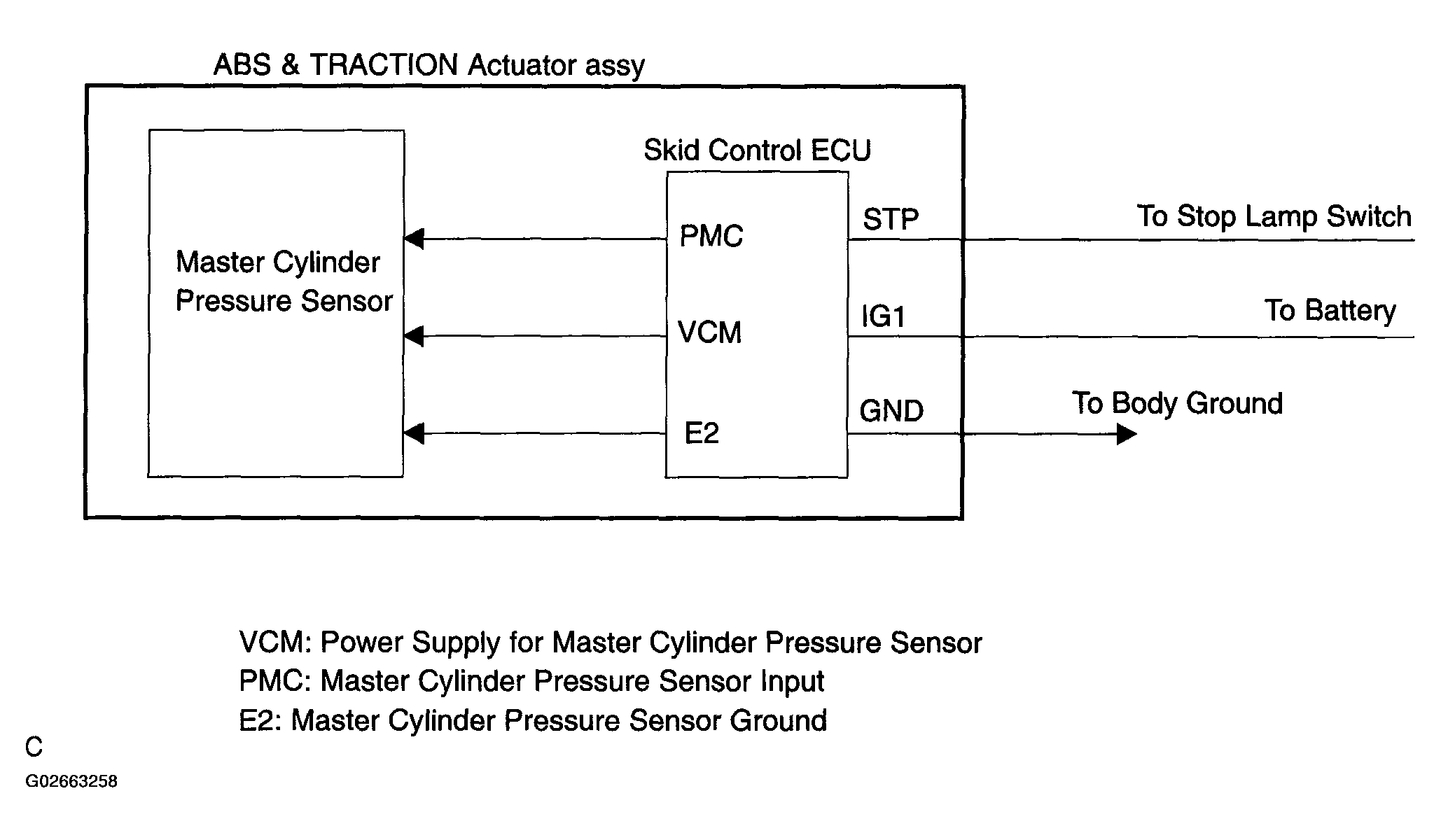

Fig 1: ABS And Traction Actuator Assembly Circuit Diagram
G02663258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

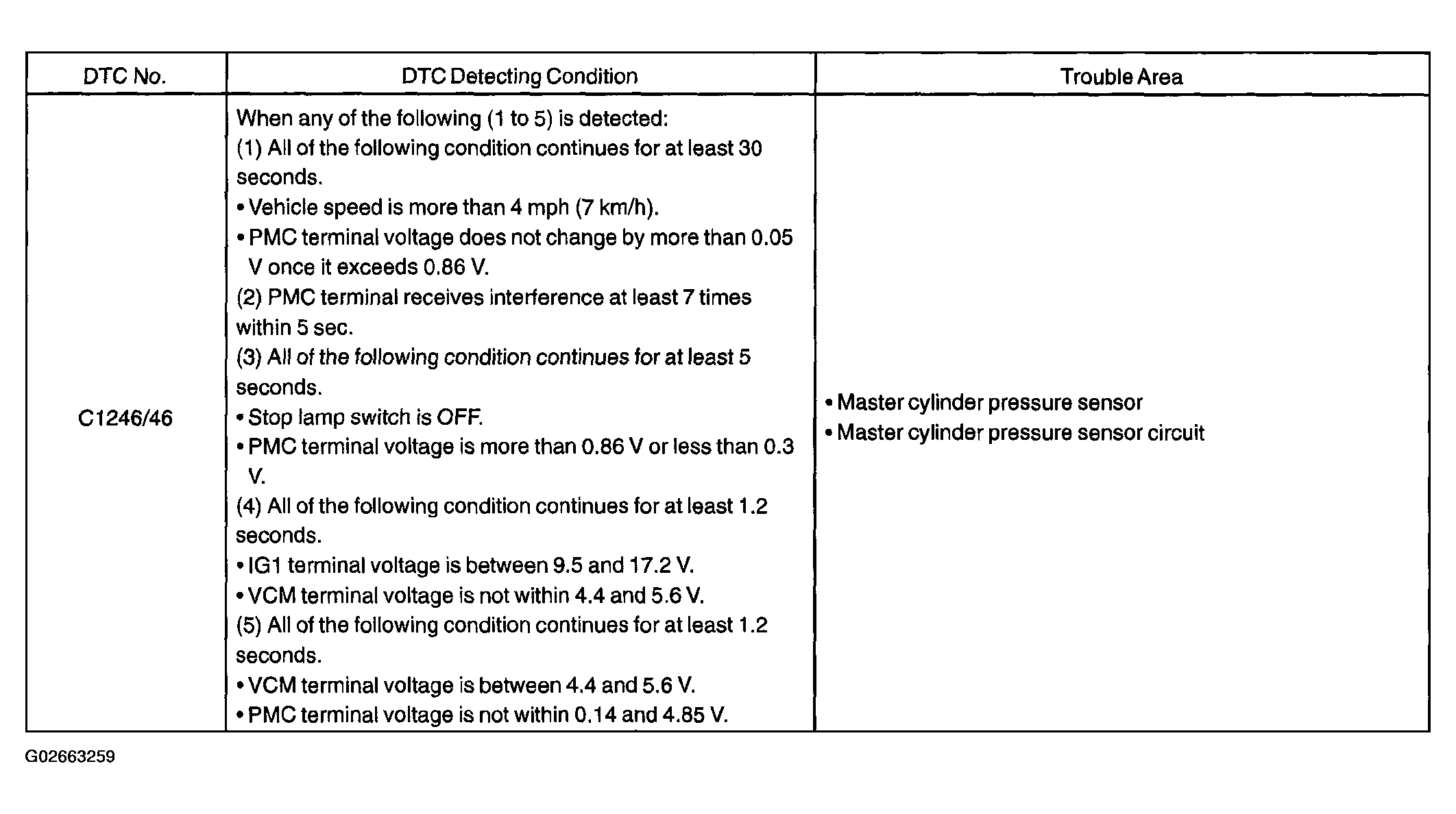

Fig 2: DTC Chart
G02663259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
